1.
Lens cover
2.
Laser rangefinder
3.
Lens focus ring
4.
Digital zoom adjustment ring
5.
Battery compartment
6.
LPS7i battery
7.
Battery compartment cover
8.
Battery protective cover
9.
ON/OFF/Calibration button
10.
UP/REC button
11.
MENU button
12.
DOWN/LRF button
13.
Eyepiece diopter adjustment ring
14.
Tripod adapter (available separately)

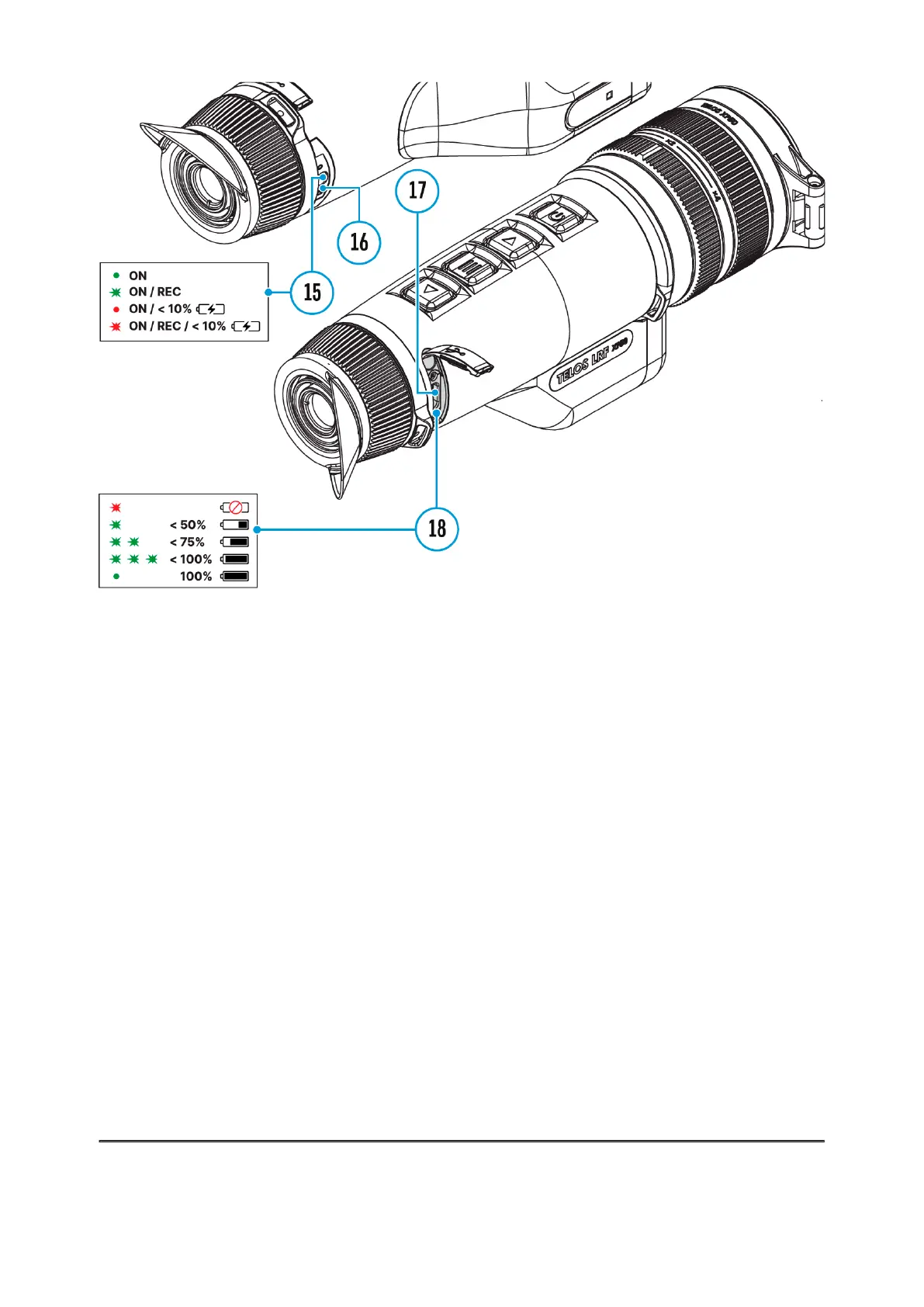

15.
Operation status LED indication
16.
Microphone
17.
USB Type-C connector
18.
LED indication of battery charge in the device
