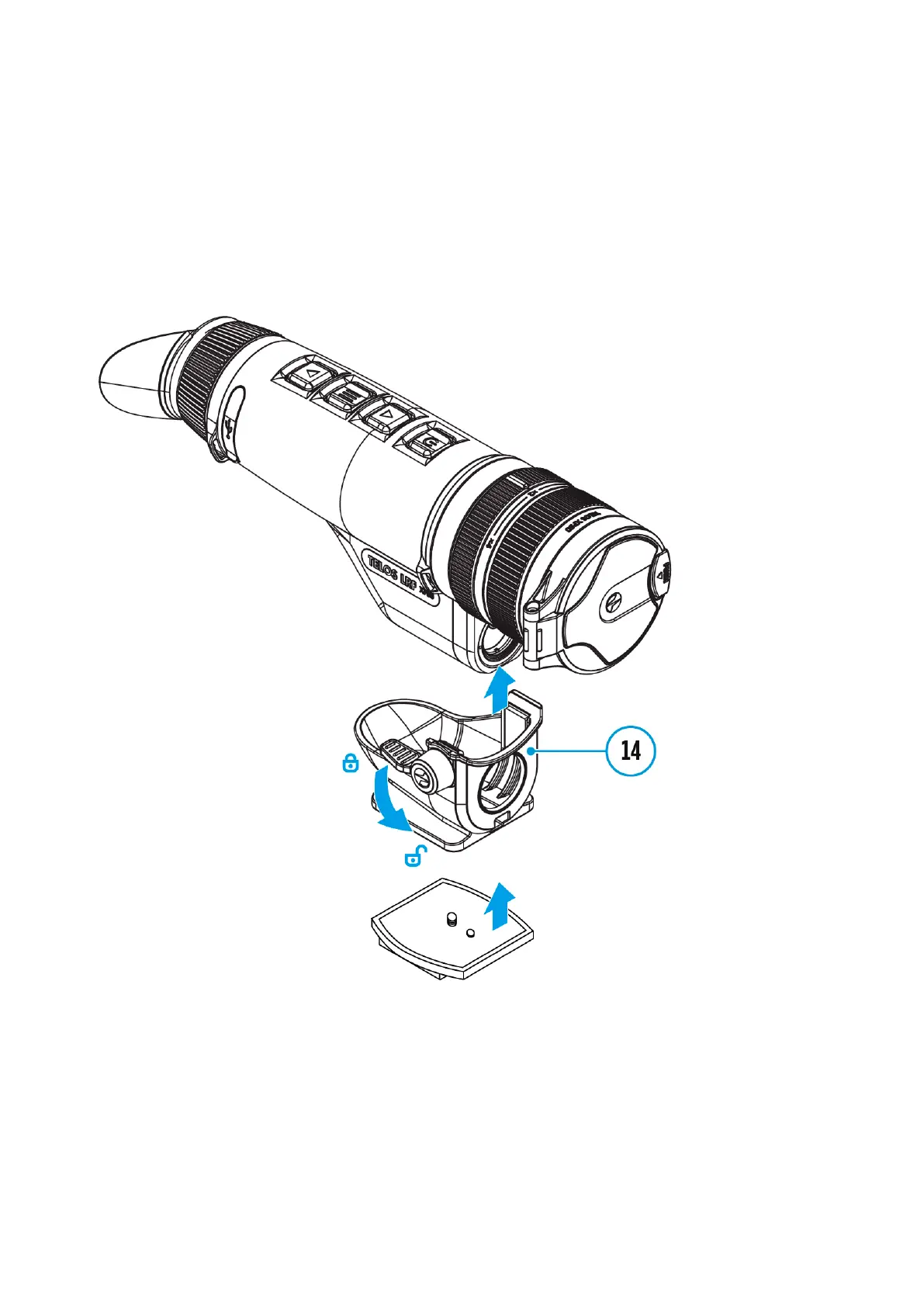

Installing the Device on a
Tripod
1.
Screw the tripod adapter (14) (purchased separately) onto the tripod
mounting plate until it stops.
2.
Attach the mounting plate to the tripod.
3.
Install the Telos LRF device into the tripod adapter (14) so that the
rangefinder lens aligns with the hole on the front of the tripod adapter
(14)
