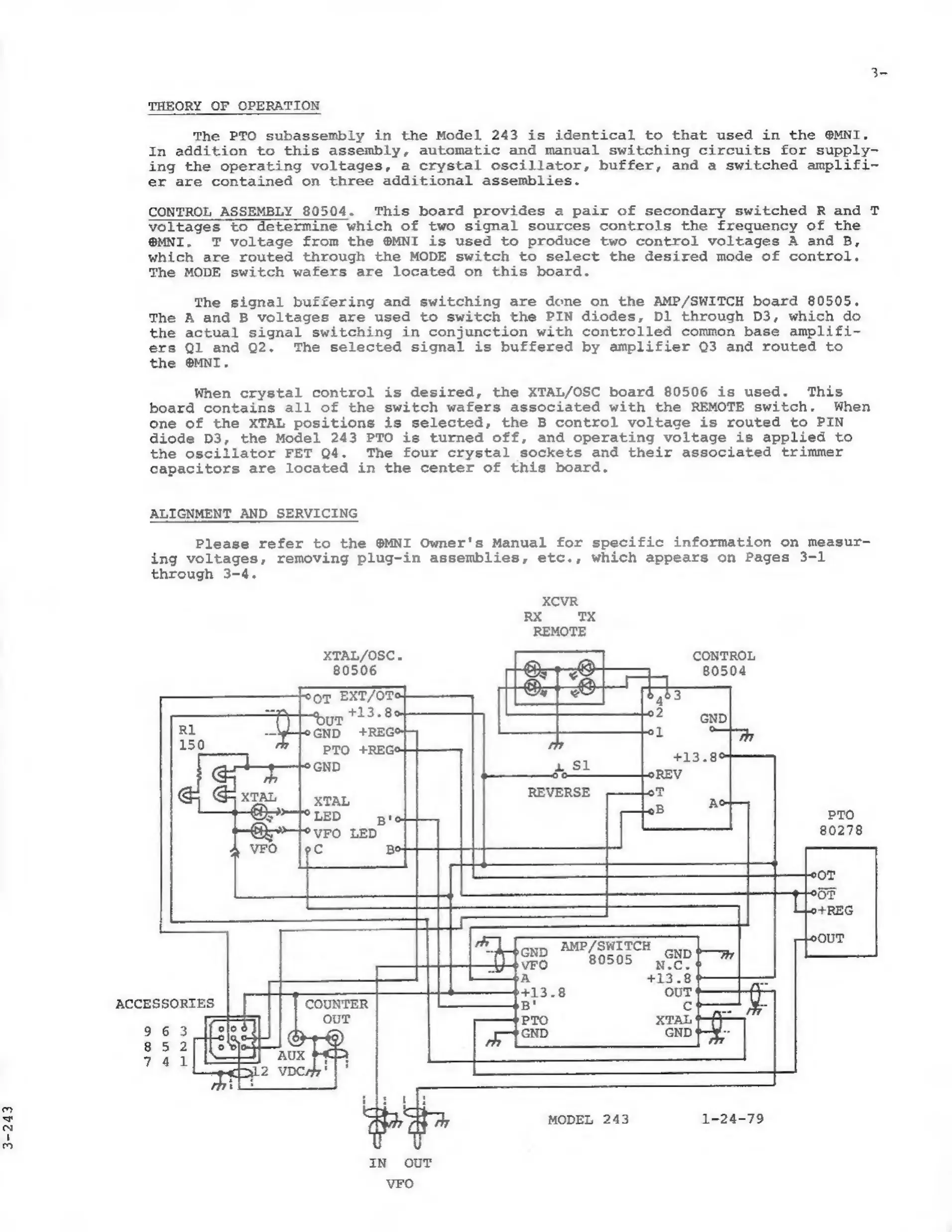

3-243
ACCESSORIES
COUNTER
THEORY
OF
OPERATION
The
PTO
subassembly
in
the
Model
243
is
identical
to
that
used
in
the
@MNI.
In
addition
to
this
assembly,
automatic
and
manual
switching
circuits
for
supply-
ing
the
operating
voltages,
a
crystal
oscillator,
buffer,
and
a
switched
amplifi-
er
are
contained
on
three
additional
assemblies.
CONTROL
ASSEMBLY
80504.
This
board
provides
a
pair
of
secondary
switched
R
and
T
Voltages
to
determine
which
of
two
signal
sources
controls
the
frequency
of
the
@MNI.
T
voltage
from
the
@MNI
is
used
to
produce
two
control
voltages
À
and
B,
which
are
routed
through
the
MODE
switch
to
select
the
desired
mode
of
control.
The
MODE
switch
wafers
are
located
on
this
board.
The
signal
bufíering
and
switching
are
done
on
the
AMP/SWITCH
board
80505.
The
A
and
B
voltages
are
used
to
switch
the
PIN
diodes,
D1
through
D3,
which
do
the
actual
signal
switching
in
conjunction
with
controlled
common
base
amplifi-
ers
Ql
and
Q2.
The
selected
signal
is
buffered
by
amplifier
03
and
routed
to
the
®MNI.
When
crystal
control
is
desired,
the
XTAL/OSC
board
80506
is
used.
This
board
contains
all
of
the
switch
wafers
associated
with
the
REMOTE
switch.
When
one
of
the
XTAL
positions
is
selected,
the
B
control
voltage
is
routed
to
PIN
diode
D3,
the
Model
243
PTO
is
turned
off,
and
operating
voltage
is
applied
to
the
oscillator
FET
Q4.
The
four
crystal
sockets
and
their
associated
trimmer
capacitors
are
located
in
the
center
of
this
board.
ALIGNMENT
AND
SERVICING
Please
refer
to
the
ØMNI
Owner's
Manual
for
specific
information
on
measur-
ing
voltages,
removing
plug-in
assemblies,
etc.,
which
appears
on
Pages
3-1
through
3-4.
XCVR
RX TX
REMOTE
XTAL/OSC
.
80506
CONTROL
80504
b
©GND
+REG®
PTO
HREGO
AMP/SWITCH
PGND
VFO
80505
MODEL
243
