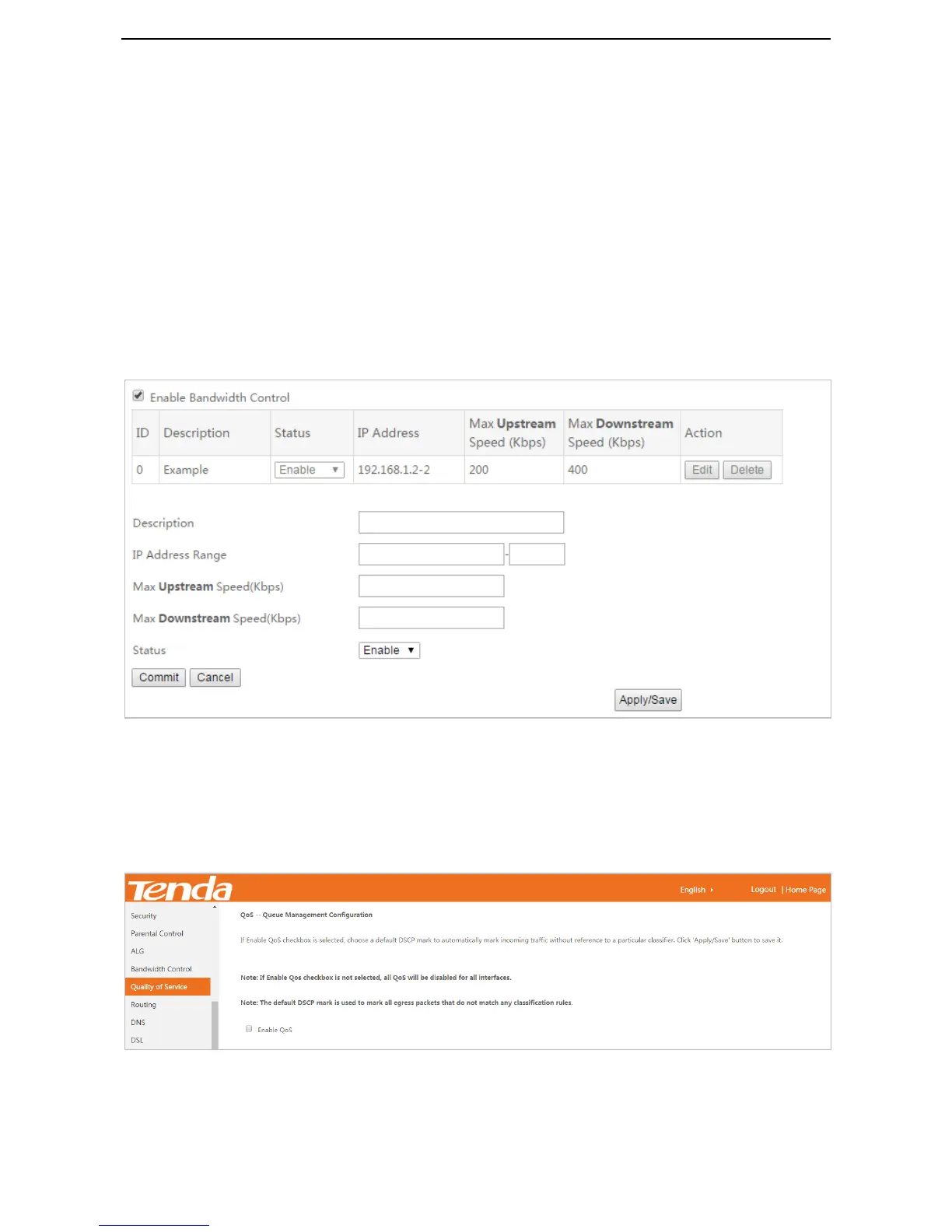

To add a bandwidth control rule, perform the following procedure:
Step 1 Select Enable Bandwidth Control.
Step 2 Specify a name for the rule.
Step 3 Specify an IP address, or an IP address range.
Step 4 Specify a maximum upstream and downstream speed.
Step 5 Select the status for the rule.
Enable: When the Enable is selected, the rule takes effect.
Disable: When the Disable is selected, the rule does not take effect.
Step 6 Click Commit to add the rule to the list.
Step 7 Click Apply/Save to apply the settings.
--End
4.11 Quality of Service
Choose Advanced > Advanced Setup > Quality of Service to enter the configuration page.
If Enable QoS checkbox is selected, choose a default DSCP mark to automatically mark incoming traffic without
reference to a particular classifier.
