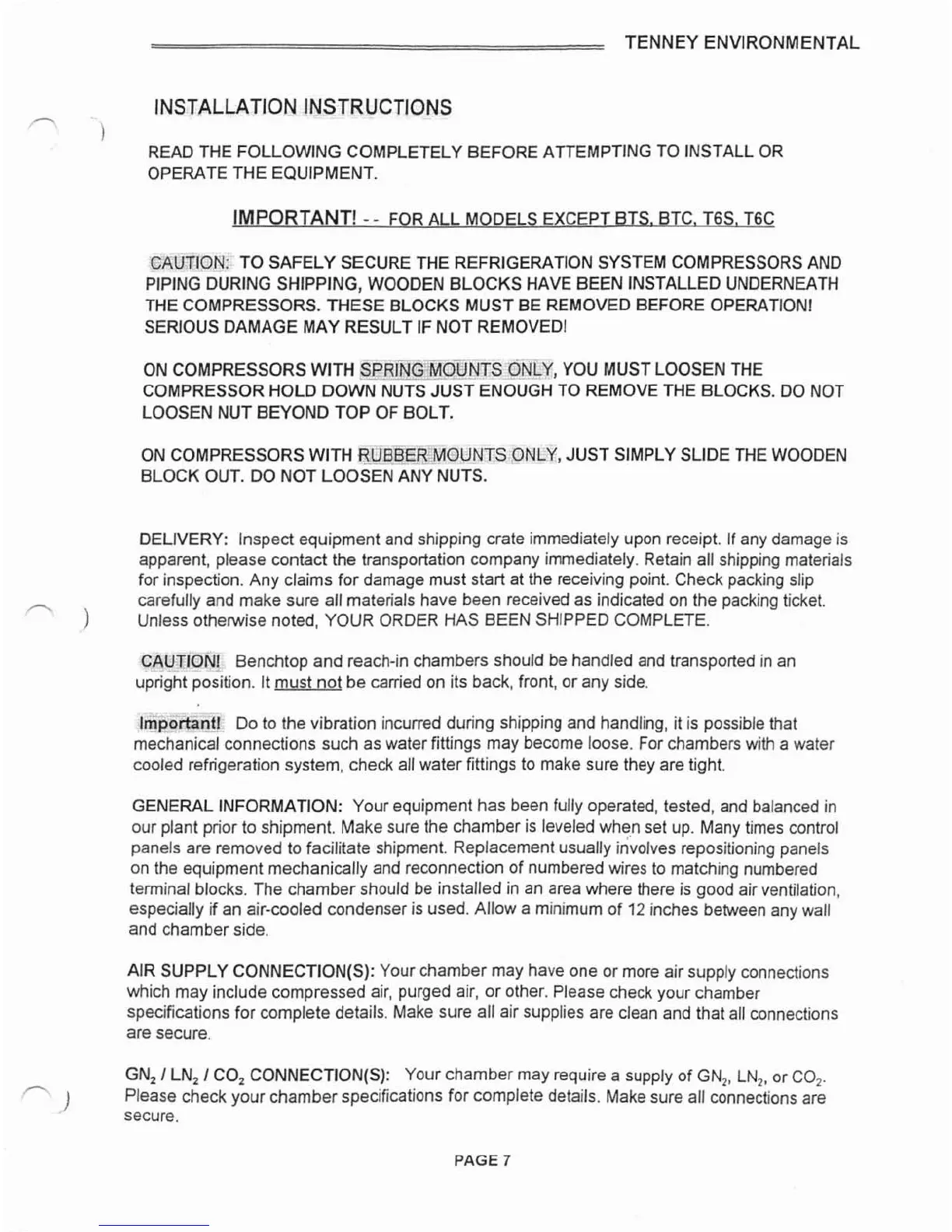

TENNEY ENVIRONMENTAL
INSTALLATION INSTRUCTIONS
READ THE FOLLOWING COMPLETELY BEFORE ATTEMPTING TO INSTALL OR
OPERATE THE EQUIPMENT.
IMPORTANT! - - FOR ALL MODELS EXCEPT BTS. BTC. T6S. T6C
CAUTION: TO SAFELY SECURE THE REFRIGERATION SYSTEM COMPRESSORS AND
PIPING DURING SHIPPING, WOODEN BLOCKS HAVE BEEN INSTALLED UNDERNEATH
THE COMPRESSORS. THESE BLOCKS MUST
BE REMOVED BEFORE OPERATION!
SERIOUS DAMAGE MAY RESULT IF NOT
REMOVED1
ON COMPRESSORS WlTH SPRiNG$lOaNTS ONLY, YOU MUST LOOSEN THE
COMPRESSOR HOLD DOWN NUTS JUST ENOUGH TO REMOVE THE BLOCKS. DO NOT
LOOSEN NUT BEYOND TOP OF BOLT.
ON COMPRESSORS
WlTH RUBEER~OUNTS ONLY, JUST SIMPLY SLIDE THE WOODEN
BLOCK OUT. DO NOT LOOSEN ANY NUTS.
DELIVERY: Inspect equipment and shipping crate immediately upon receipt. If any damage is
apparent, please contact the transportation company immediately. Retain all shipping materials
for inspection. Any claims for damage must start at the receiving point. Check packing slip
carefully and make sure all materials have been received as indicated on the packing ticket.
Unless
othewise noted, YOUR ORDER HAS BEEN SHIPPED COMPLETE.
CAUTION! Benchtop and reach-in chambers should be handled and transported in an
upright position. It must not be carried on its back, front, or any side.
lmpo?tanfi Do to the vibration incurred during shipping and handling, it is possible that
mechanical connections such as water fittings may become loose. For chambers with a water
cooled refrigeration system, check all water fittings to make sure they are
t~ght.
GENERAL INFORMATION: Your equipment has been fully operated, tested. and balanced in
our plant prior to shipment. Make sure the chamber is leveled when set up. Many times control
panels are removed to facilitate shipment. Replacement usually involves repositioning panels
on the equipment mechanically and reconnection Of numbered wires to matching numbered
terminal blocks. The chamber should be installed in an area where there is good air ventilation,
especially if an air-cooled condenser is used. Allow a minimum of
12 inches between any wall
and chamber side.
AIR SUPPLY
CONNECTION(S): Your chamber may have one or more air supply connections
which may include compressed air, purged air, or other. Please check your chamber
specifications for complete details. Make sure all air supplies are clean and that all connections
are secure.
GN,
I LN, I CO, CONNECTION(S): Your chamber may require a supply of GN,, LN,, or CO,.
Please check your chamber specifications for complete details. Make sure all connections are
secure.
