August 2021 Service and Repair Manual
Scissor Components
Part No. 1309020GT GS
â„¢
-30m • 32m • 30 • 32 • 46 • 55 165
9-17
Outdoor Height Limiting
How to Calibrate the Outdoor
Height Limiting
Note: This procedure does not apply to the
following models: GS-1932m XH, GS-1932
XH, GS-2646 XH, GS-3246 XH
Note: Perform this procedure with the machine on
a firm, level surface.
Note: Perform this procedure in an area that is free
of overhead obstructions.

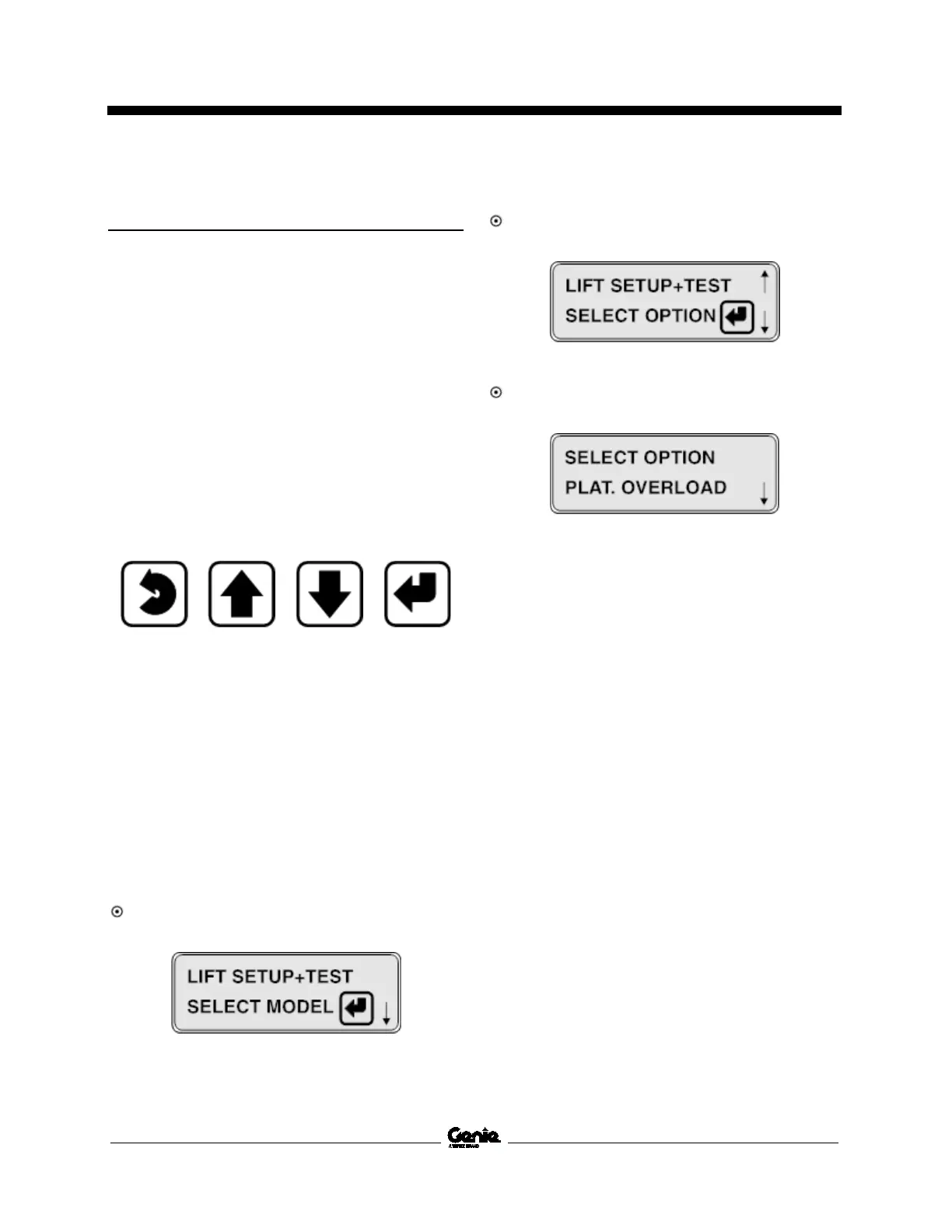

Note: Use the following chart to identify the
description of each LCD screen control button
used in this procedure.
escape
button
scroll up
button
scroll down
button
enter button
1 Attach the end of a 50 ft / 15 m measuring
tape to the side of the platform deck.
2 Turn the key switch to the ground controls
position and pull out the red Emergency Stop
button to the on position at the platform
controls.
3 Press and hold the ground control scroll up
and scroll down buttons.
4 Pull out the red Emergency Stop button to the
on position at the ground controls.
Result: The ground control LCD display will
show the following.
5 Press the scroll down button.
Result: The ground control LCD display will
show the following.
6 Press the enter button.
Result: The ground control LCD display will
show the following.
7 Use the scroll down button to scroll to OHL
CALIBRATION. Press the enter button.
8 When the LCD displays RAISE TO
OUTDOOR HEIGHT LIMIT, press the enter
button.
9 Fully elevate the platform until it stops.
To Next Page
