June 2021 Service and Repair Manual

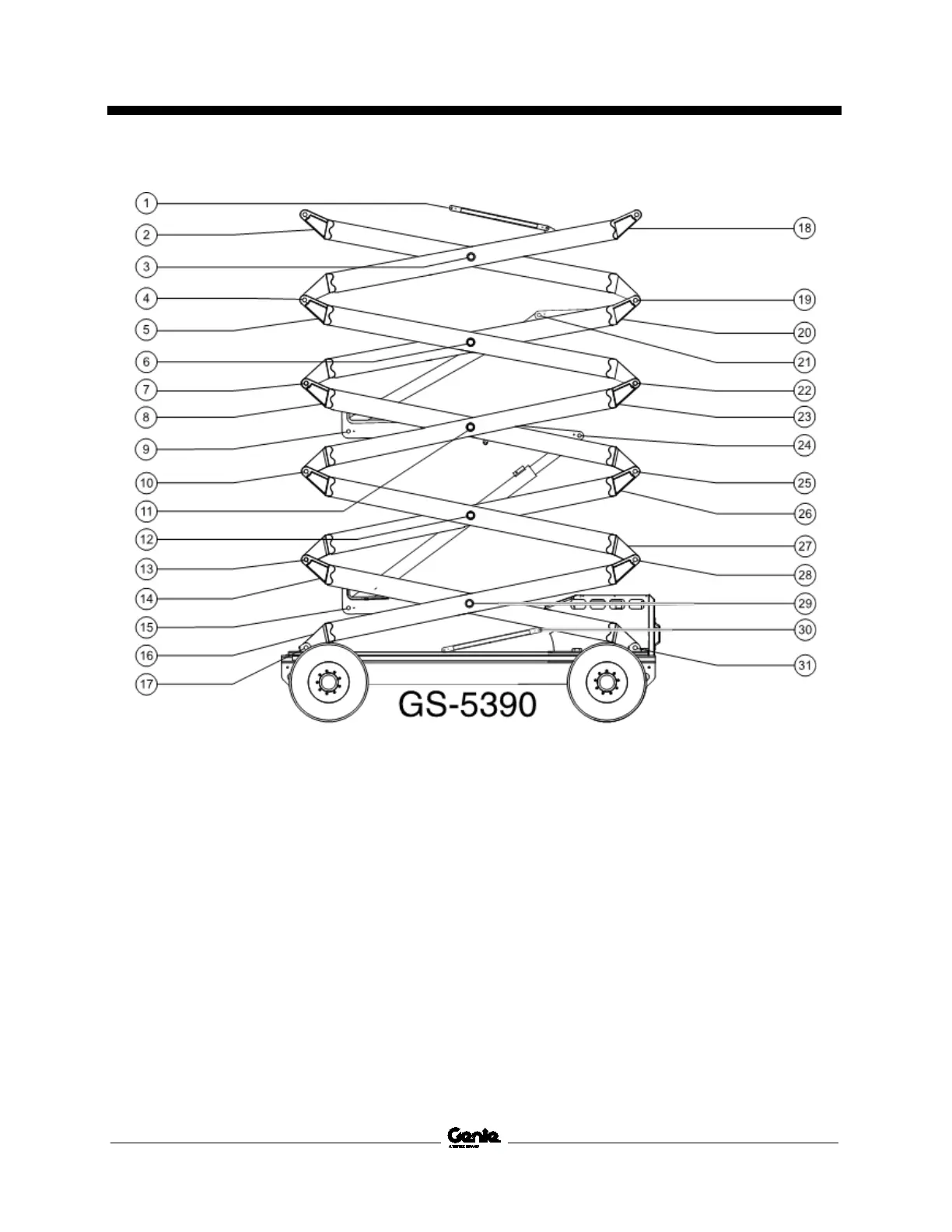

Scissor Components
Part No. 1306587GT GS
™
-84 • GS
™
-90 35
Non
-steer End
Steer End
1 Platform centering link
2 Number 5 inner arm
3 Number 5 center pivot pin (Qty. 2)
4 Number 5 pivot pin (non-steer end)
5 Number 4 outer arm
6 Number 4 center pivot pin (Qty. 2)
7 Number 4 pivot pin (non-steer end)
8 Number 3 inner arm
9 Upper lift cylinder barrel-end pivot pin
10 Number 3 pivot pin (non-steer end)
11 Number 3 center pivot pin (Qty. 2)
12 Number 2 center pivot pin (Qty. 2)
13 Number 2 pivot pin (non-steer end)
14 Number 1 inner arm
15 Lower lift cylinder barrel-end pivot pin
16 Number 1 outer arm
17 Number 1 pivot pins (non-steer end)
18 Number 5 outer arm
19 Number 5 pivot pin (steer end)
20 Number 4 inner arm
21 Upper lift cylinder rod-end pivot pin
22 Number 4 pivot pin (steer end)
23 Number 3 outer arm
24 Lower lift cylinder rod-end pivot pin
25 Number 3 pivot pin (steer end)
26 Number 2 inner arm
27 Number 2 outer arm
28 Number 2 pivot pin (steer end)
29 Number 1 center pivot pin (Qty. 2)
30 Chassis centering link
31 Number 1 pivot pins (steer end)
