4. SPECIFICATIONS
Display : 3-1/2 digits. Max. indication 1999
Range : 200/2000 milli Gauss
20/200 micro Tesla
Resolution : 0.1/1 milli Gauss
0.01/0.1 micro Tesla
Number of Axis : Single axis
Band Width : 30 Hz to 300 Hz
Accuracy : ±
±±
± (3%+3d) at 50Hz or 60HZ
Over-Input : Display shows “OL”
Sampling Time : Approx. 0.4 second
Battery : 4 pcs size AAA (Only Use Alkaline Battery)
Battery Life : Approx. 60 hours.
Operating Temp
and Humidity : 0 ℃
℃℃
℃ to 40 ℃
℃℃
℃ (32 ℉
℉℉
℉ to 104 ℉
℉℉
℉ ) below 80%RH
Storage Temp
and Humidity : -10 ℃
℃℃
℃ to 60 ℃
℃℃
℃ below 70%RH
Weight : Approx. 165g
Dimension : 111(L) × 64 (W) × 34(H) mm
Accessories Included : Operation manual , RS-232 cable ,
CD software ,4 pcs size AAA (Alkaline
Battery) .
-2-

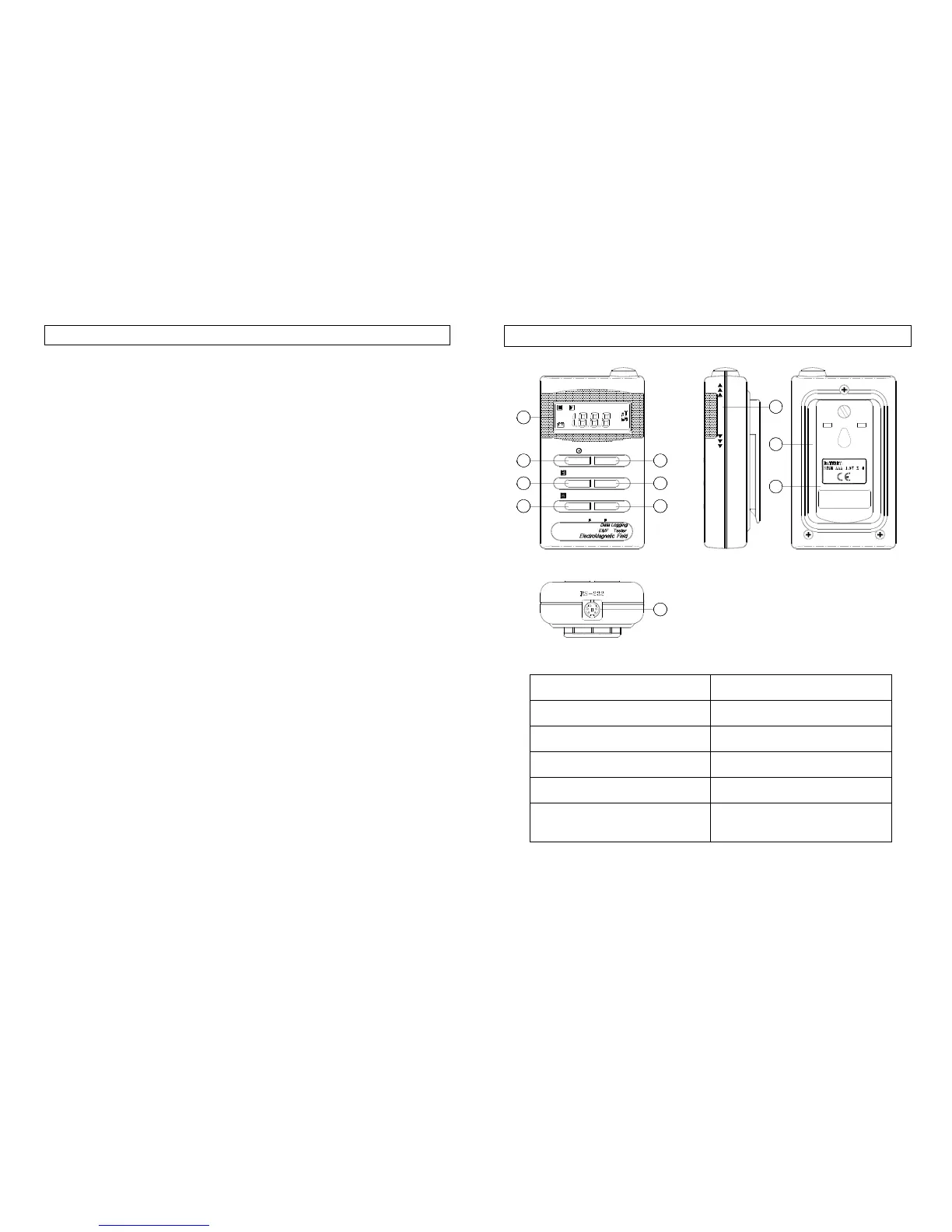

5. NAME OF PARTS AND POSITIONS
Range
Range 0.1m ~ 1999m Gauss
0.01 ~ 199.9 Tesla
1
2
3
4 7
6
5
S
e
n
s
o
r
P
o
s
i
t
i
o
n
9
10
8
11
Data Hold Record
Gauss / TeslaPeak Hold
1). Display panel 7). LCD state record button
2). Power button 8). Sensor position
3). Peak Hold function 9). Battery cover
4). Data Hold function 10). Carrying clip
5). Range selector button 11). RS-232
6). Milli Gauss/Micro Tesla
button
