Operation
Testboy
®
TV 700 13
Certificate of quality
All activities and processes carried out within Testboy GmbH relating to quality are monitored permanently within
the framework of a Quality Management System. Furthermore, Testboy GmbH confirms that the testing equipment
and instruments used during the calibration process are subject to a permanent inspection process.
Declaration of conformity
The product conforms to the actual directives. For more detailed information go to www.testboy.de
Operation
Thank you for purchasing the Testboy
®
TV 700.
The scanner is specifically for locating metal, wood and live wires in walls, ceilings and floors. Developed for
professional application in installation firms and, for do-it-yourself requirements, also barely imaginable not to be
included. The instrument has an informative LC display, with indication in centimetres, bar display and crosshair. There
is also a traffic light indication in the top part. The measurement is accompanied by an acoustic signal encoder.
WARNING
The Testboy
®
TV 700 cannot ensure one hundred percent reliability. The measurement results can be
influenced by different variables, such as: Consistency of the plaster, moisture, static charging of the
surface, metal particles in the material or calibration deviations. Before drilling each time, make sure by
using other sources of information (building plans, statics, circuit diagrams etc.).

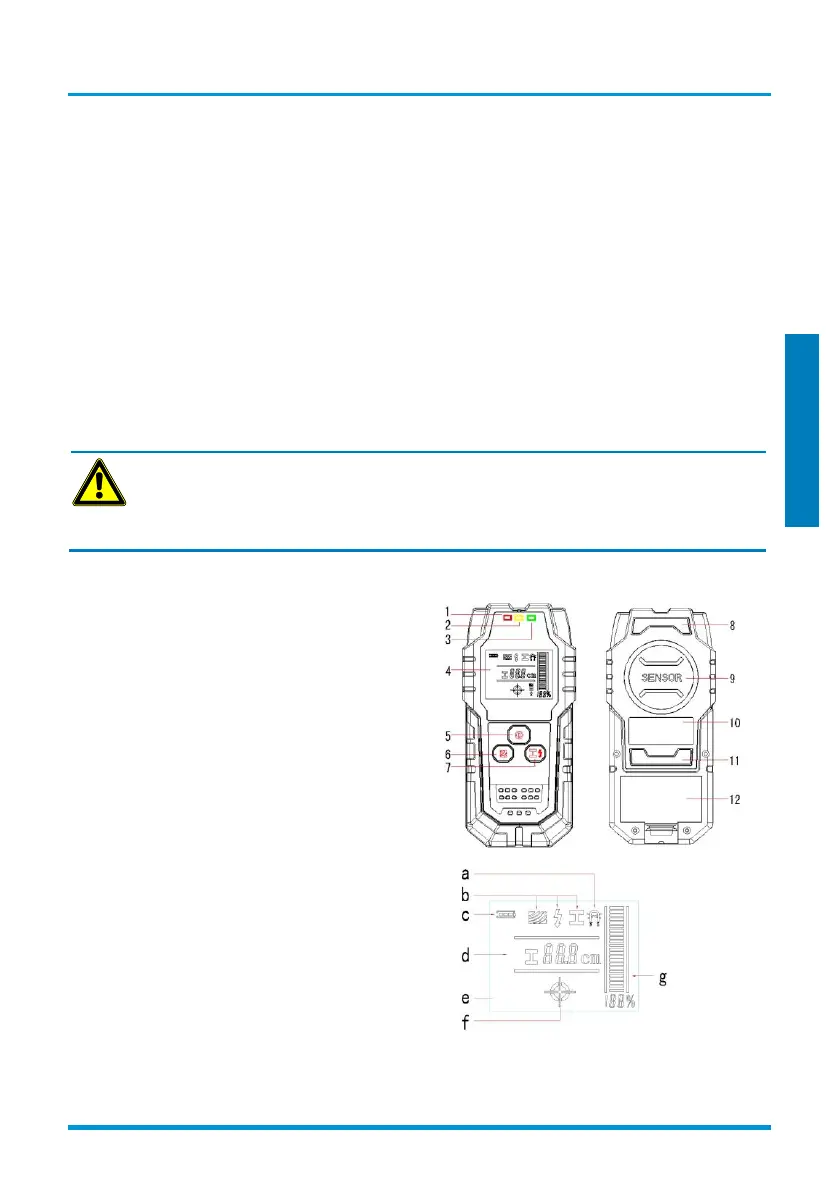

Operating and display elements
1 LED Red
2 LED Yellow
3 LED Green
4 LC display
5 On/Off button
6 Button for locating wood
7 Button for metallic/live wires
8 Slip pad
9 Sensor area
10 Nameplate
11 Slip pad
12 Battery compartment
a. Display for magnetic or non-magnetic material
b. Measuring range: Wood / voltage / metal
c. Battery status indication
d. Depth indication in cm
e. Indication area with backlighting
f. Crosshair
g. Bar display
