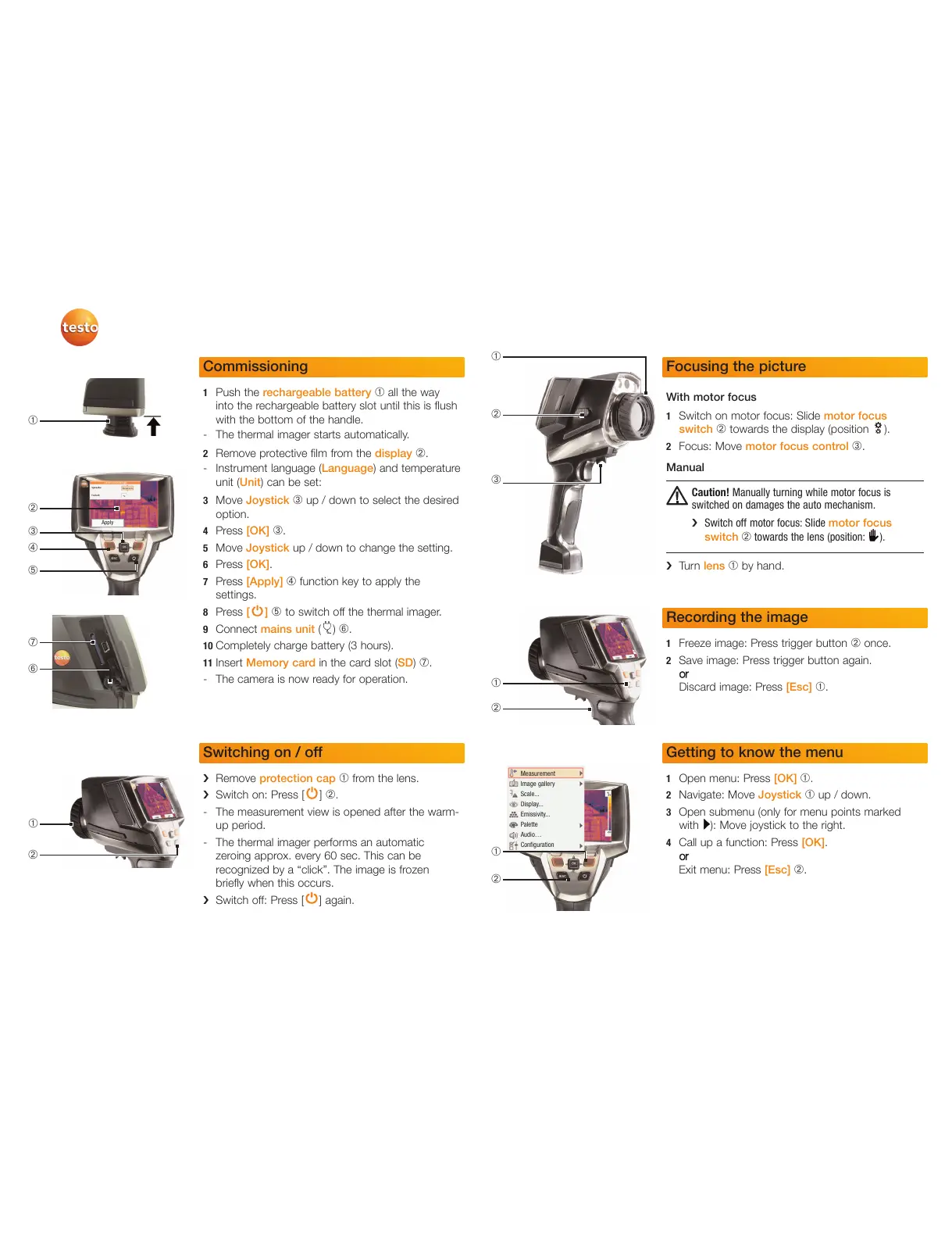

Commissioning
1 Push the rechargeable battery all the way
into the rechargeable battery slot until this is flush
with the bottom of the handle.
- The thermal imager starts automatically.
2 Remove protective film from the display .
- Instrument language (Language) and temperature
unit (Unit) can be set:
3 Move Joystick up / down to select the desired
option.
4 Press [OK] .
5 Move Joystick up / down to change the setting.
6 Press [OK].
7 Press [Apply] function key to apply the
settings.
8 Press []to switch off the thermal imager.
9 Connect mains unit () .
10 Completely charge battery (3 hours).
11 Insert Memory card in the card slot (SD) .
- The camera is now ready for operation.
Recording the image
1 Freeze image: Press trigger button once.
2 Save image: Press trigger button again.
or
Discard image: Press [Esc] .
Getting to know the menu
1 Open menu: Press [OK] .
2 Navigate: Move Joystick up / down.
3 Open submenu (only for menu points marked
with ): Move joystick to the right.
4 Call up a function: Press [OK].
or
Exit menu: Press [Esc] .
Focusing the picture
With motor focus
1 Switch on motor focus: Slide motor focus
switch towards the display (position ).
2 Focus: Move motor focus control .
Manual
Caution! Manually turning while motor focus is
switched on damages the auto mechanism.
Switch off motor focus: Slide motor focus
switch
towards the lens (position: ).
Turn lens by hand.
Apply
Switching on / off
Remove protection cap from the lens.
Switch on: Press [ ]
.
- The measurement view is opened after the warm-
up period.
- The thermal imager performs an automatic
zeroing approx. every 60 sec. This can be
recognized by a “click”. The image is frozen
briefly when this occurs.
Switch off: Press [ ] again.
Measurement
Image gallery
Scale...
Display...
Emissivity...
Palette
Audio…
Configuration
