Min fan speed (0
rpm) and fan cut in
pressure 200 psig
(13.8 barg) are
factory set and not adjustable.
NOTE: The condenser fan may stop if the operating pressure drops below 200 psig (13.8 barg)

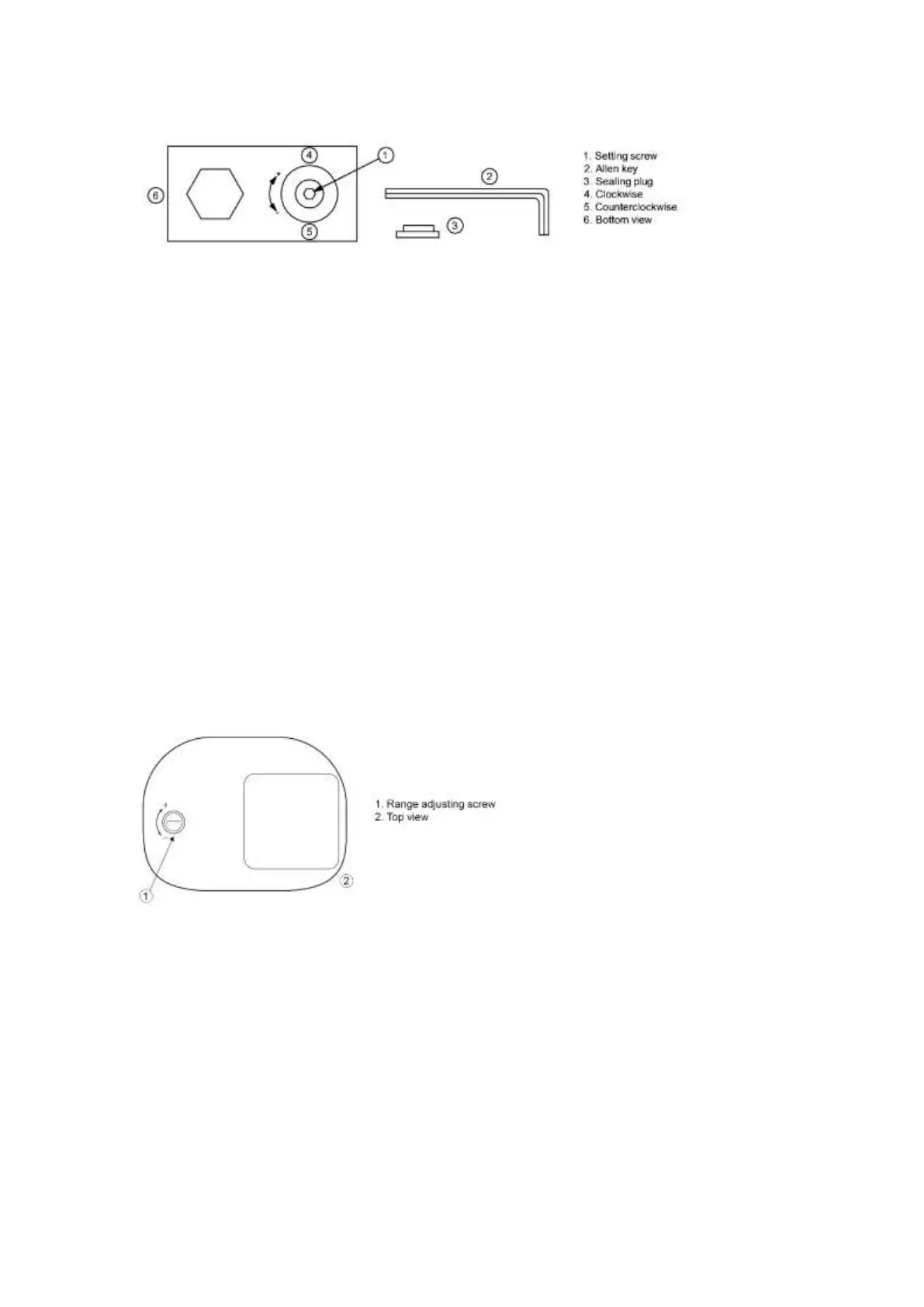

R404A: 210-220 psig (14.5-15.2barg) to achieve this remove sealing plug and insert 2mm or 5/64”
allen key into setting screw. Turn allen key clockwise (+) or counter clockwise (-) to readjust the
setting.
Do not turn setting screw more than 3 turns clockwise (+3). Use following table as a quick guideline
for setting:
Pressure changes per turn of adjusting screw:
Pressure change: 9.2 … 21.2 bar:
Clockwise ~ +2,5 bar, counter clockwise ~ -2,5 bar
After adjustment, re-insert sealing plug and make sure that it is properly fitted. IP65 protection
requires firmly sealed plug
NOTES:
Tolerances for condensing temperatures setpoint: ±2K
SAGINOMIYA (XGE-4C)
R404A: 210-220 psig (14.5-15.2barg) to achieve this turn the range adjusting screw clockwise (+)
for increasing the setting value or counter clockwise (-) for decreasing the setting value.
Pressure changes per 1 turn of adjusting screw:
Pressure change: 10 … 25bar:
Clockwise ~ +1.5 bar, counter clockwise ~ -1.5 bar
To Next Page
