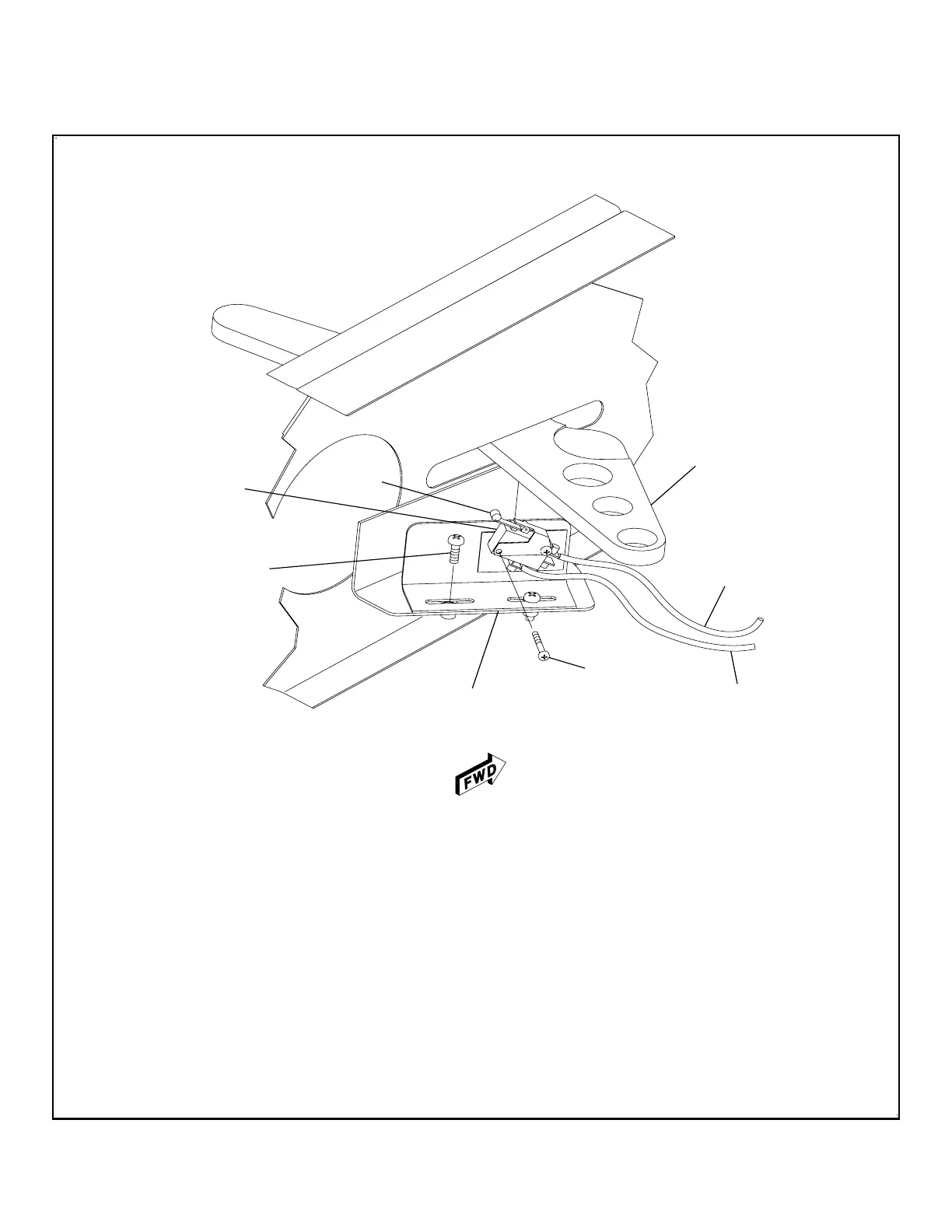

Figure 201 : Sheet 2 : Stall Warning System Installation
A20033
BELL CRANK
WIRE
WIRE
SCREW
MOUNTING
BRACKET
SCREW
SWITCH
(S−12)
CAM
LOBE
AIRPLANES 20800316 AND ON AND
AIRPLANES 208B0800 AND ON AND
AIRPLANES 20800001 THRU 20800315 AND
AIRPLANES 208B0001 THRU 208B0799
INCORPORATING CAB00−1
DETAILC
C2618T1340
Model 208/208B Maintenance Manual (Rev 33)
27-31-00-2 (Rev 28)
