Textron EZGO TXT FLEET - Page 40

Page D-3
Service Parts Manual
Adjuster Assembly
Tension Pin
BOTTOM PULL

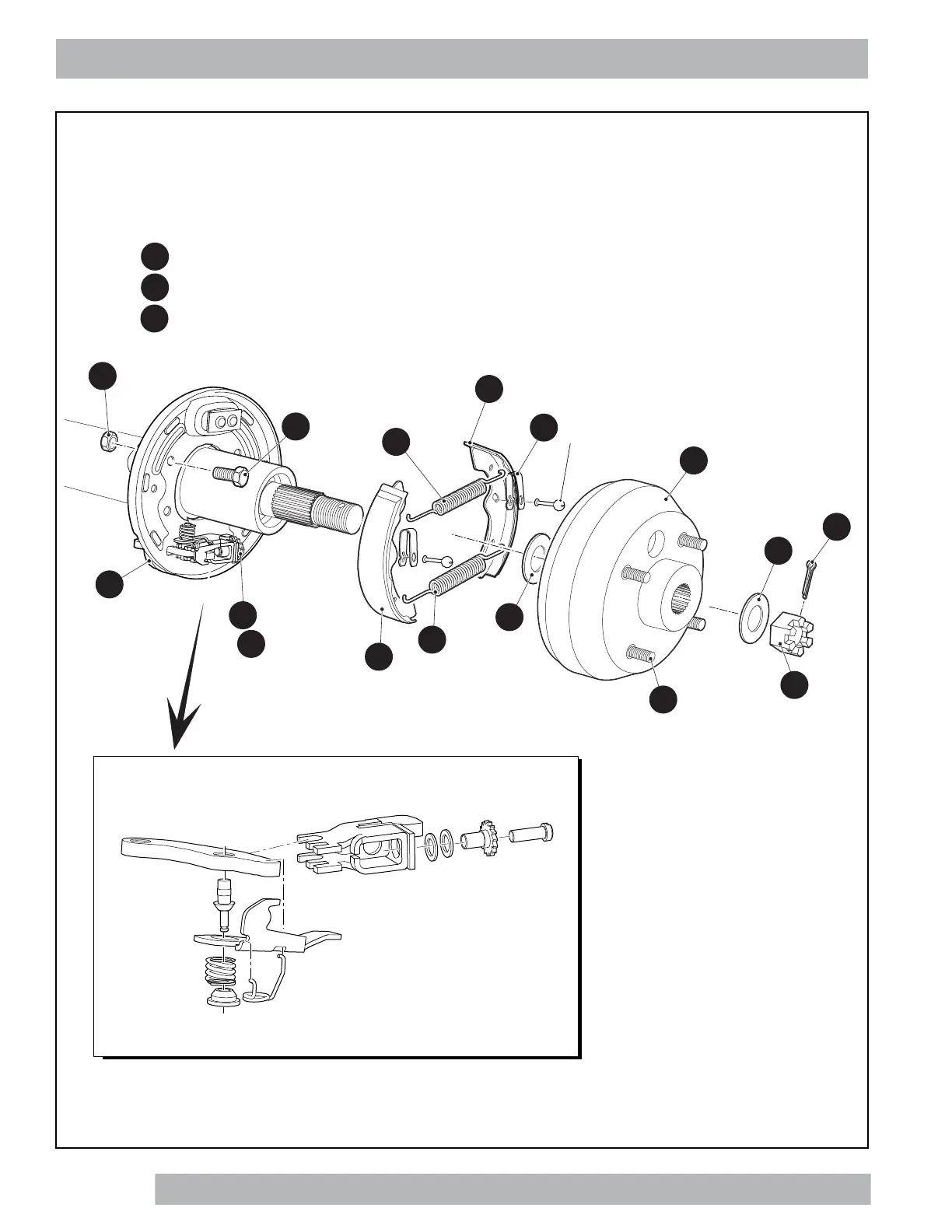

BRAKE ASSEMBLY (DRIVER SIDE) includes items 55 - 60, 63
53
BRAKE ASSEMBLY (PASSENGER SIDE) includes items 55 - 60, 64
54
BRAKE DRUM ASSEMBLY includes items 72 & 73
71
67
57
63
64
55
58
56
69
59
60
68
72
78
77
76
73
BRAKES
