Textron EZGO TXT SHUTTLE 2+2 - Page 40

Page D-7
689396 Service Parts Manual

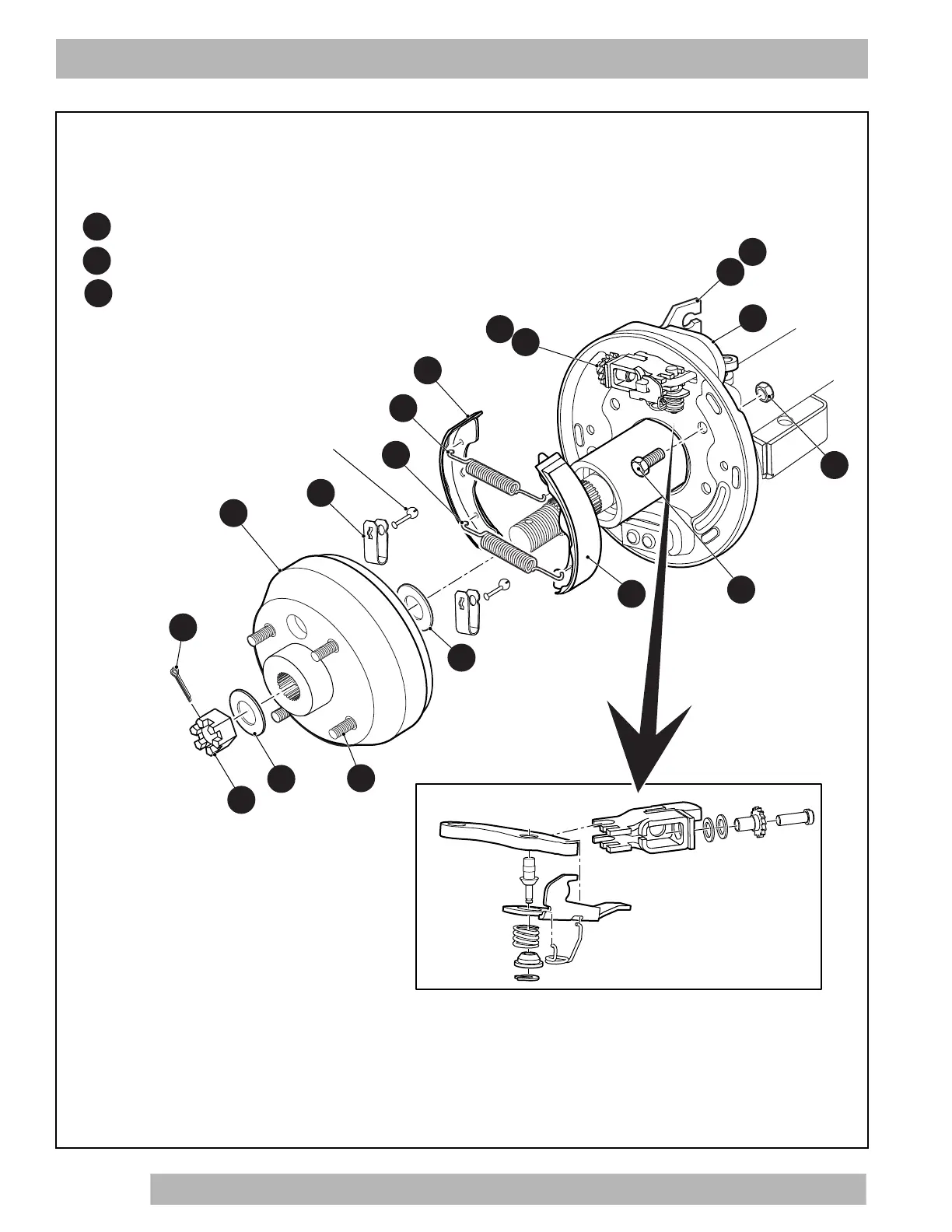

BRAKES
14
4
17
26
25
9
10
18
1
2
16
Brake Assembly (Driver Side) includes items 3 - 9
Brake Assembly (Passenger Side) includes items 3 - 8, 10
Brake Drum Assembly includes items 17, 18
22
15
5
21
24
3
6
7
8
Adjuster Assembly
Tension Pin
13
