Textron EZGO TXT VALOR - Accelerator System Components; Pedal Box Assembly and Controls

Page A-1
ACCELERATOR
653637 Service Parts Manual
To
Governor
Part of
Frame
5
25
4
23
3
39
35
2
22
9
10
8
28
12
13
14
15
11
18
19
17
21
20
19
32
33
31
16
4
7
6
1

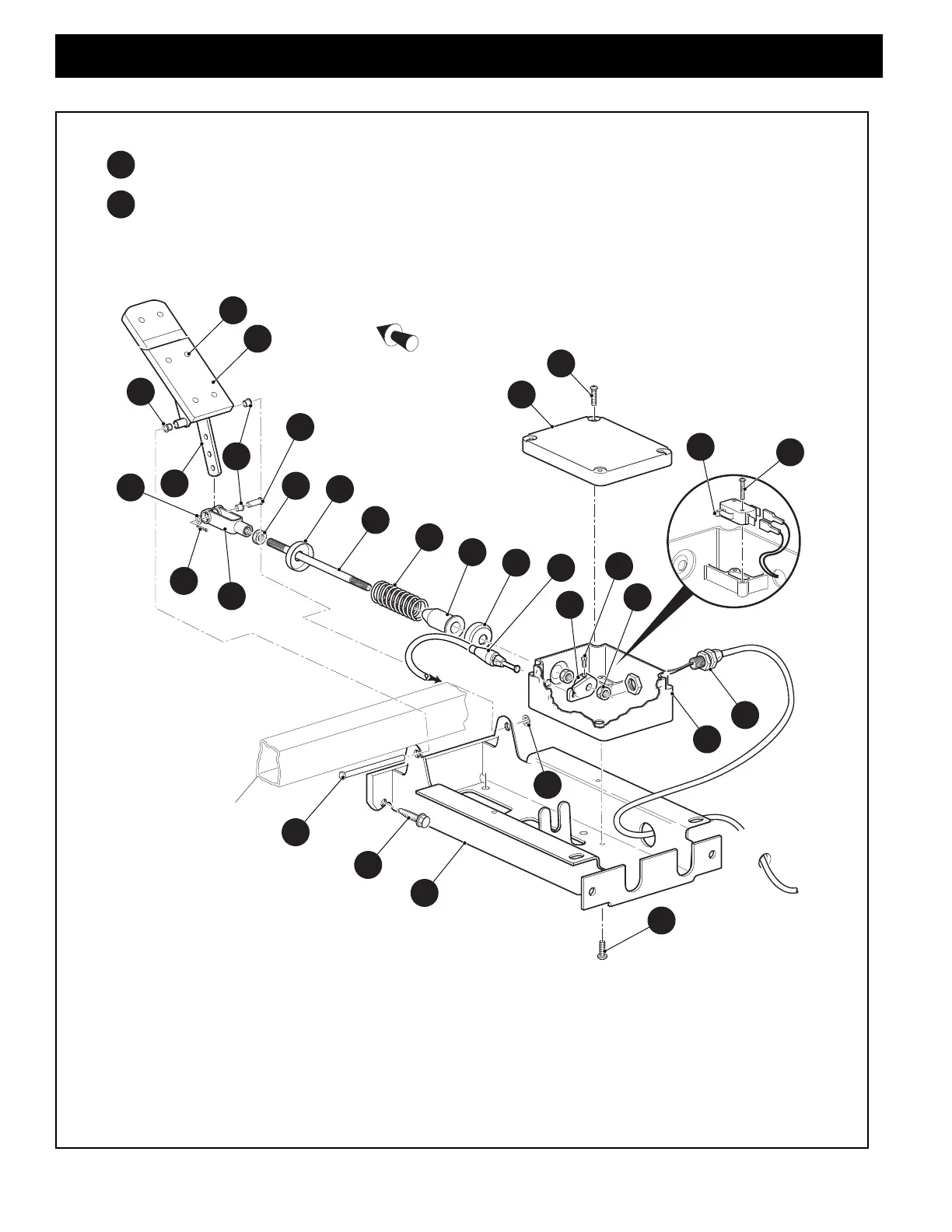

PEDAL BOX ASSEMBLY includes items 2 - 33
30
ACCELERATOR PEDAL ASSEMBLY includes items 31 - 33
Front of Vehicle
