2.Compressor checking

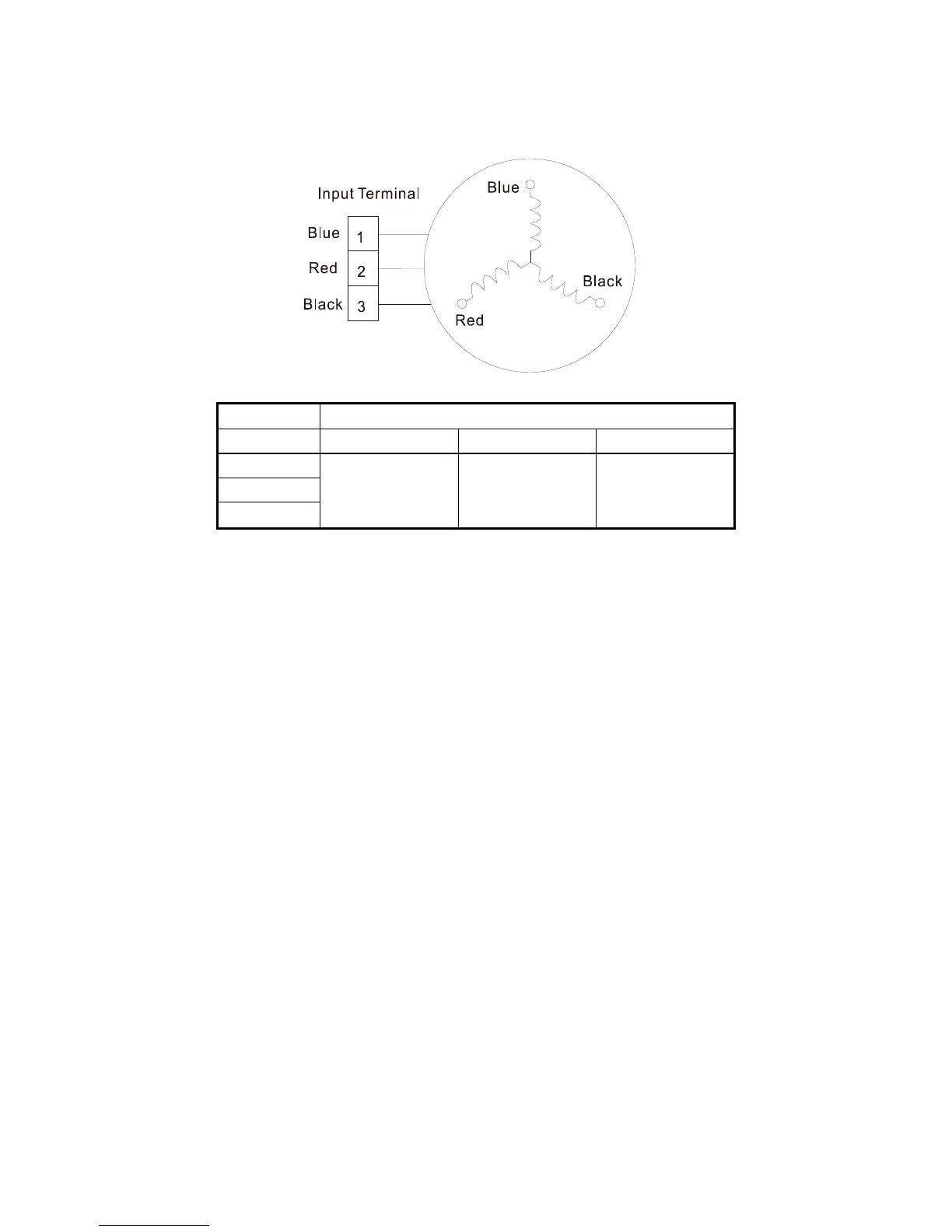

Measure the resistance value of each winding by using the tester.
Position Resistance Value
ASN98D22UFZ ASM135D23UFZ ATF235D22UMT
Blue - Red
1.57Ω
(20℃/68℉)
1.75Ω
(20℃/68℉)
0.75Ω
(20℃/68℉)
Blue - Black
Red - Blue
