TheGigRig Pro-8s Technical Specification:
Guarantee is not affected if you open the GigRig.
Bypass mode:
True bypass. Direct connection from guitar to amplifier. (DC connected)
Effects bypass:
True bypass, direct AC connection between send and return. (AC coupled)
Pop Gate. Settling time = 30 seconds from power up.

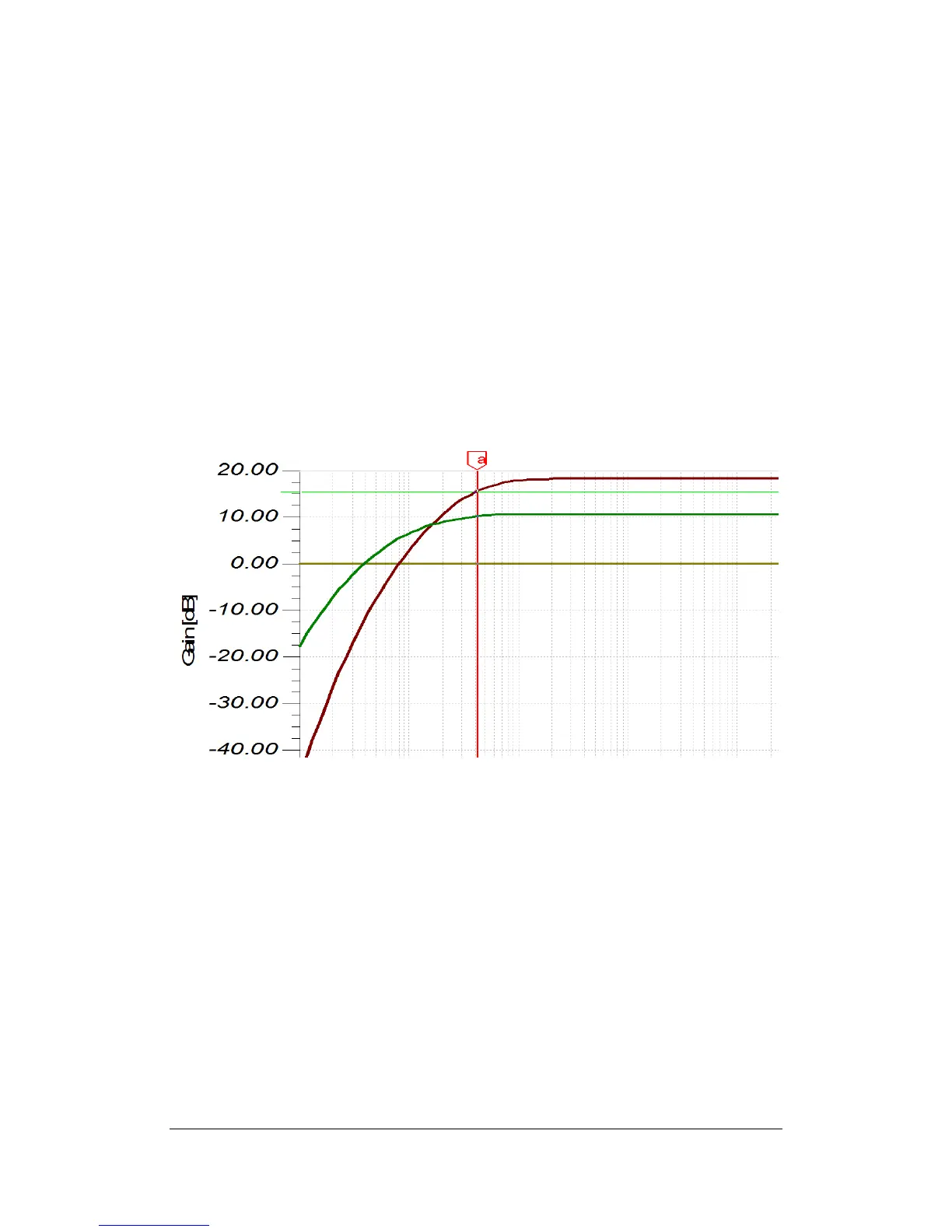

Maximum gain For TheGigRig Pro-8 is shown in Green (middle) trace.
Bandwidth is 10Hz To 200KHz.
Post effects Amplifier: Class A
Gain of post effects amplifiers X3 = +9.5 dB
Attenuation of Post effects amps Divide by 5
Bandwidth 10 Hz to 200 kHz
Flatness 1dB Flat to 50 KHz (studio quality)
Input impedance of post effects amplifier 500k Ohm
Distortion Signal level dependent 2%
AC output impedance of post effects amplifier 500 Ohm
Isolated output Flat to 30KHz. Compensates for cable capacitance.
Internal Microprocessors = RISC microprocessor clocked at 4MHz.
