5 PIN PUMP CONNECTION PLUG
THERALUX
(TVS PRO &
THERAFLO)
RELTECH
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5
Common Speed Speed Speed Speed
Black Wire Red Wire Brown Wire Green Wire White Wire
THERALUX
(THERAFLO
S-SERIES) 485
RELTECH 485
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5
Not Used Not Used A B 0 V
Green Wire White Wire Black Wire
PENTAIR VS/F
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5
Not Used Not Used A B Not Used
Yellow Wire Green Wire
DAB
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5
IN 0 Not Used Negative Positive Not Used
Red Wire Black Wire Brown Wire
INSNRG
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5
Not Used Not Used A B Not Used
Orange Wire White/Orange
Striped Wire
Pin 1
Pin 1
Pin 3 Pin 3
Pin 5
Pin 5
Pin 2 Pin 2 Pin 4 Pin 4

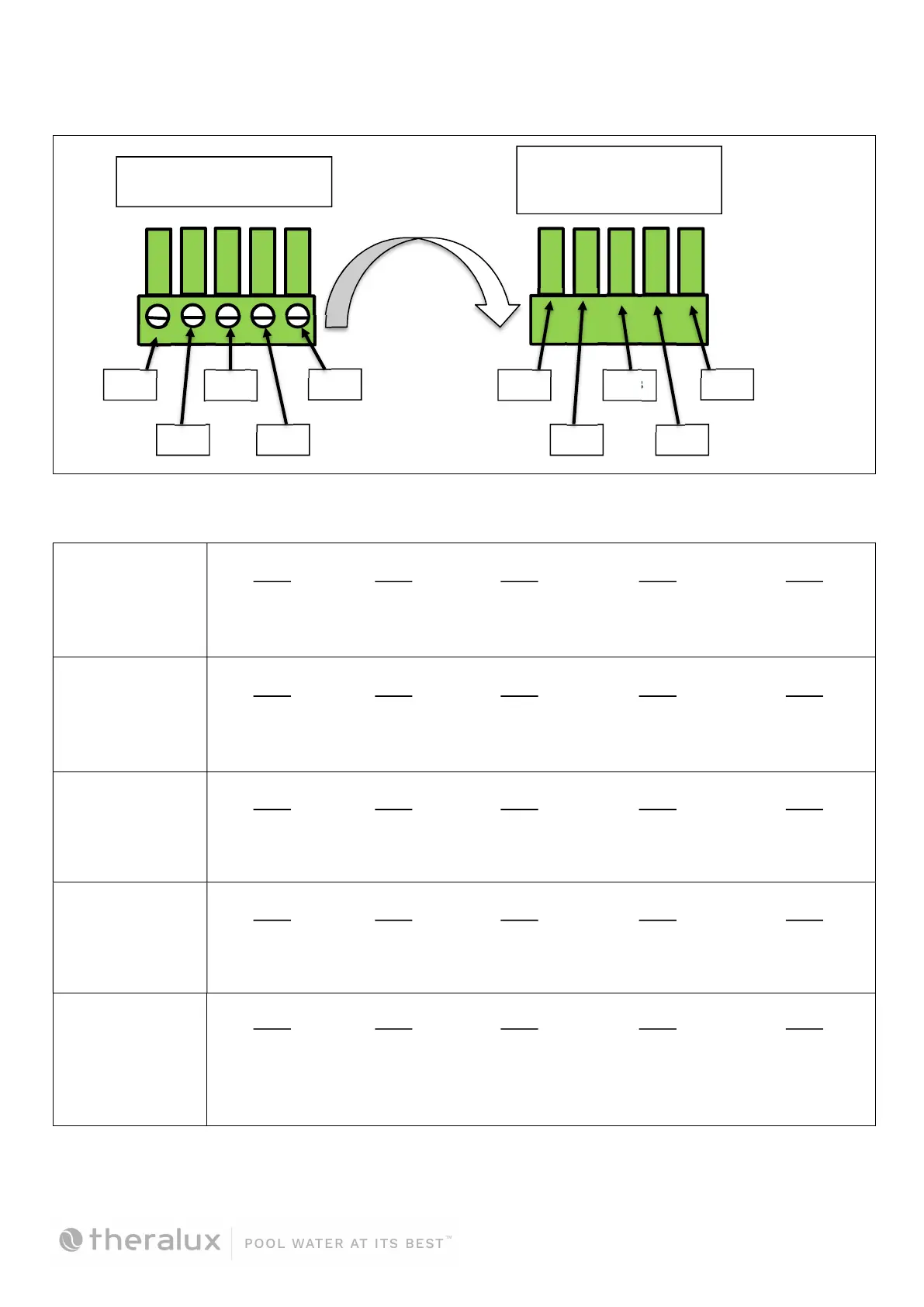

When the pump plug is out of
the controller, it will be like this.
When the pump plug is flipped
over and plugged into the
controller, it will look like this.
