25

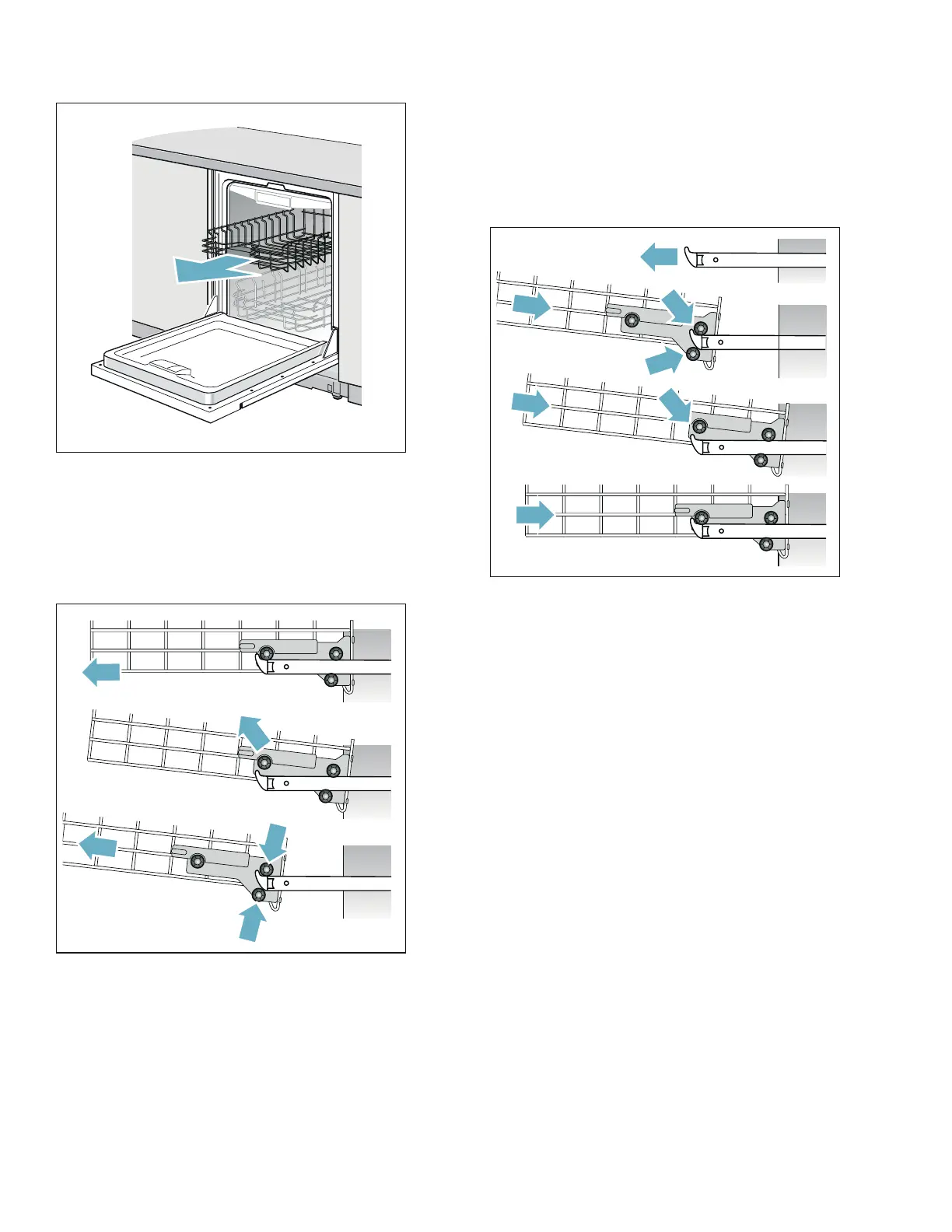

Removing/Installing upper rack with
Rackmatic
®
Removing upper rack 12
1.
Pull out upper rack all the way (1).
2.
Lift front rollers over the stopper hook of the rail (2).
3.
Pull out upper rack forwards and upwards so that the
upper and lower rollers of the rack slide over the
stopper hooks of both rails (3).
Installing upper rack 12
1.
Pull out upper rack rails all the way (1).
2.
Insert upper rack at an angle. Make sure that the
stopper hooks of both rails slide in between the upper
and lower rollers on the rear side of the rack (2).
3.
Slide upper rack in and lift the upper rollers over the
front stopper hooks of both rails (3).
4.
Push in upper rack (4).
