10

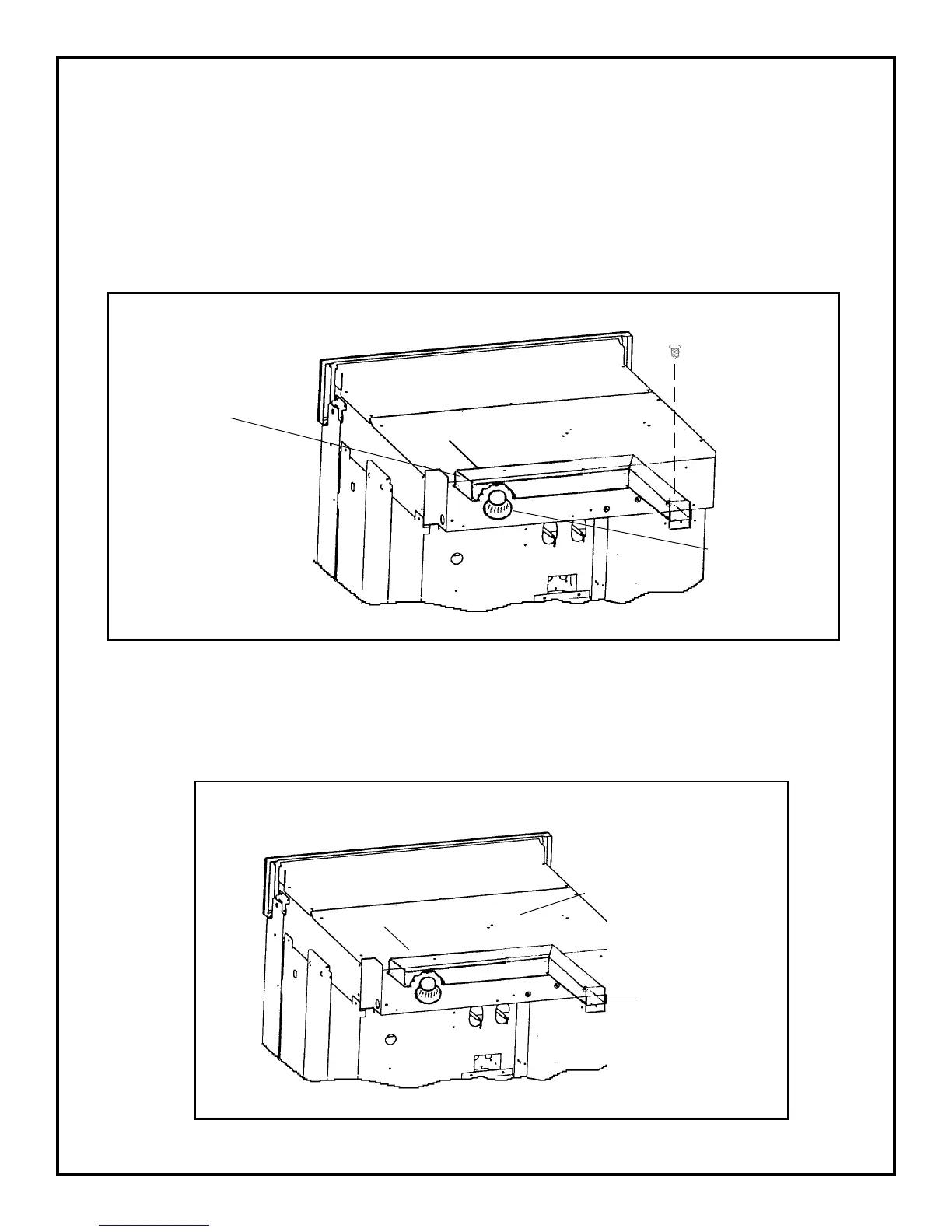

TO CONVERT TOP OVEN CELL:
1) REMOVE SCREW IN REAR OF PLENUM THAT HOLDS VENT TUBE TO OVEN WRAPPER.
2) REACH UNDER INSULATION BLANKET AND PULL VENT TUBE UP AND OUT OF CATALYST.
3) SLIDE PLENUM OVER TOP OF OVEN CELL AND LINE UP NEW VENT TUBE WITH CATALYST.
FIGURE 14.
4) SECURE PLENUM TO TOP OVEN CELL.
5) COVER SQUARE HOLE FOR OLD VENT TUBE WITH ALUMINUM TAPE. SEE FIGURE 15.
FIGURE 15.
(Line Up)
Plenum
Square Hole With
Aluminim Tape
➛
➛
“Old “ Vent Tube
(Pull up)
Rear Screw
Catalyst
➝
➛
➛
To Next Page
