Thermador SC272T - Middle Plenum Conversion Steps

15
REMOVE TOP PLENUM:
1) REMOVE 4 SIDE SCREWS ON EACH SIDE THAT ATTACH THE PLENUM TO THE TOP OVEN
CAN CELL.
2) LIFT THE PLENUM UP AND SECURE THE NEW VENT AND INSULATION TO THE UNDERSIDE
OF PLENUM WITH THE 4 TOP SCREWS PROVIDED.
3) LIFT THE PLENUM AND SLIDE IT FORWARD; IT IS NOT NECESSARY TO REMOVE THE PLENUM
COMPLETELY TO DO THE CONVERSION.

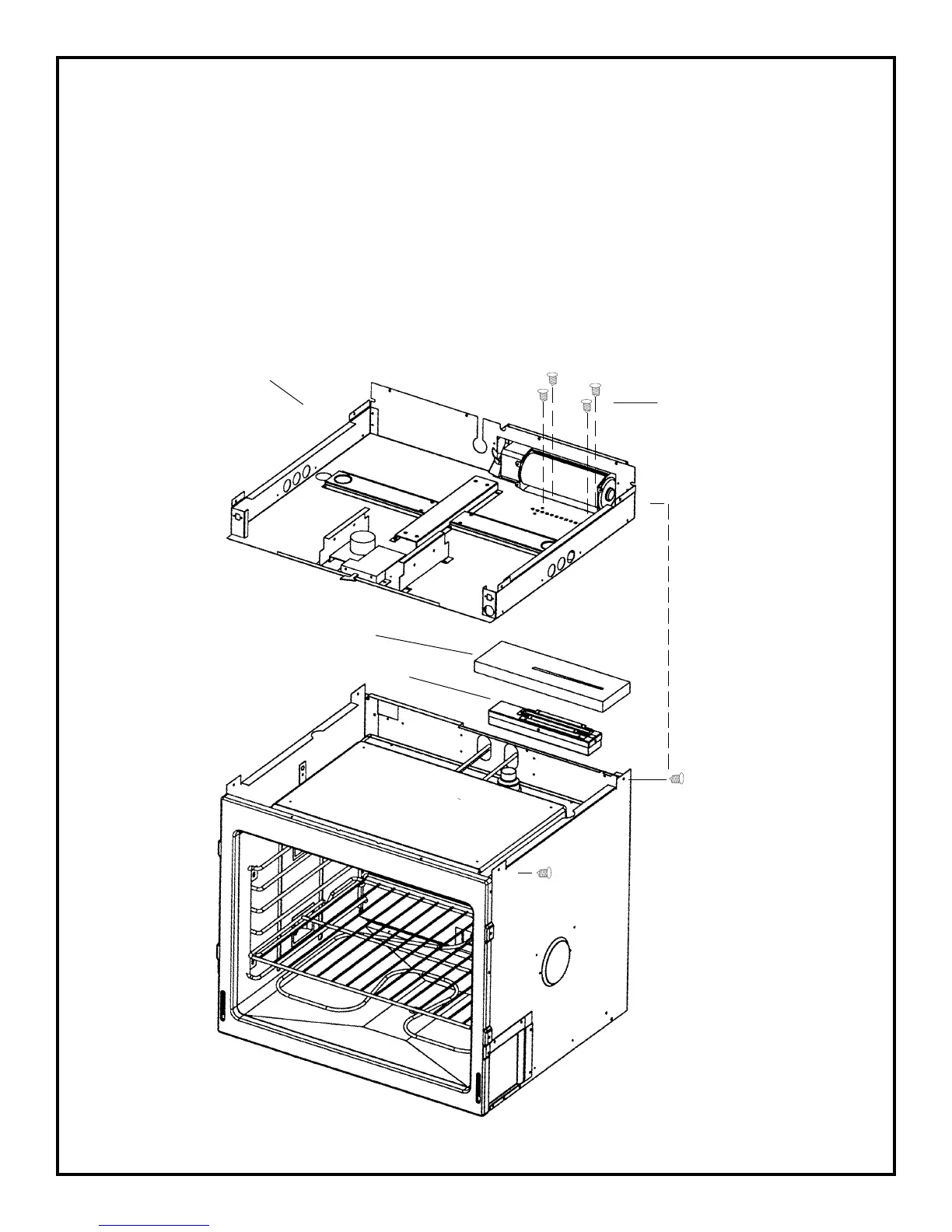

FIGURE 20
(4) Top Screws
(4) Side Screws
New Insulation
New Vent
➛
➛
➛
➛
➛
Middle Plenum
