Manual No. 0-4819 3-17 INSTALLATION
A. Connect Fiber Optic Cable (Type 1 internal control module)
CAUTION
Check the type of internal control module. Use this section for connections to an internal control module with an
external connections cover. Use the following section for connections to an internal control module without an
external connections cover.
1. Connect one end of each cable to the power supply as shown.
a. Remove the strain relief securing nut from the strain relief on the fiber optic cable(s). Loosen the strain
relief dome nut from the strain relief.
b. Pass the cable connector through the appropriate opening on the connections cover. Slide the strain
relief securing nut onto the cable. Make a loop of the cable; carefully press the cable connector into the
appropriate receptacle on the power supply rear panel.
c. Slide the strain relief assembly onto the connections cover; fasten it in place with the strain relief
securing nut. Fasten the strain relief dome nut onto the strain relief; do not overtighten.

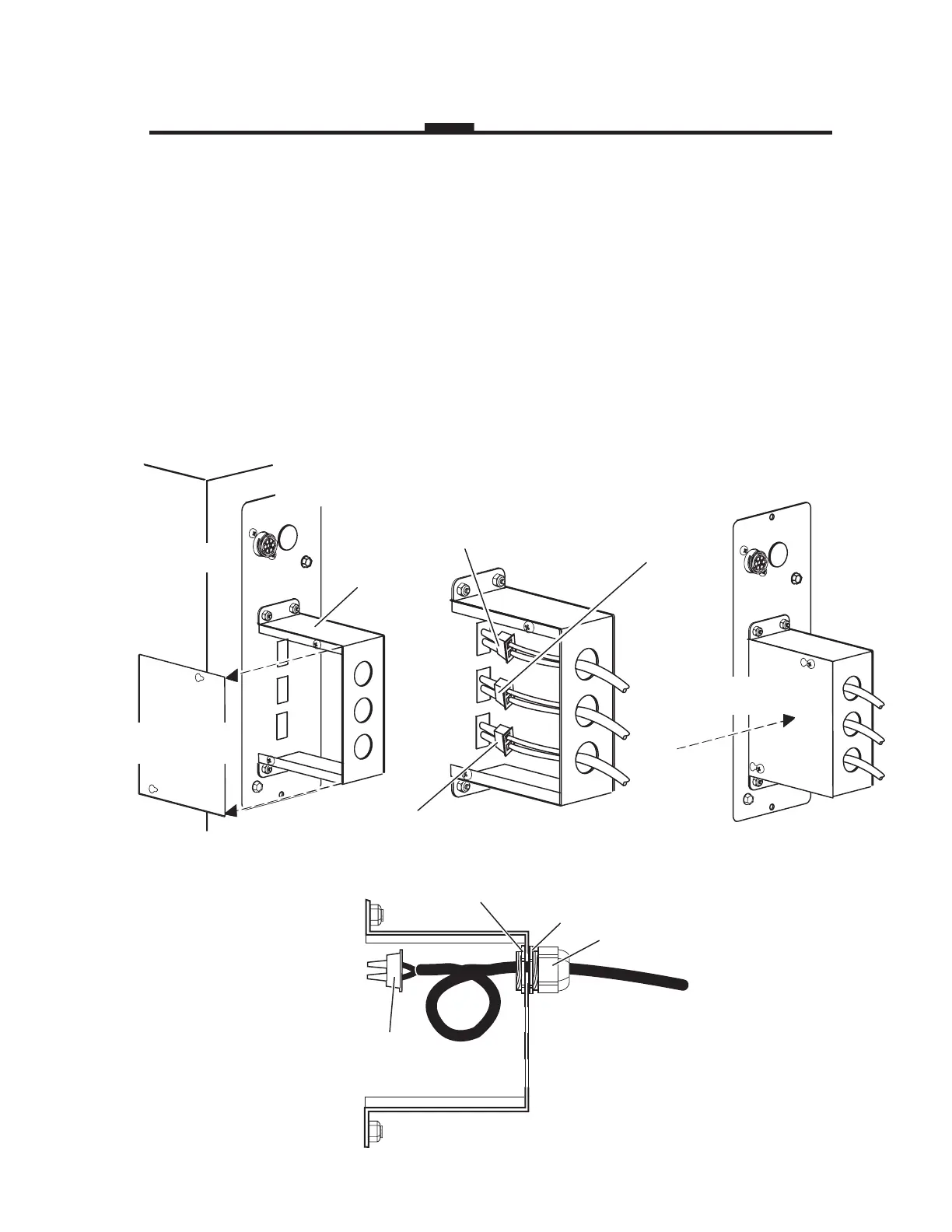

Art # A-04805
Power Supply
Right Side Panel
To Gas Control Module
To Remote HMI
(if installed)
To Slave Power Supply
(if installed)
Connection Cover
Side Panel
1
23
Power Supply
Rear Panel
Strain Relief Dome Nut
Strain Relief Securing Nut
Strain Relief
Fiber Optic Cable
Fiber Optic
Cable Connector
Profile Detail, Fiber Optic Cable Installation
Connection Cover
Connection Cover
Side Panel
To Next Page
