Thermal Solutions APEX APX425C User Manual

144
106308-05 - 3/23

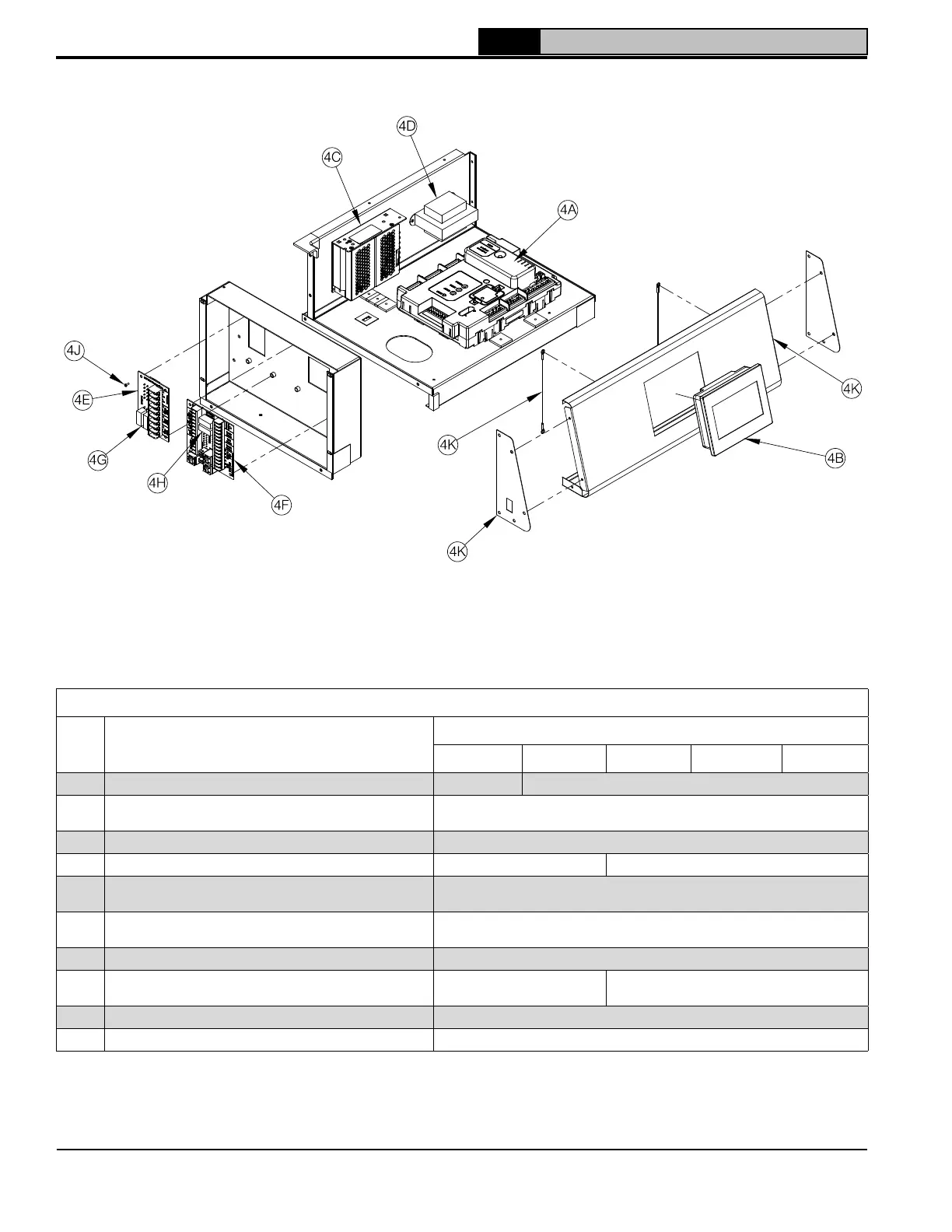

APEX Installation, Operating, & Service Instructions
Control Components
Key
No.
Description
Part Number
APX425C APX525C APX625C APX725C APX825C
4A Replacement Control Kit (programmed) 106499-01 106499-02
4B
Replacement Display Kit (programmed, includes
mounting hardware)
106507-01
4C Display Power Supply 105994-01
4D Transformer 106034-01 109220-01
4E
Replacement 120V PCB Kit (includes PCB, fuses,
and hardware)
106512-01
4F
Replacement Low Voltage PCB Kit (includes PCB,
fuses, and hardware)
106513-01
4G Pump Fuse, 5 x 20 mm, 6.3A Slow Blow 109155-01
4H 24V Fuse, 5 x 20 mm
1.6A, Slow-Blow
109156-01
2.0A, Fast-Acting
109157-01
4J Machine Screw, 8-32 x 1/2 in. 101033-01
4K Display Panel Assembly 106271-01
13 Service Parts (continued)
