Thermal Solutions APEX APX425C - 8 Electrical (continued); Multiple Boiler Wiring Diagram (Internal Sequencer)

65
106308-05 - 3/23
APEX Installation, Operating, & Service Instructions APEX Installation, Operating, & Service Instructions

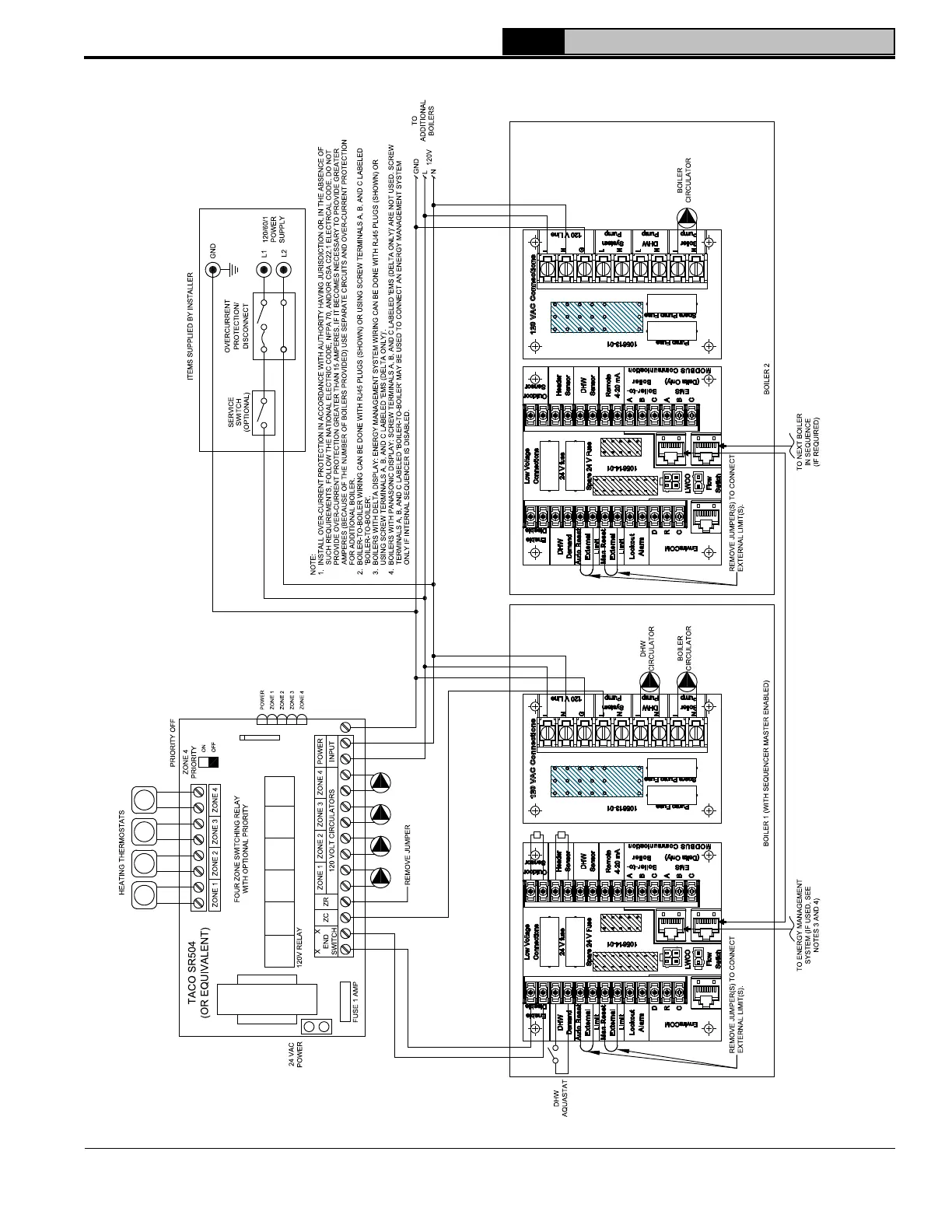

Figure 8-9: Multiple Boiler Wiring Diagram
Internal Multiple Boiler Control Sequencer
(Two Boilers Shown, Typical Connections for up to Eight Boilers)
8 Electrical (continued)
