System
connections
A balanced XLR type interconnect cable is
connected from this output to the subwoofer's
normal input.
PX02
Left
channel speaker level ,nput
Input wires are connected from the main speakers' power amplifier outputs to these input terminals.
Observe
+ and - polarity markings.Shorting straps must
be
used
on
unconnected inputs.
Power Amplifier
for main speakers
Preamp or Processor
Left/Right
outputs
Subwoofer
Passive Crossover
Main Left/Right speakers

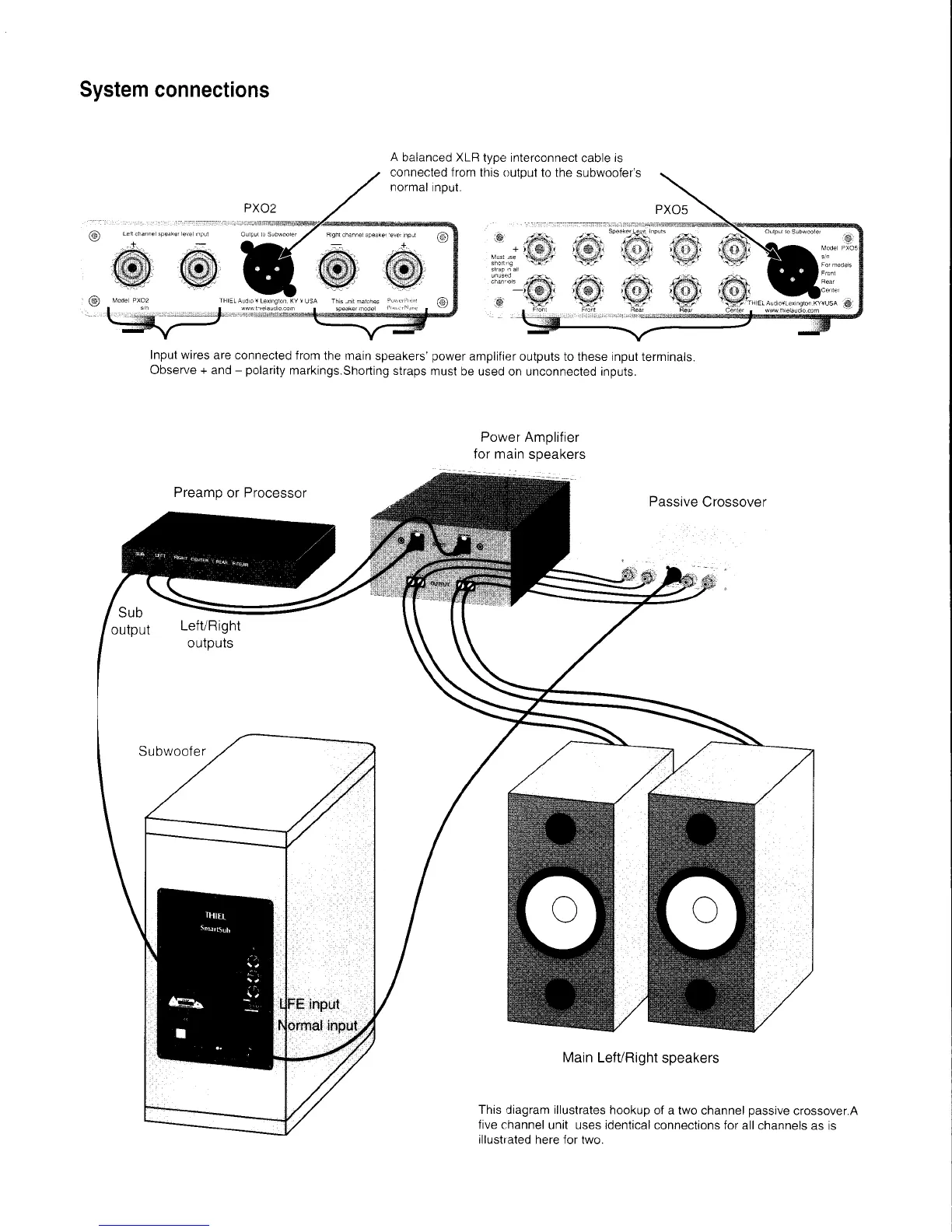

This diagram illustrates hookup of a two channel passive crossover.A
five channel unit uses identical connections for all channels as
is
illustrated here for two.
