EHB/C Manual TH211118ER1 THINICON
2

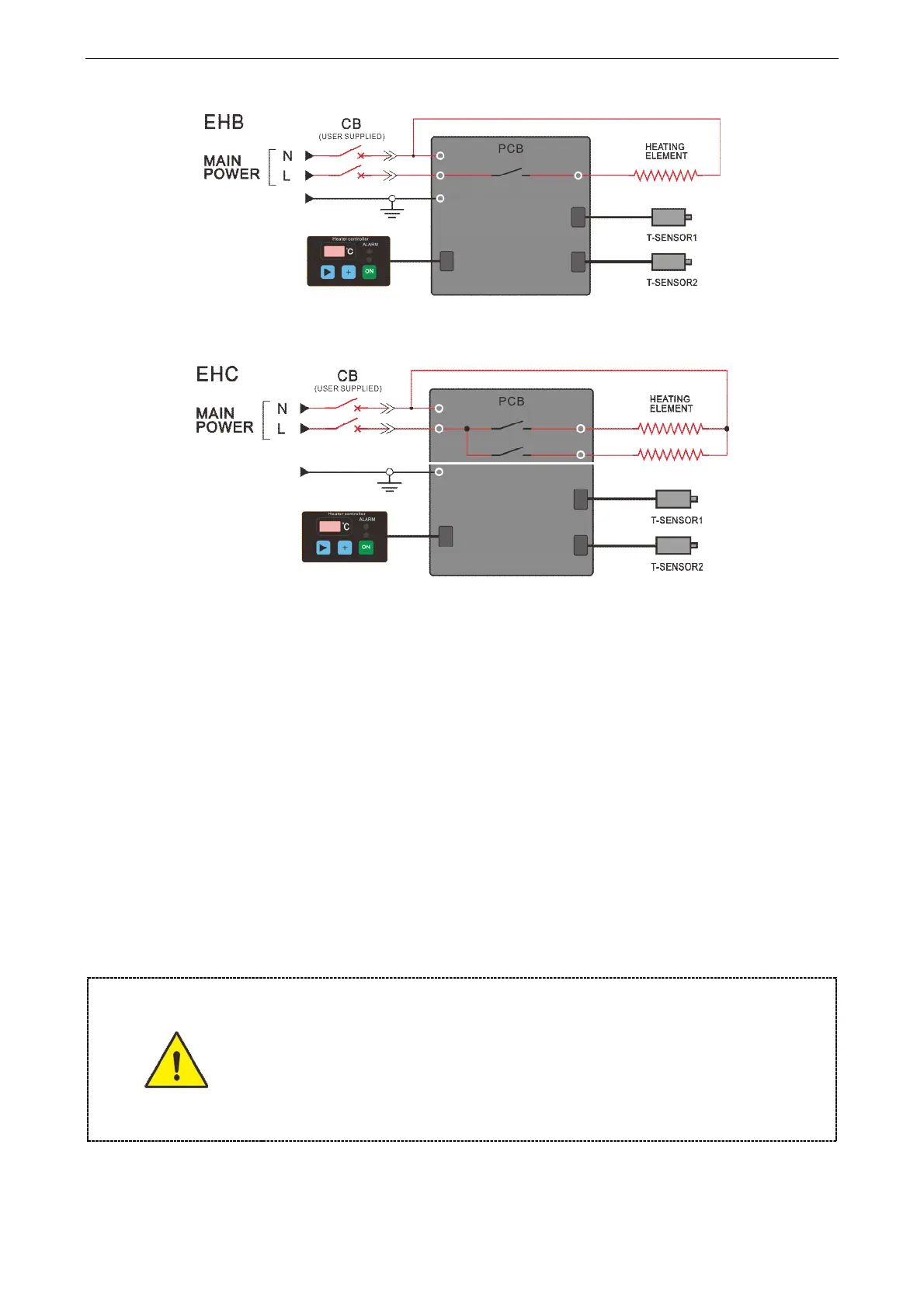

3 Wiring and electrical schematics：
4 Installation
Installed correctly is very important for the normal work of the heater, otherwise it will damage the
heater.
Position：
l Mounting feet horizontal installation.
l Isolation the engine vibration.
l The heater water-jacket is setting in low position as far as possible below the engine cooling fluid.
Electrical connections：
l Refer to the above wiring diagram.
l Must provide the good ground to ensure that the heater effectively grounding protection.
l User according to the power of the heater, select the appropriate main power circuit breaker to
ensure the effective heater overcurrent protection.
Warning：
l Heater installation and maintenance must be disconnected from the main
power supply.
l Must be installed and maintained by qualified engineers.
l During transport and parking, if the ambient temperature causes the
coolant in the heater water jacket to solidify, the maintenance drain must
be drained prior to use.
