Cablerouting:

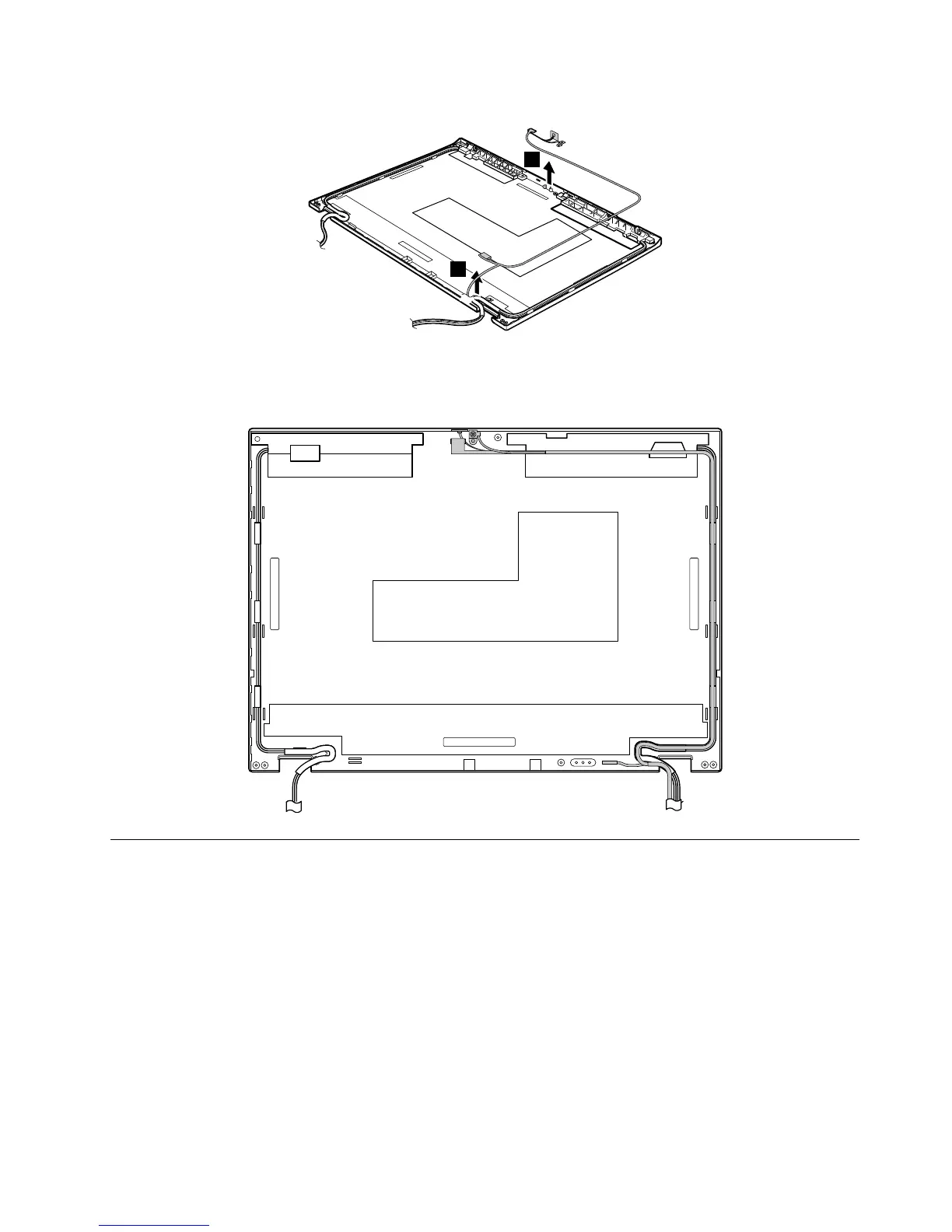

WhenyouinstalltheLEDcable,routethecableasshowninthefigurebelow.
2080AntennakitandLCDrearcoverassembly
Foraccess,removetheseFRUsinorder:
•“1010Batterypack”onpage68
•“1020SerialUltrabaySlimdeviceortravelbezel”onpage69
•“1030Solid-statedrive(SSD)orharddiskdrive(HDD)”onpage70
•“1040DIMM”onpage72
•“1050PCIExpressMiniCardforwirelessLAN”onpage74
•“1060PCIExpressMiniCardforwirelessWAN”onpage77
•“10704–in–1mediacardreader”onpage79
•“1080Keyboard”onpage80
•“1100Palmrestwithfingerprintreader,smartcardreader,andspeaker”onpage84
Chapter8.RemovingandreplacingaFRU111
