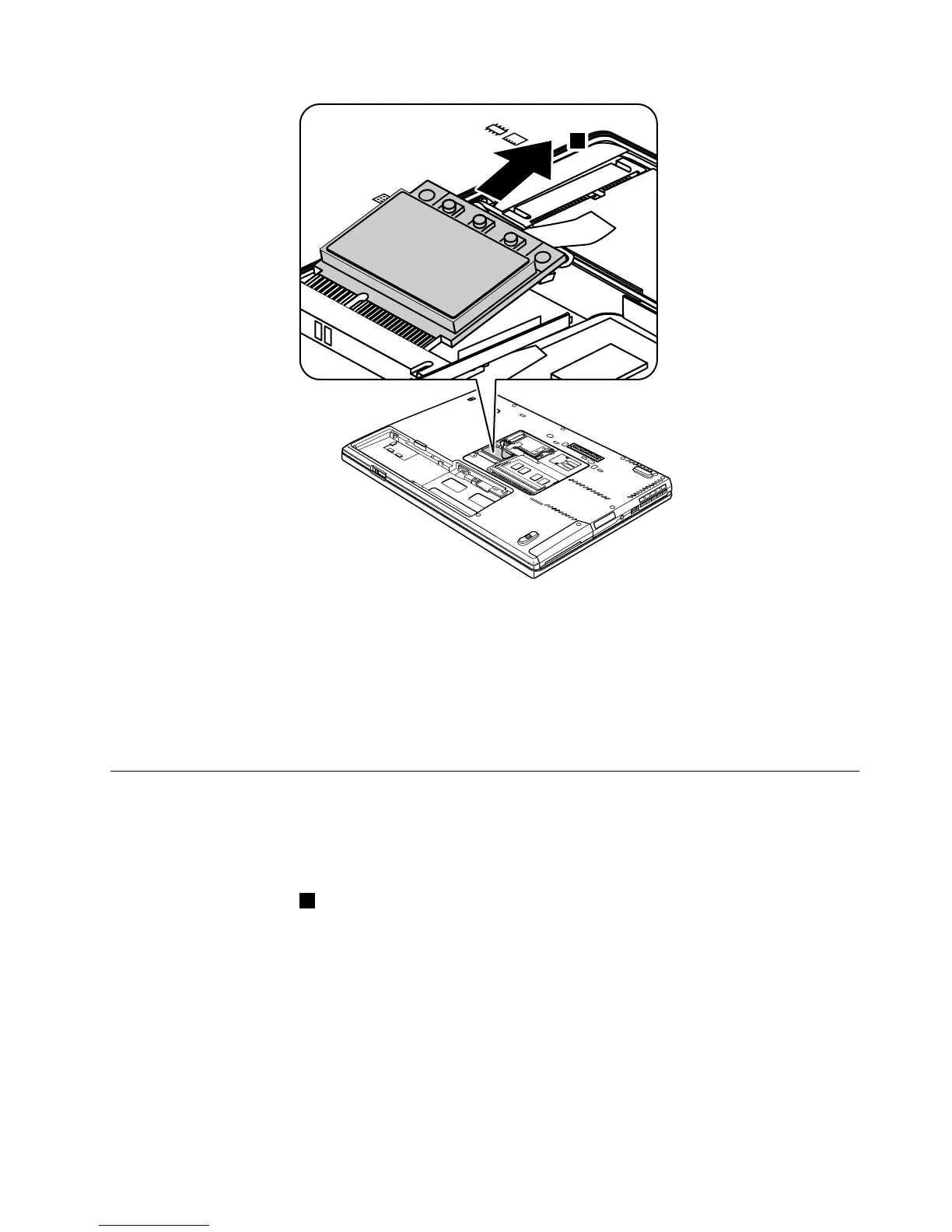

5
Wheninstalling:
•InmodelswithawirelessLANcardthathastwoantennaconnectors,plugthegraycableintothejack
labeledMAINorM,andtheblackcableintothejacklabeledAUXorAonthecard.Ifthecomputeryou
areservicinghasthreecables,putthewhitecableinthecableprotectiontube.
•InmodelswithawirelessLANcardthathasthreeantennaconnectors,plugthegraycable(MAIN)into
thejacklabeledTR1,thewhitecable(third)intothejacklabeledROorTR3,andtheblackcable(AUX)
intothejacklabeledTR2onthecard.
1060PCIExpressMiniCardforwirelessWAN
Foraccess,removethisFRU:
•1010Batterypack
RemovalstepsofPCIExpressMiniCardforwirelessWAN
Note:Removethescrews1.
Chapter8.RemovingandreplacingaFRU77
