Cymbals

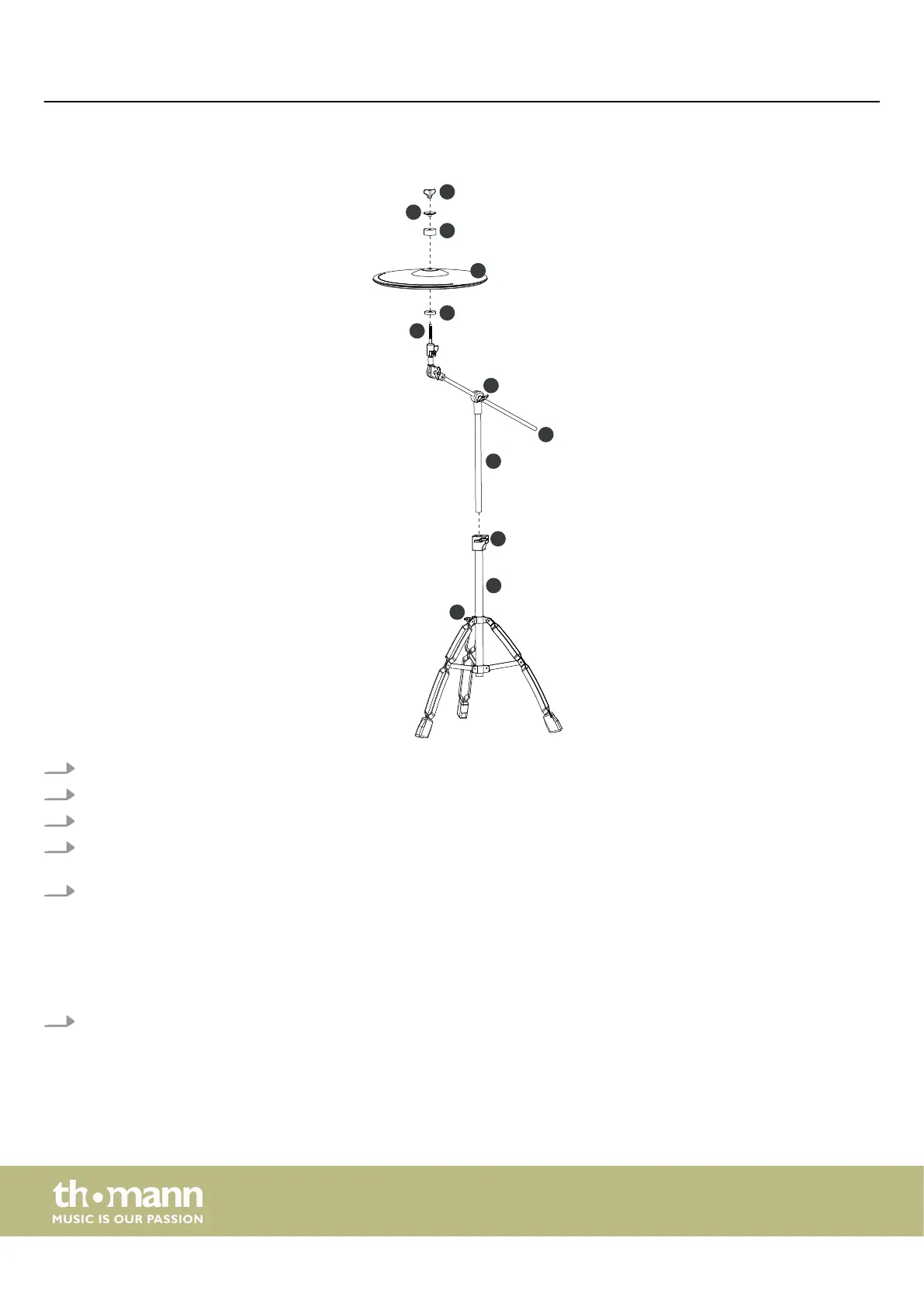

1. Unscrew the wing nut (28) of the boom cymbal stand (29) and open up the legs. Then tighten the wing nut (28) again.
2. Insert the bracket (30) into the boom cymbal stand (29) as shown in the illustration.
3. Adjust the height of the bracket (30) according to your needs and then tighten the wing nut (31).
4. Unscrew the wing nut (32) of the boom arm (33) and adjust the position of the boom arm (33) according to your needs.
Then tighten the wing nut (32) again.
5. Place the thin felt washer (35), the cymbal pads (36), the thick felt washer (37) and the washer (38) one after the other on
the cymbal holder (34) as shown in the illustration.
Make sure that the crash pads (15") are attached to the left and middle boom cymbal stand and the ride pad (18") to the
right boom cymbal stand.
The cymbal holders (34) have a groove. The plates on the underside of the cymbal pads (36) lie exactly in the respective
groove of the cymbal brackets.
6. Attach the cymbals (36) with the associated wing nut (39).
Assembly
e-drum set
12
