Twist
Lubricate
Align
Probe
Wrench Hole
Wrench
IS---0359
March 2010
Page 3 of 4

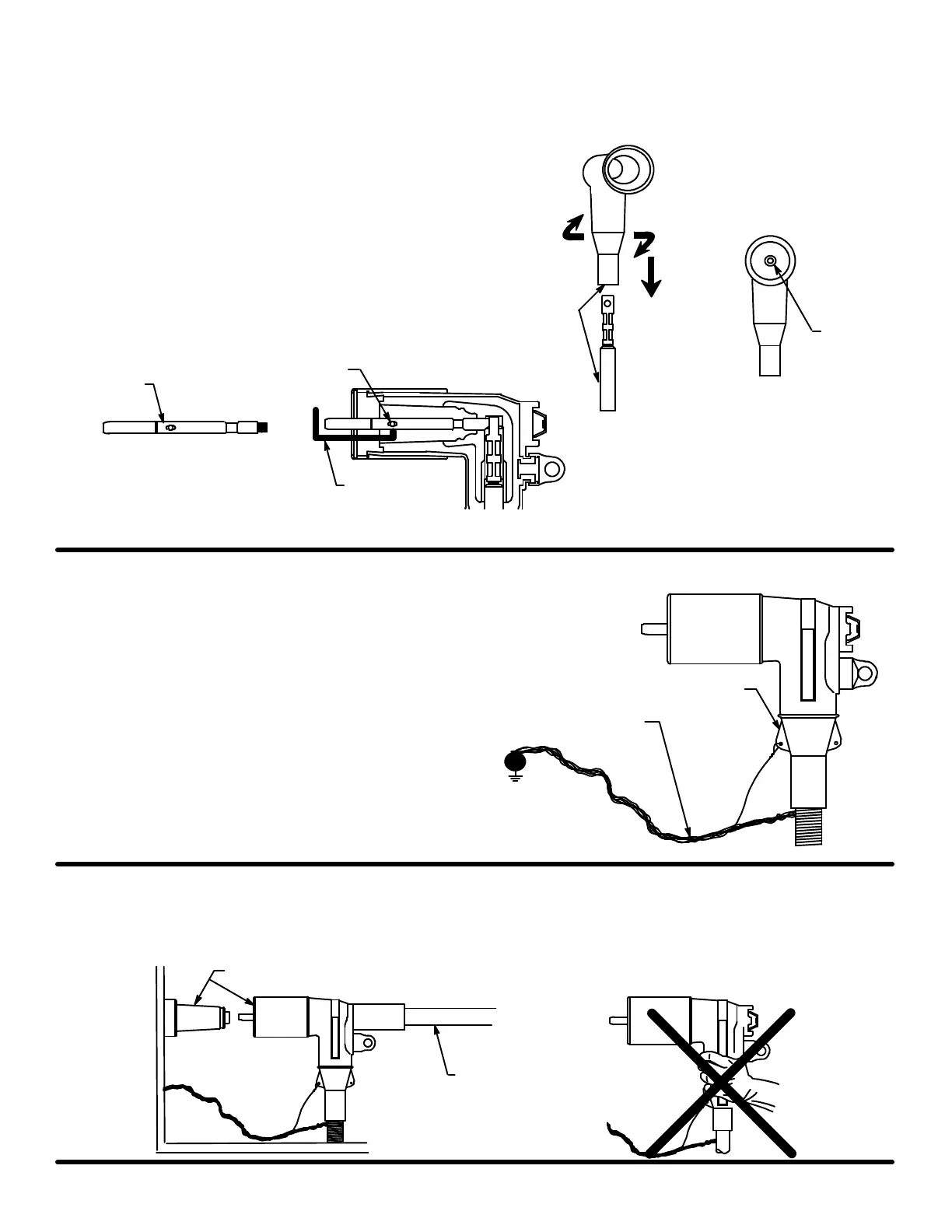

STEP 3 ELBOW ASSEMBLY
A. Lubricate the cable insulation and inside the elbow
housing with the lubricant supplied. DO NOT
SUBSTITUTE. Other lubricants may be harmful to this
product or its mating product(s). Keep insulation
clean of dirt and grime.
B. Slide the elbow connector onto the cable with a back
and forth twisting motion. Wipe off all excess grease.
C. Align elbow with compression lug’s threaded hole.
D. Thread probe into lug by hand, taking care not to
cross---thread. The probe must turn freely for
approximately four turns before becoming snug.
Tighten with wrench until wrench bends.
STEP 4 CONCENTRIC NEUTRAL CONNECTION
A. Using a separate copper wire (No. 14 AWG / 2.5mm) or
equivalent, insert one end through the grounding eye
on the elbow. Twist tight taking care not to damage the
eye.
B. Twist all neutral wires and connect to ground using
appropriate connector. Provide adequate slack in
wires for elbow operation.
Grounding
Eye
Provide Slack
for Operation
STEP 5 CONNECT ELBOW AND BUSHING PLUG
A. Lubricate the receptacle portion of the elbow connector and the mating bushing with the lubricant supplied. LUBRICATE
ONLY IF THE TRANSFORMER AND ELBOW ARE KNOWN TO BE DE---ENERGIZED.
B. Operate per following instructions. DO NOT OPERATE BY HAND.
Lubricate only if known to be de---energized
Hotstick
To Next Page
