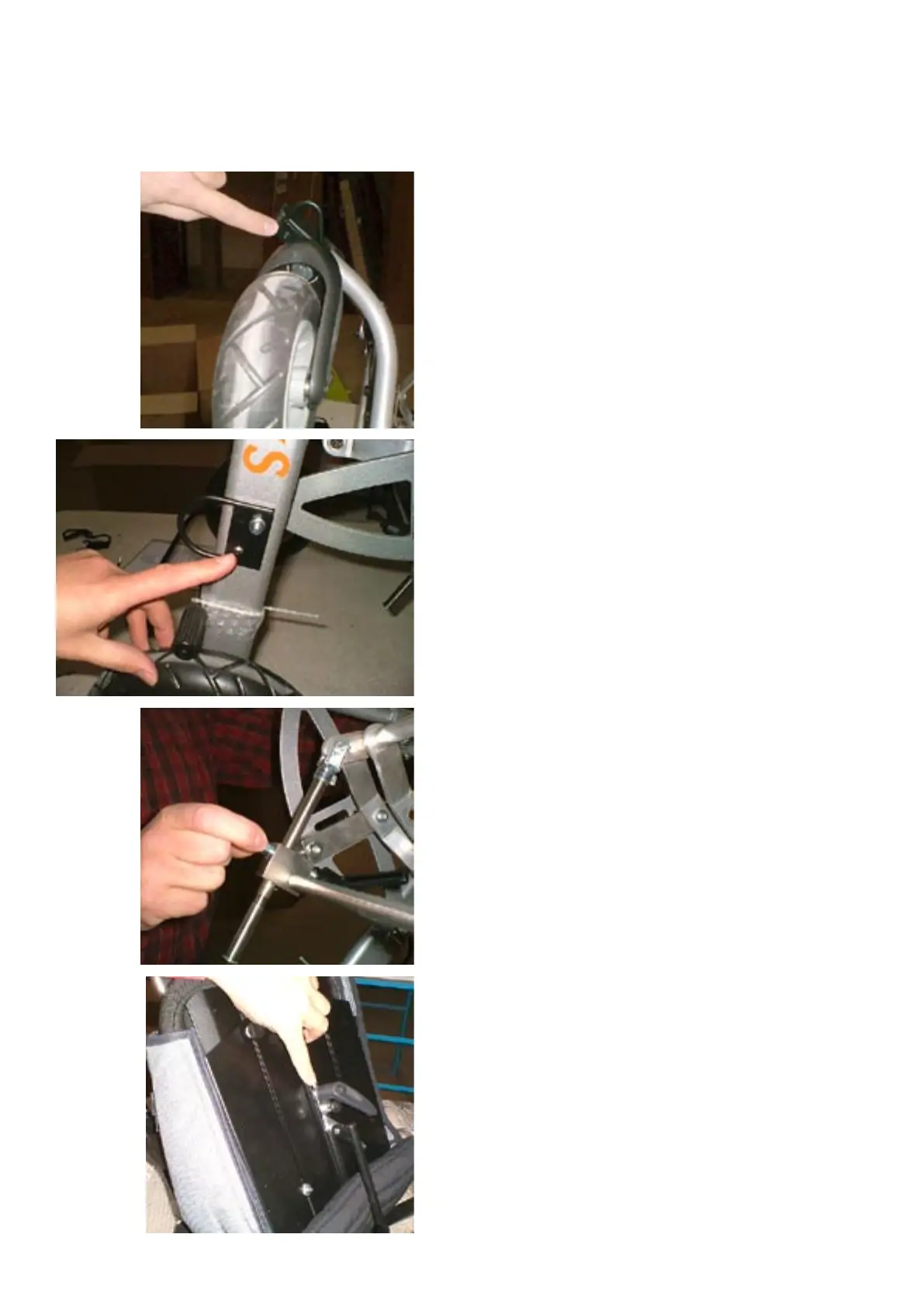

5. Align the tie down loop and drill a hole with
a diameter of 4,2mm. Fasten the screw.
6. Mount the rear tie down loops. Drill a hole
with a diameter of 6,2mm and screw-on the
tie down loop.
7. Mount the safety pin to the seat-tilt bar.
8. Mount the breaker plate and the safety pin
to the seat unit (this applies for the size 1 seat
only, as these items are standard
at the size 2 seat).
Mounting Instruction Tie Down System JAZZ EASyS
