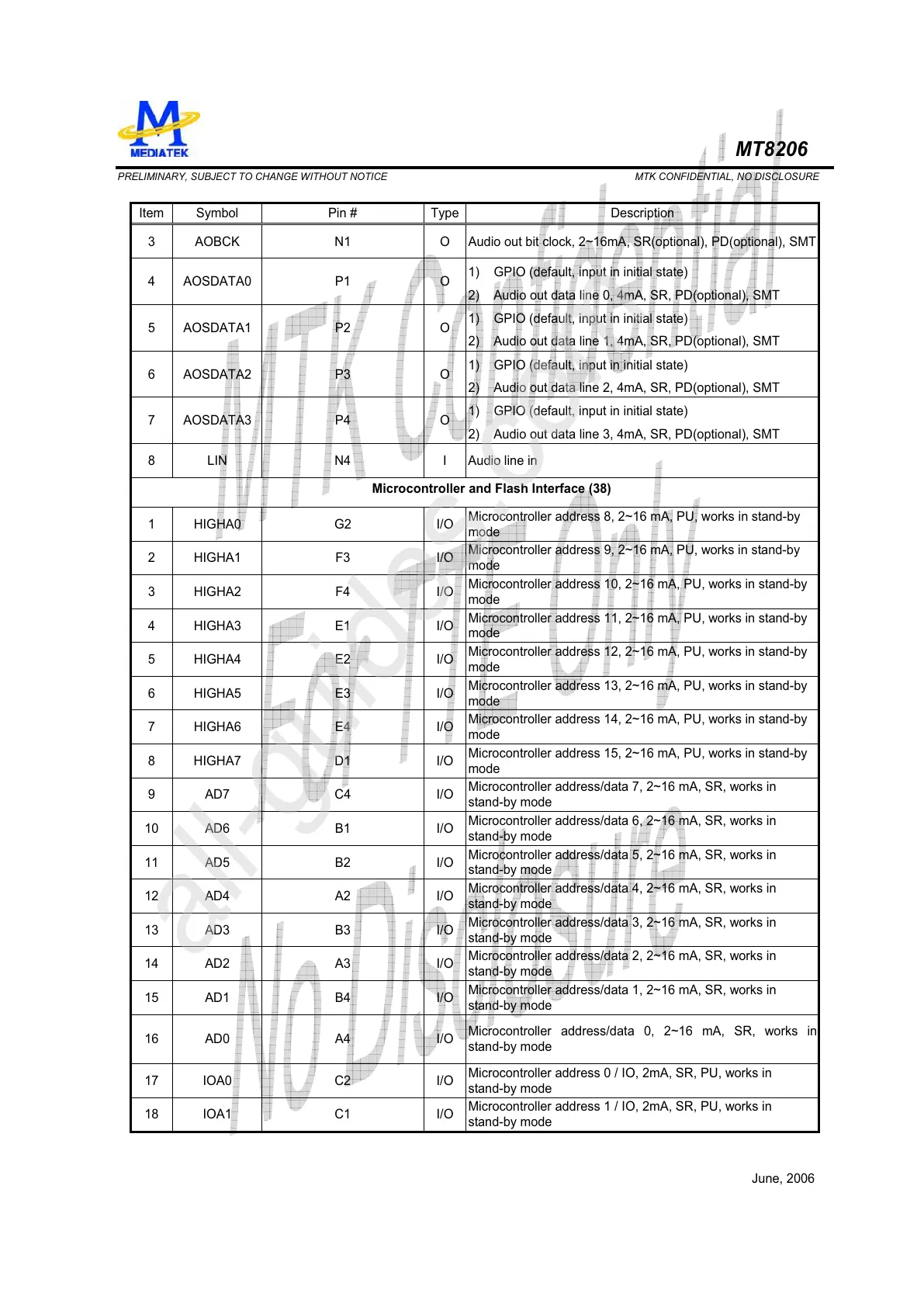

MT8206
PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE
June, 2006
Item Symbol Pin # Type Description
3 AOBCK N1 O Audio out bit clock, 2~16mA, SR(optional), PD(optional), SMT
4 AOSDATA0 P1 O
1) GPIO (default, input in initial state)
2) Audio out data line 0, 4mA, SR, PD(optional), SMT
5 AOSDATA1 P2 O
1) GPIO (default, input in initial state)
2) Audio out data line 1, 4mA, SR, PD(optional), SMT
6 AOSDATA2 P3 O
1) GPIO (default, input in initial state)
2) Audio out data line 2, 4mA, SR, PD(optional), SMT
7 AOSDATA3 P4 O
1) GPIO (default, input in initial state)
2) Audio out data line 3, 4mA, SR, PD(optional), SMT
8 LIN N4 I Audio line in
Microcontroller and Flash Interface (38)
1 HIGHA0 G2 I/O
Microcontroller address 8, 2~16 mA, PU, works in stand-by
mode
2 HIGHA1 F3 I/O
Microcontroller address 9, 2~16 mA, PU, works in stand-by
mode
3 HIGHA2 F4 I/O
Microcontroller address 10, 2~16 mA, PU, works in stand-by
mode
4 HIGHA3 E1 I/O
Microcontroller address 11, 2~16 mA, PU, works in stand-by
mode
5 HIGHA4 E2 I/O
Microcontroller address 12, 2~16 mA, PU, works in stand-by
mode
6 HIGHA5 E3 I/O
Microcontroller address 13, 2~16 mA, PU, works in stand-by
mode
7 HIGHA6 E4 I/O
Microcontroller address 14, 2~16 mA, PU, works in stand-by
mode
8 HIGHA7 D1 I/O
Microcontroller address 15, 2~16 mA, PU, works in stand-by
mode
9 AD7 C4 I/O
Microcontroller address/data 7, 2~16 mA, SR, works in
stand-by mode
10 AD6 B1 I/O
Microcontroller address/data 6, 2~16 mA, SR, works in
stand-by mode
11 AD5 B2 I/O
Microcontroller address/data 5, 2~16 mA, SR, works in
stand-by mode
12 AD4 A2 I/O
Microcontroller address/data 4, 2~16 mA, SR, works in
stand-by mode
13 AD3 B3 I/O
Microcontroller address/data 3, 2~16 mA, SR, works in
stand-by mode
14 AD2 A3 I/O
Microcontroller address/data 2, 2~16 mA, SR, works in
stand-by mode
15 AD1 B4 I/O
Microcontroller address/data 1, 2~16 mA, SR, works in
stand-by mode
16 AD0 A4 I/O
Microcontroller address/data 0, 2~16 mA, SR, works in
stand-by mode
17 IOA0 C2 I/O
Microcontroller address 0 / IO, 2mA, SR, PU, works in
stand-by mode
18 IOA1 C1 I/O
Microcontroller address 1 / IO, 2mA, SR, PU, works in
stand-by mode
