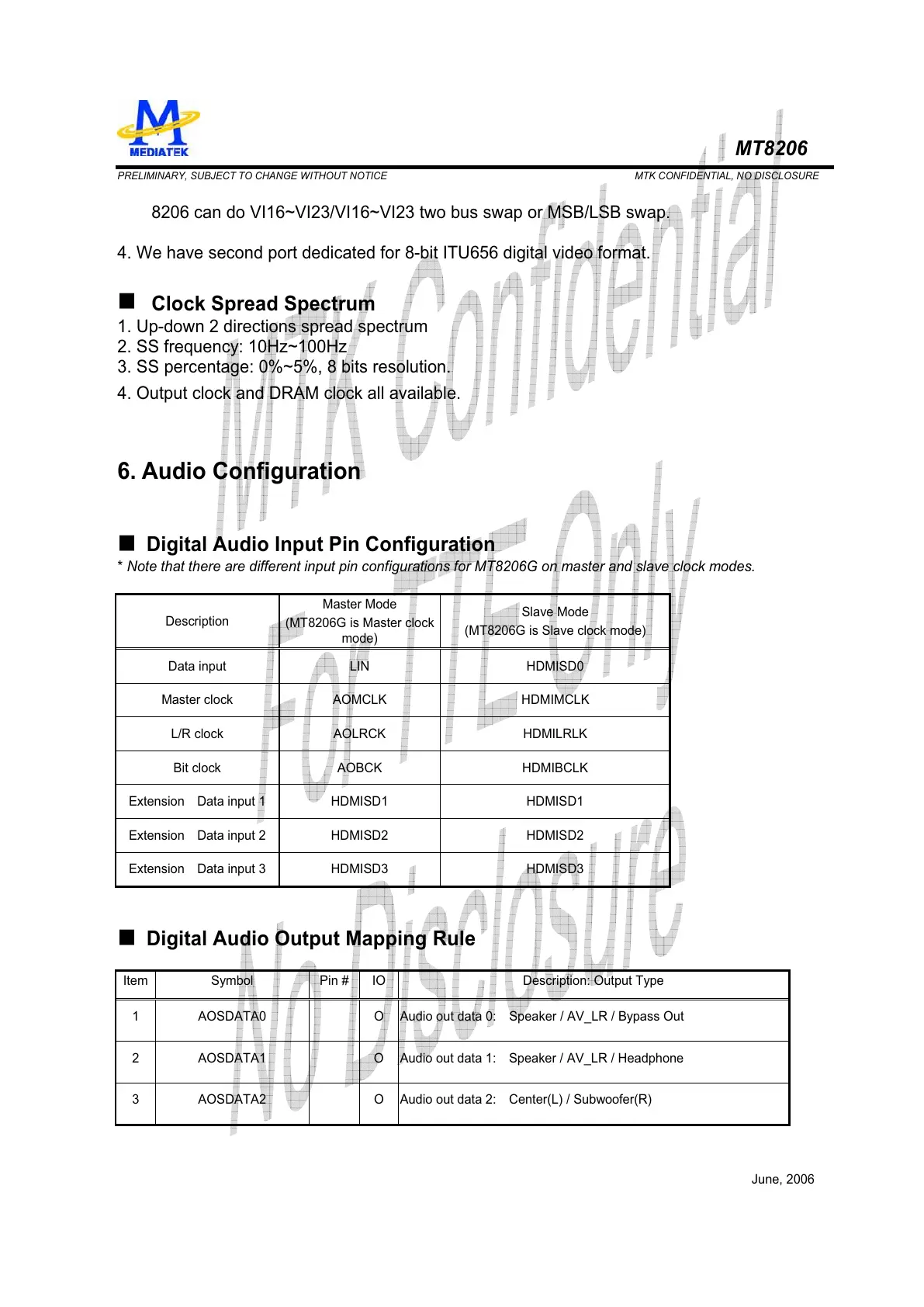

MT8206
PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE
June, 2006
8206 can do VI16~VI23/VI16~VI23 two bus swap or MSB/LSB swap.
4. We have second port dedicated for 8-bit ITU656 digital video format.
Clock Spread Spectrum
1. Up-down 2 directions spread spectrum
2. SS frequency: 10Hz~100Hz
3. SS percentage: 0%~5%, 8 bits resolution.
4. Output clock and DRAM clock all available.
6. Audio Configuration
Digital Audio Input Pin Configuration
* Note that there are different input pin configurations for MT8206G on master and slave clock modes.
Description
Master Mode
(MT8206G is Master clock
mode)
Slave Mode
(MT8206G is Slave clock mode)
Data input LIN HDMISD0
Master clock AOMCLK HDMIMCLK
L/R clock AOLRCK HDMILRLK
Bit clock AOBCK HDMIBCLK
Extension Data input 1 HDMISD1 HDMISD1
Extension Data input 2 HDMISD2 HDMISD2
Extension Data input 3 HDMISD3 HDMISD3
Digital Audio Output Mapping Rule
Item Symbol Pin # IO Description: Output Type
1 AOSDATA0 O Audio out data 0: Speaker / AV_LR / Bypass Out
2 AOSDATA1 O Audio out data 1: Speaker / AV_LR / Headphone
3 AOSDATA2 O Audio out data 2: Center(L) / Subwoofer(R)
