MT8206
PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE
June, 2006

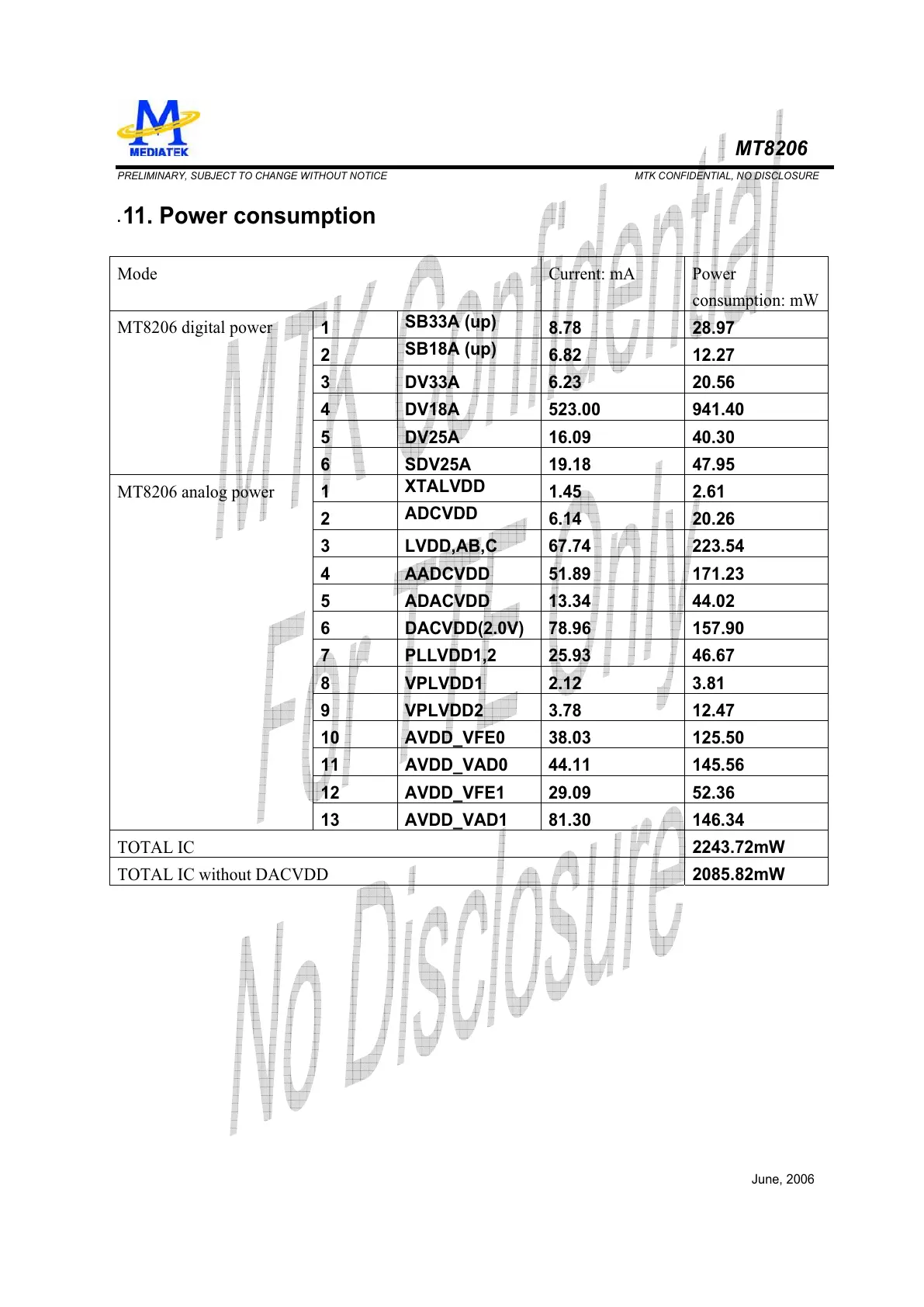

 11. Power consumption
Mode Current: mA Power
consumption: mW
1
SB33A (up)
8.78 28.97
2
SB18A (up)
6.82 12.27
3 DV33A 6.23 20.56
4 DV18A 523.00 941.40
5 DV25A 16.09 40.30
MT8206 digital power
6 SDV25A 19.18 47.95
1
XTALVDD
1.45 2.61
2
ADCVDD
6.14 20.26
3 LVDD,AB,C 67.74 223.54
4 AADCVDD 51.89 171.23
5 ADACVDD 13.34 44.02
6 DACVDD(2.0V) 78.96 157.90
7 PLLVDD1,2 25.93 46.67
8 VPLVDD1 2.12 3.81
9 VPLVDD2 3.78 12.47
10 AVDD_VFE0 38.03 125.50
11 AVDD_VAD0 44.11 145.56
12 AVDD_VFE1 29.09 52.36
MT8206 analog power
13 AVDD_VAD1 81.30 146.34
TOTAL IC
2243.72mW
TOTAL IC without DACVDD
2085.82mW
