Your portable air conditioner allows you to install and move easily to the desired location.
Connect the exhaust hose to the back of the unit.
Deploy the exhaust hose to the desired length and connect the ventilation nozzle
toward outdoor through the window.

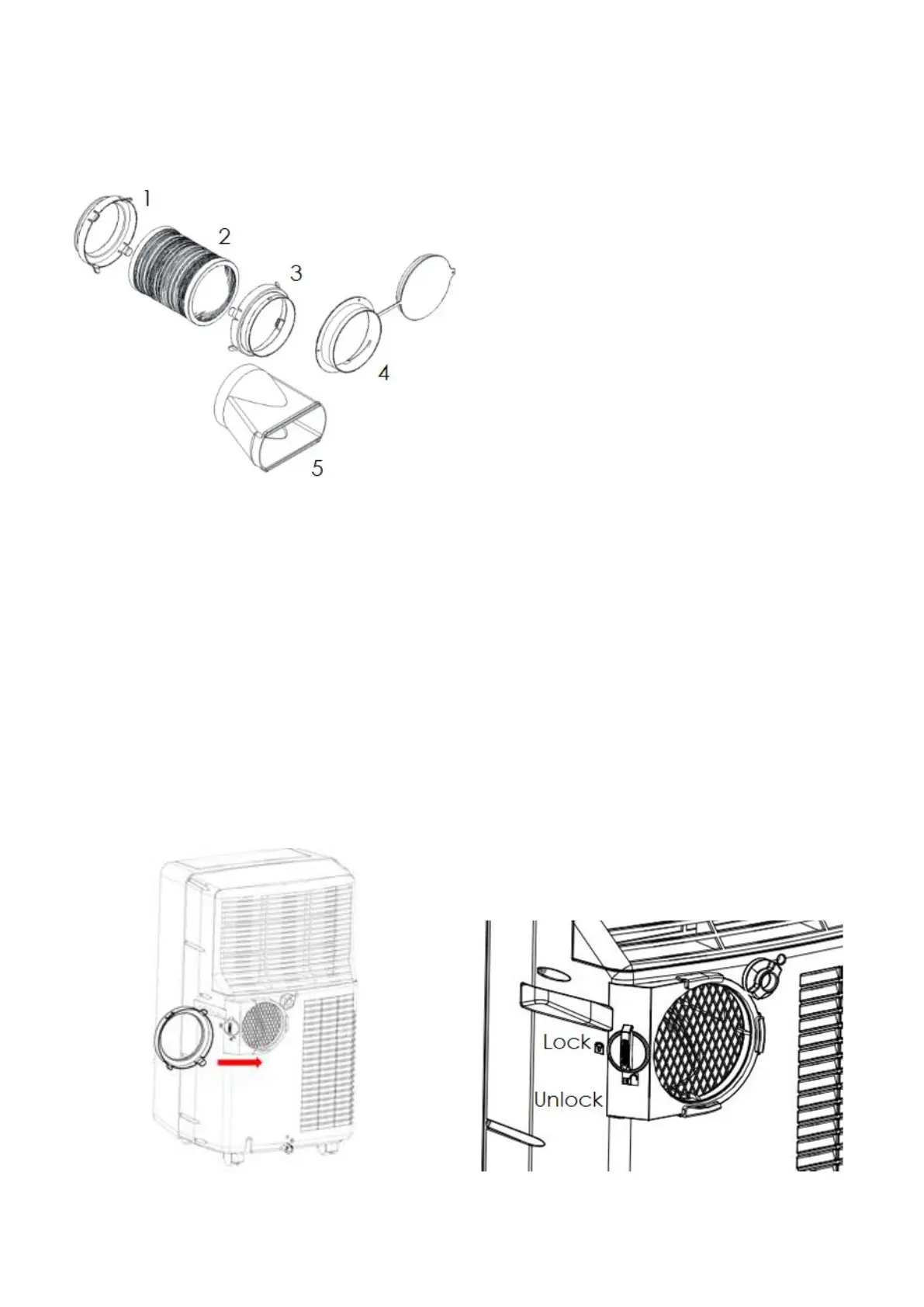

4- Connector to the back of the unit 4- Fixture & cap
5- Exhaust hose 5- Exhaust Nozzle
6- Connector to fixture or nozzle
=> EXHAUST HOSE ASSEMBLY AND INSTALLATION
- “Click” the connectors (part 1 & 3) to the both ends of the exhaust hose (part 2).
- Part 1 is the exhausted connector to the unit, part 3 is the exhausted connector to the
fixture & cap or the exhaust nozzle.
- Slide the part 1 with the hose assembly into the rear panel of the unit and lock the
assembly firmly by switching the knob.
GB-5
