EN-5

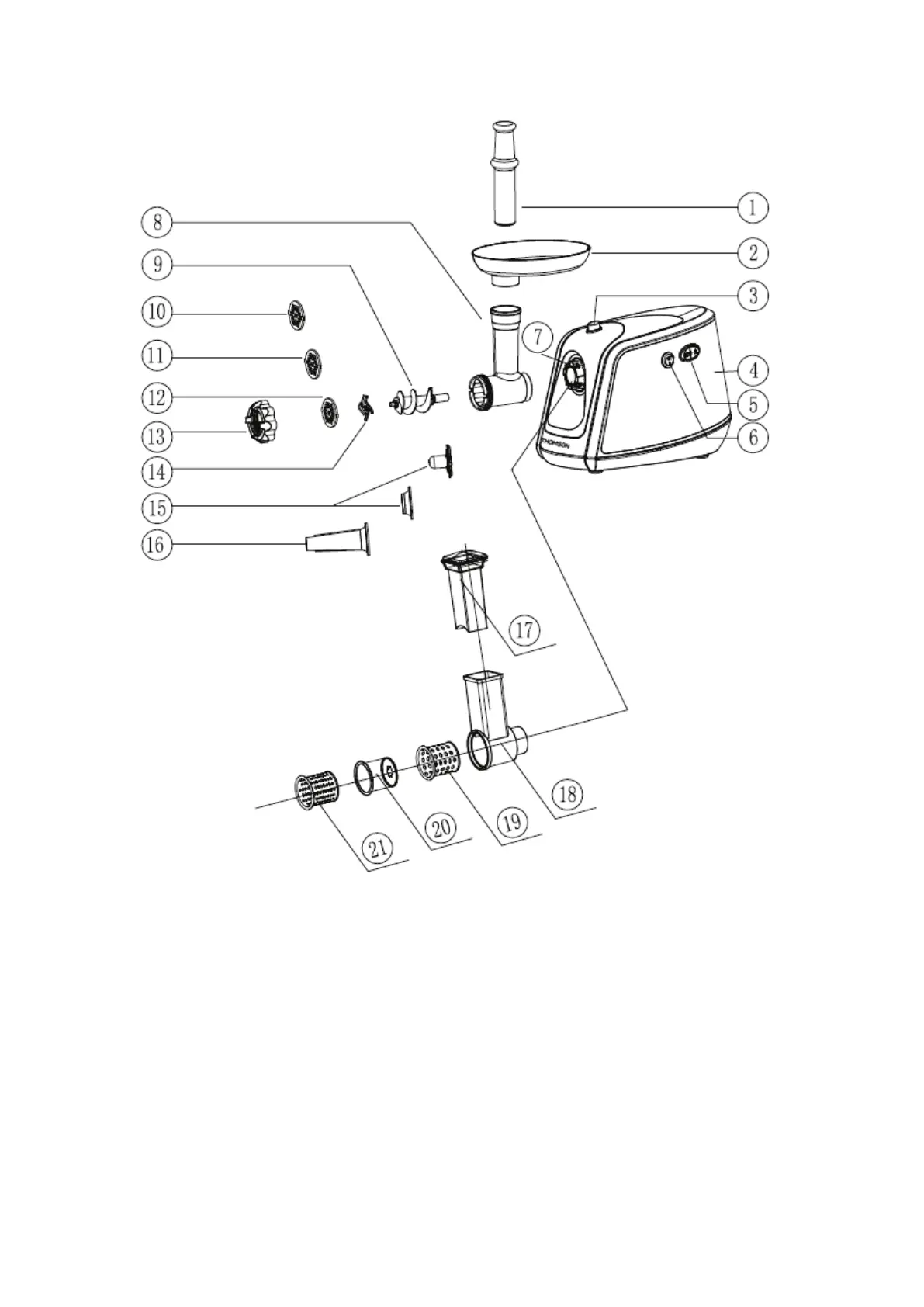

DESCRIPTION
1. Food pusher 12. Cutting plate (coarse)
2. Hopper plate 13. Fixing ring
3. Push knob 14. Cutting blade
4. Motor housing 15. Kibbe attachment
5. ON
/OFF/ Reverse switch 16. Sausage attachment
6. ON/ Reverse switch 17. Vegetable slicer pusher
7. Head inlet 18. Vegetable slicer body
8. Head 19. Coarse grater
9. Feed screw 20. Slicer
10. Cutting plate (fine) 21.
Cutting attachment
11. C
utting plate (medium)
FOR THE FIRST USE
Check that voltage indicated on the rating label corresponds the main voltage in your home.
Wash all parts (except body) in warm soapy water.
Before plugging in, ensure the “ON/OFF/ Reverse” switch is turned to "OFF” position.
