Thor Kitchen HIM1555BLK - Water Supply; Drainage System Connection

11

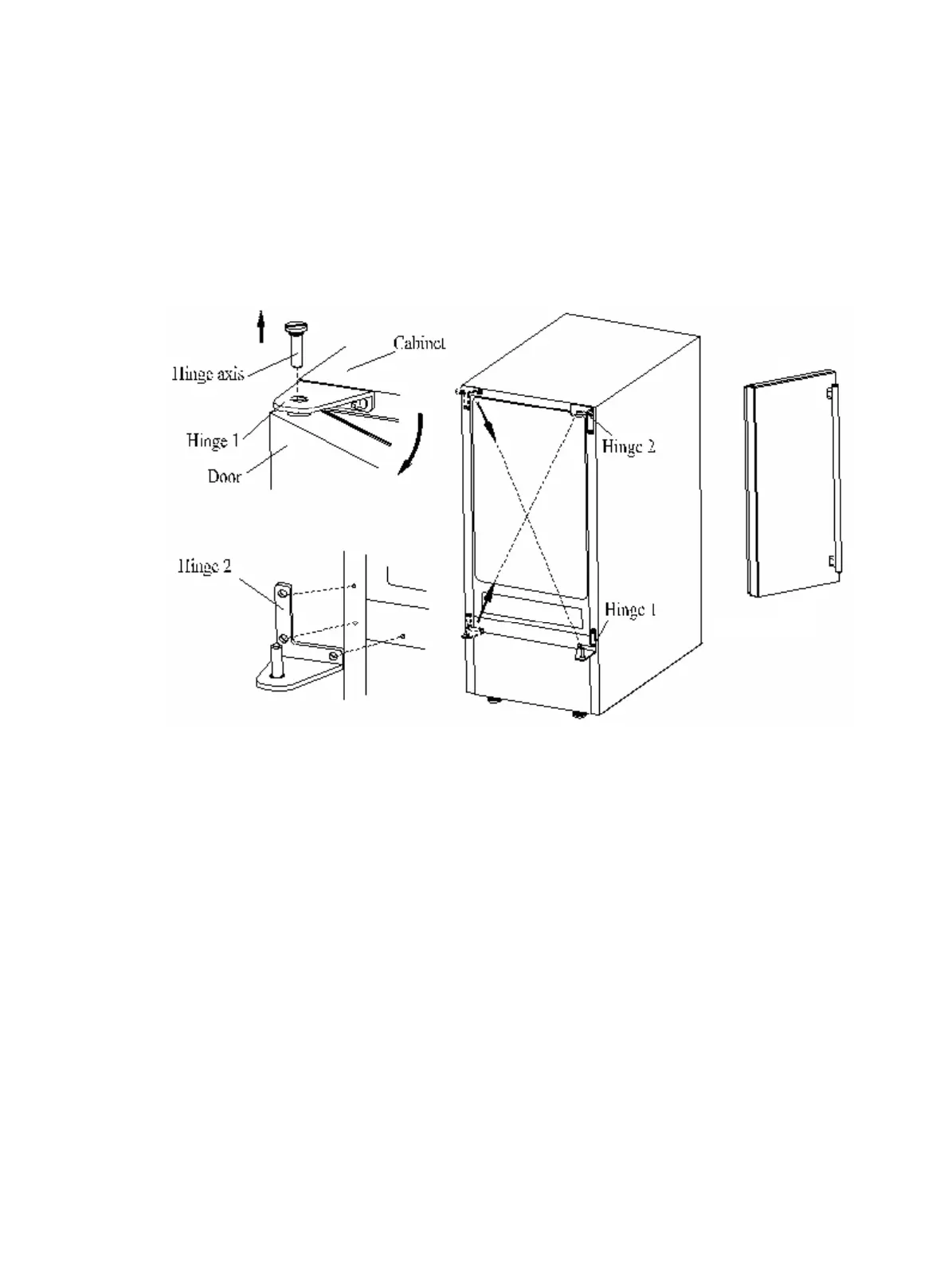

3. Remove the door hinge 2 and place it on the opposite top side. Separate the axis from
the hinge 2 and set it aside.
4. Keep the handle apart from the hinge side. Allign the door on the bottom hinge 1 and
replace axis on the hinge 2. Tighten it firmly.
5. Push the plug buttons into the original screw holes.
See Figure below.
