5
INSTALLATION GUIDE SME2-IS - 06|2021

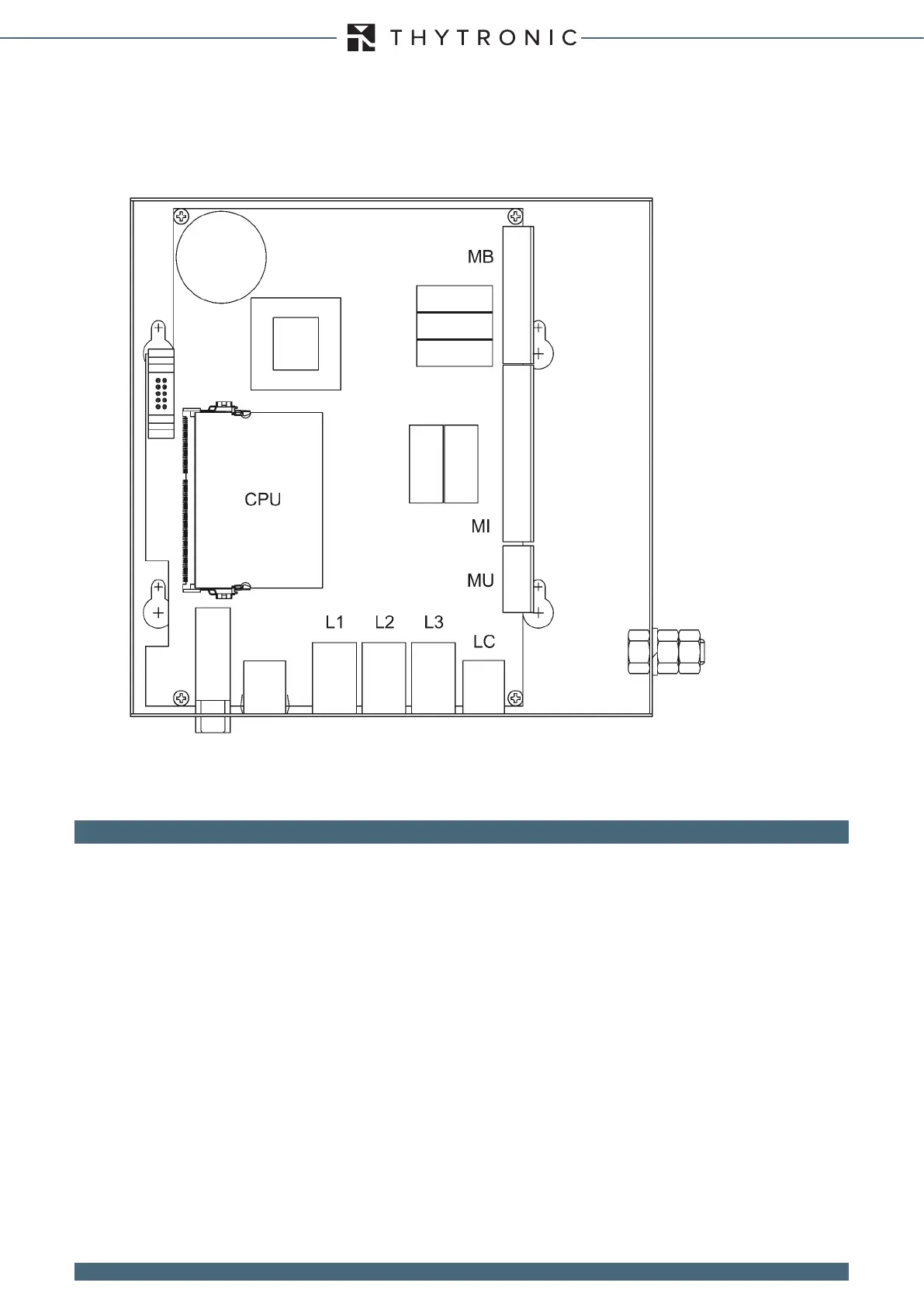

Terminal Board Connections
For the terminal blocks MB, MI, MU are available screw terminals, reachable inside the device, with
the following characteristics:
• cable section: from 0.2 to 2.5 mm
2
(AWG 30...12) for single wire
• tightening torque 0.5 Nm
• stripping length: 6 mm
Ground connection
It is requested the ground protection connection, that must be wired to the screw terminal provided
for that purpose.
Settings and commissioning
Settings of protection function can be made:
• Using a Personal Computer, with ThyVisor software installed.
• Locally using keyboard and display (MMI).
The ThyVisor sw is a viewer and configurator of data (setting, measure, etc..); it implements an en-
gine that is able to rebuild the menu set up and the relationships to data, concerning all Thytronic
protecion relays by means of XML files.
ThyVisor installation
The latest release of ThyVisor can be downloaded free of charge from the www.thytronic.it website.
ThyVisor use
Please refer to ThyVisor user manual for detailed instructions.
The document is available on www.thytronic.it.
