Spray the area with carb cleaner and blow out with compressed air – make sure no dirt
particles pass into the inlet needle and seat area as this can cause the carb to leak.
If your carburettor is not sealing:
It is necessary to fit a Needle & Seat Kit (233-721P) – this can be caused by dirt in the fuel or
if a foreign material becomes lodged between the inlet needle and seat and will no longer
seal.

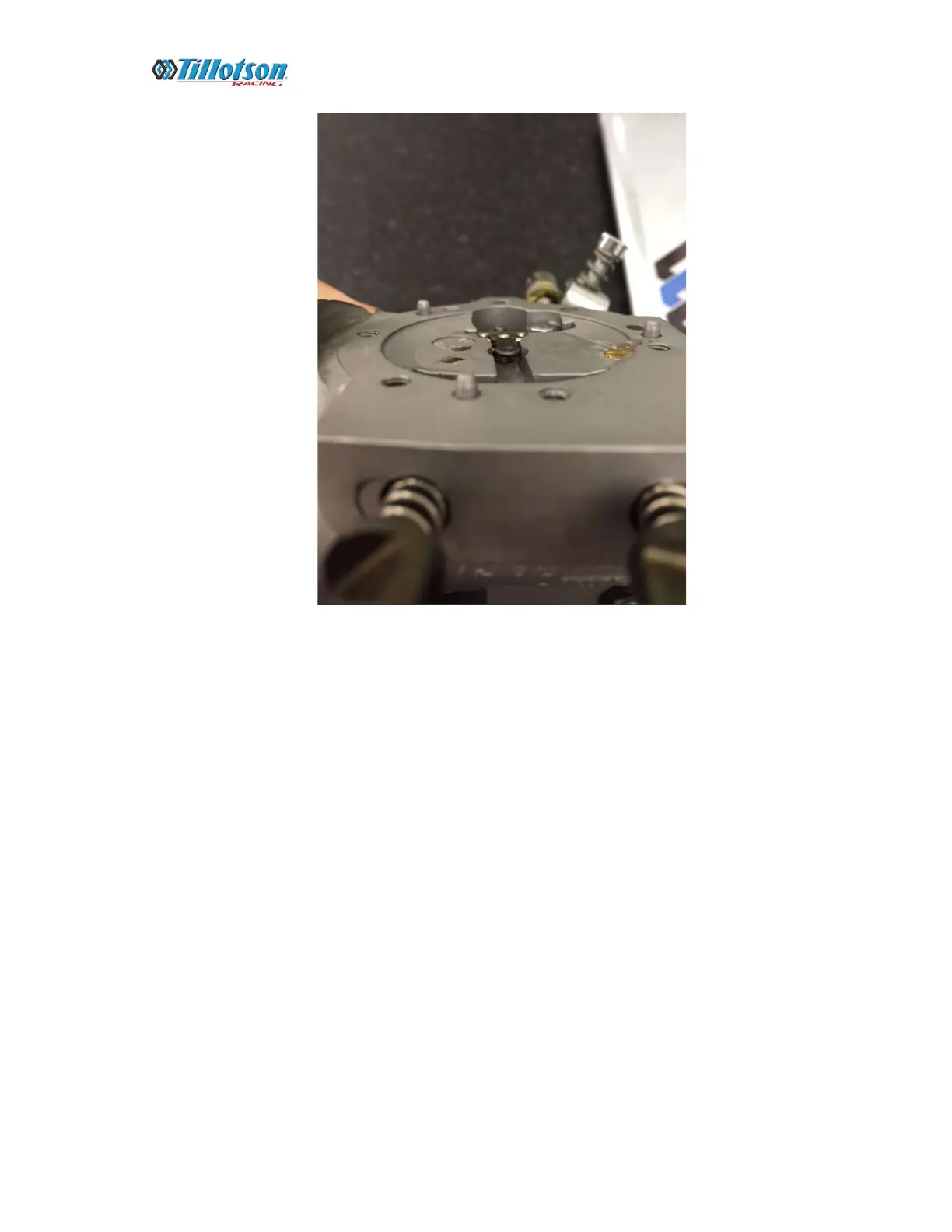

Having dismantled the metering and fuel pump plates, remove the screw holding in the inlet
fulcrum arm, inlet tension spring and inlet needle.
