3. Prepare Door before Installation
3.1. Make sure the following criteria are met so that the Smart Lock can be
installed properly :
•
Check the door status, make sure the door frame is aligned with the door.
•
There are no obstructions stuck in the door frame.
•
Leave enough space for the deadbolt to extend into the door frame when
the door is locked.

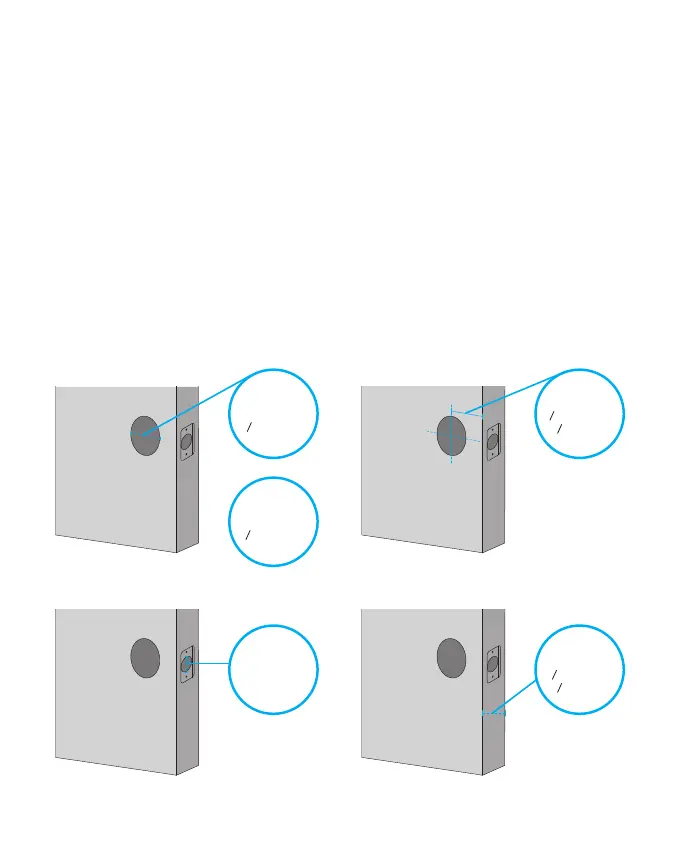

3.2. Check the door / frame dimensions to make sure they fit the following
measurements before installation:
•
The cross bore diameter (2 ’’ / 54mm or 1 ’’ / 38mm)
•
Backset (2 ’’ / 60mm or 2 ’’ / 70mm)
•
Diameter of the door hole (1’’ / 25mm). The door hole center and cross bore
center should be aligned at the same horizontal level.
•
Door thickness (1 ’’ / 35mm - 2 ’’ / 55mm)
Cross bore
diameter
2 ” or 54mm
1
8
Cross bore
diameter
1 ” or 38mm
1
2
or
Backset
2 ”/ 60mm or
3
8
2 ”/ 70mm
3
4
Door hole
diameter
1” or 25 mm
Door thickness
1 ”/ 35mm -
3
8
2 ”/ 55mm
1
8
- 03 -
