Installing RadianceRail
®
with Balusters
6
7

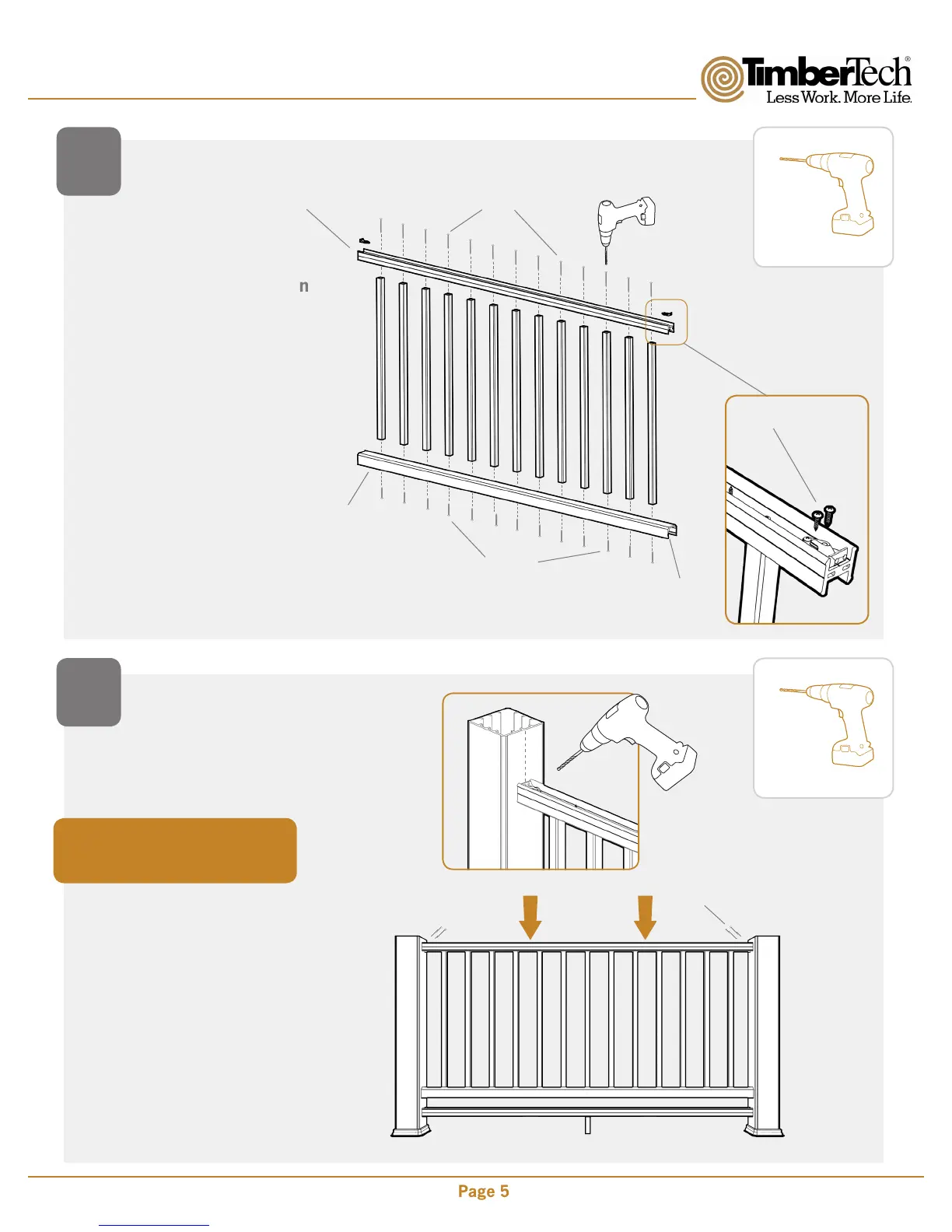

ASSEMBLE BALUSTER
SECTION
INSTALL RAIL
ASSEMBLY
• Attach Mounting Brackets
at each end of the Top
Support Rail as outlined in
Step 3.
Position rail assembly with lip of
Bottom Rail toward outside of
deck, over bottom Support Rail.
• Align top Support Rail to
center of posts.
Top Support
Rail
Bottom Rail
Lip (facing out)
See step 3 for
bracket installation
#8 x 3” Coated
Green Screws
Align to center
of post
7/64” Pre-Drill
#8 x 3” Coated Screws
Pre-Drill 7/64”
#8 x 3/4” Coated Screws
#8 x 2” Coated Screws
To Next Page
