Twist cover anti-clock wise
Align marks on moulding
Remove decorative cover
Cable
gasket
Mounting
screws
Top cover

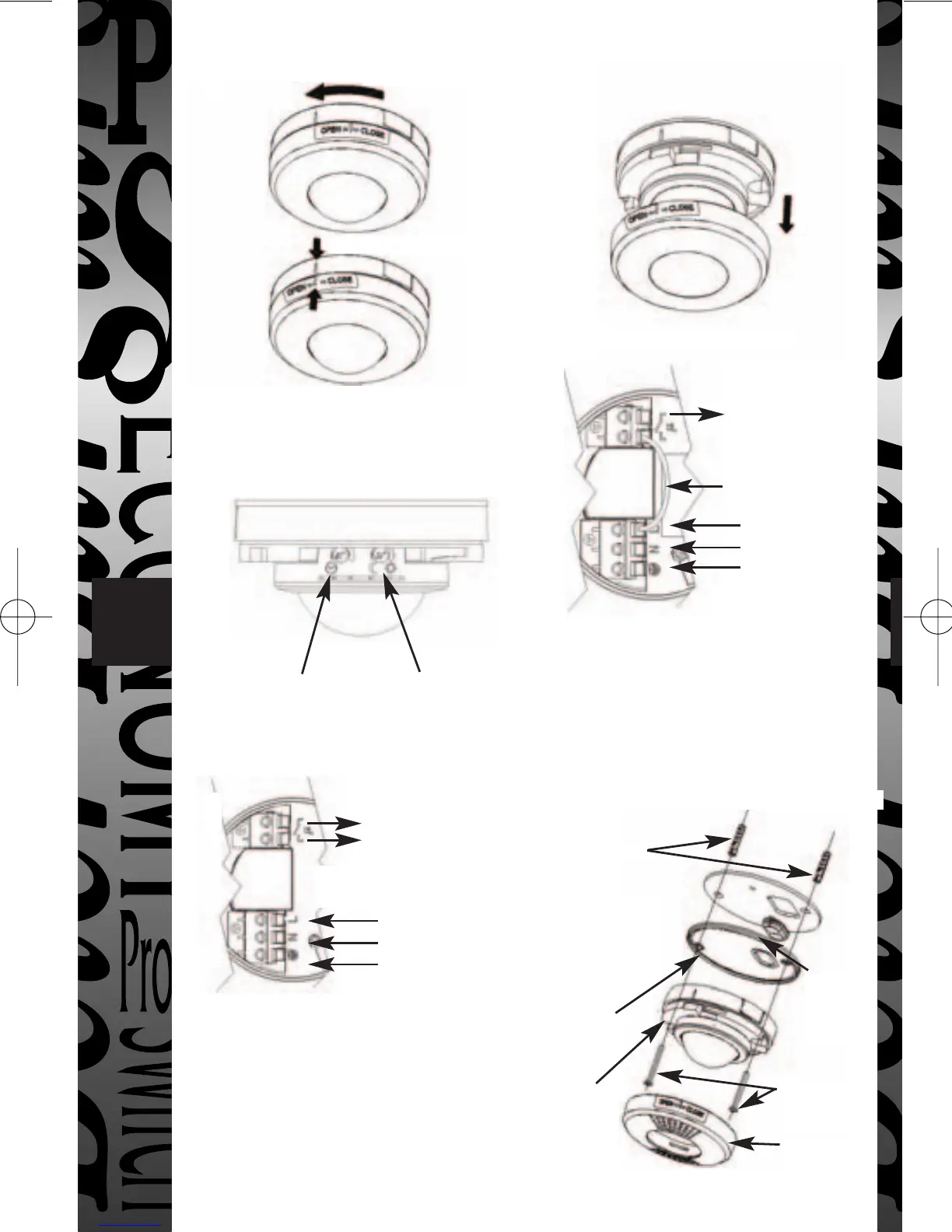

Ceiling mount assembly method.
L1
L1
L2
L
N
E
L
N
E
Switched
Load
OUT
Switched
Load
OUT
Factory fitted
bridge wire
Factory fitted
bridge wire REMOVED
Time On
setting
Lux -
Dusk/Dawn
setting
Mains Supply IN
Mains Supply IN
In the above illustration:
- 4 core cable may be used
- there is no external junction box
- A bridge is provided, prewired to bridge
across live supply from AC mains to the
output load
In the above illustration:
- the L1 L2 terminals are used to control a DC
load or if the load uses a different phase or
voltage supply from the AC mains in.
- factory fitted bridge must be removed to
isolate L1 & L2 terminals from AC mains in.
Sponge gasket.
Fit if mounting
the unit outdoors.
Discard if fitting
indoors
Mounting
Plate
Sensor
Wall plugs x 2.
