INSTALLATION
Connect the 3-phase power to the terminals marked A,
B, and C.
Connect the control circuit wiring to one set of the
output terminals.
(Optional) Connect the second set of output terminals
to an alarm circuit, or to the control circuit of a second
load.

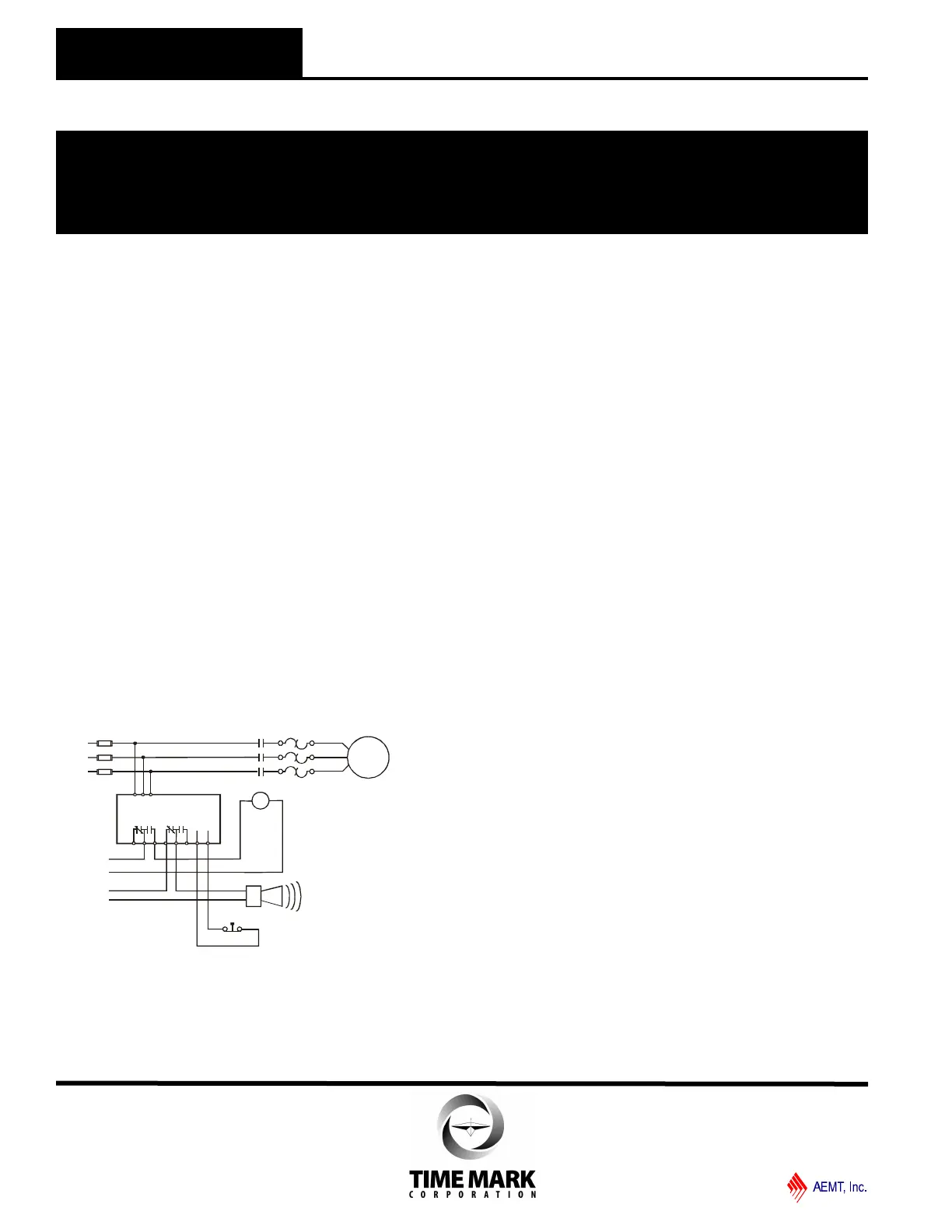

A standard wiring diagram is shown in the TYPICAL
APPLICATION drawing. The contact markings are
shown in the TRIPPED, or Power-OFF condition.
FOR MANUAL RESET, instead of the built-in automatic
reset, install a normally-closed pushbutton switch
across the terminals marked RESET. The manual reset
leads should be kept as short as possible.
ADJUSTMENT
NOTE: When adjusting the Model 2652, you may
want to jumper the control circuit contacts, and
disconnect the alarm contacts connection, to
prevent the unit from cycling the load, during set-
up.
Turn the VOLTAGE ADJUST, RESET DELAY, and the
TRIP DELAY pots fully counter-clockwise.
Turn the VOLTAGE ADJUST clockwise, until the unit
trips (NORMAL indicator OFF; TRIP indicator ON).
Slowly turn the VOLTAGE ADJUST counter-clockwise
until the unit resets (TRIP indicator OFF).
Set the TRIP DELAY and RESET DELAY to the desired
time settings.
This trip level adjustment will be correct for most
applications.
The TRIP DELAY should help prevent nuisance tripping
due to power flucuations, or motor start-ups. Should
nuisance tripping still occur, increase the delay time a
little, or turn the VOLTAGE ADJUST slightly farther
counter-clockwise.
WARRANTY
The Model 2652 3-Phase Monitor is covered by Time
Mark Corporation’s exclusive 5-Year Unconditional
Warranty. Should this device fail, for any reason, within
five years from the date of purchase, we will repair or
replace it free. Contact the Time Mark Sales
department, Monday through Friday; 8 a.m. to 5 p.m.,
CST, for further details.
Alarm (optional)
M
M
Motor
M
L1
L2
L3
Control
circuit
Alarm
circuit
O/L
M
A BC
Model 2652
RESET
Manual reset (omit for auto reset)
All schematics are shown with no power applied
TYPICAL APPLICATION
MODEL 2652
3-Phase Monitor
READ ALL INSTRUCTIONS BEFORE INSTALLING, OPERATING OR SERVICING THIS DEVICE.
KEEP THIS DATA SHEET FOR FUTURE REFERENCE.
GENERAL SAFETY
POTENTIALLY HAZARDOUS VOLTAGES ARE PRESENT AT THE TERMINALS OF THE MODEL 2652.
ALL ELECTRICAL POWER SHOULD BE REMOVED WHEN CONNECTING OR DISCONNECTING WIRING.
THIS DEVICE SHOULD BE INSTALLED AND SERVICED BY QUALIFIED PERSONNEL.
Installation Instructions
TIME MARK is a division of
Telephone: Main - (918) 438-1220
Sales - (800) 862-2875
Fax: (918) 437-7584
E-mail: sales@time-mark.com
Internet: http://www.time-mark.com
Doc No. 87A170 12/00
© 2000 TIME MARK CORPORATION
11440 East Pine Street
Tulsa, Oklahoma 74116
Shows No Power Applied
