Disassembling procedures Figs. Lubricating : Types of oil Oil quantity
Reassembling procedures Figs.
Moebius A Normal quantity
Moebius Ｆ
Hour, minute 0012 079
second hands Auxiliary Train wheel bridge screw
Chronograph minute
second hands
24-Hour indicator 0126 357
Auxiliary train wheel bridge
Dial
0157 011
Small hour hand wheel
0886 003
Intermediate chronograph
minute wheel and pinion (B) 0817 357
Intermediate small hour
hand wheel
0902 007
Chronograph minute wheel
0886 001 0885 002
Intermediate chronograph Intermediate chronograph
minute wheel and pinion (A) second wheel
0888 008
Chronograph second wheel
0271 406
Hour wheel
*All parts code are subject to change without notice.
Version-03
D54B

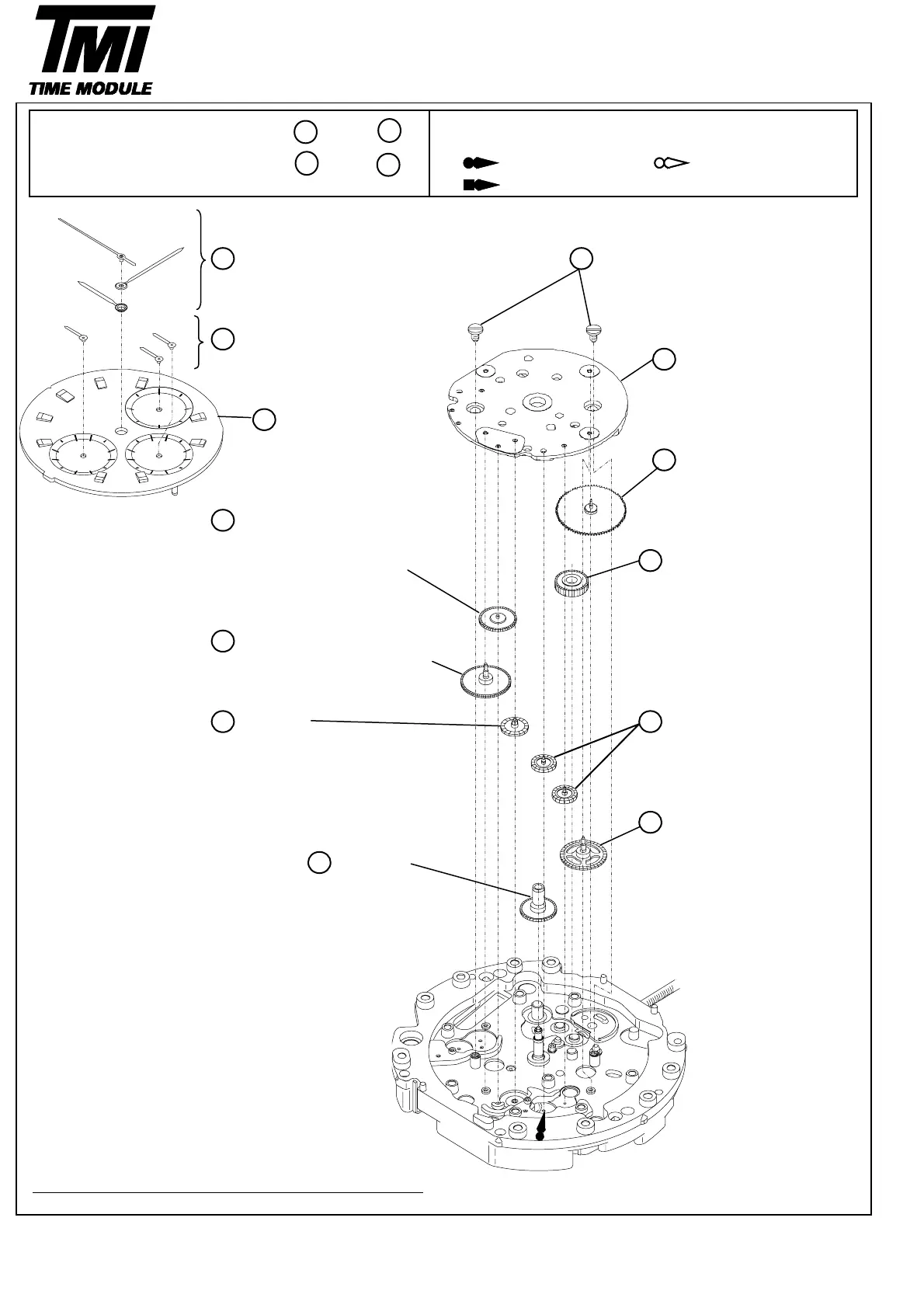

PARTS CATALOGUE
1
3
1
1
⇒
39
39
⇒
6
7
8
2
2
SII Products
4
12
9
5
13
11
10
To Next Page
