Time Module VD54B - Page 18

0125 248

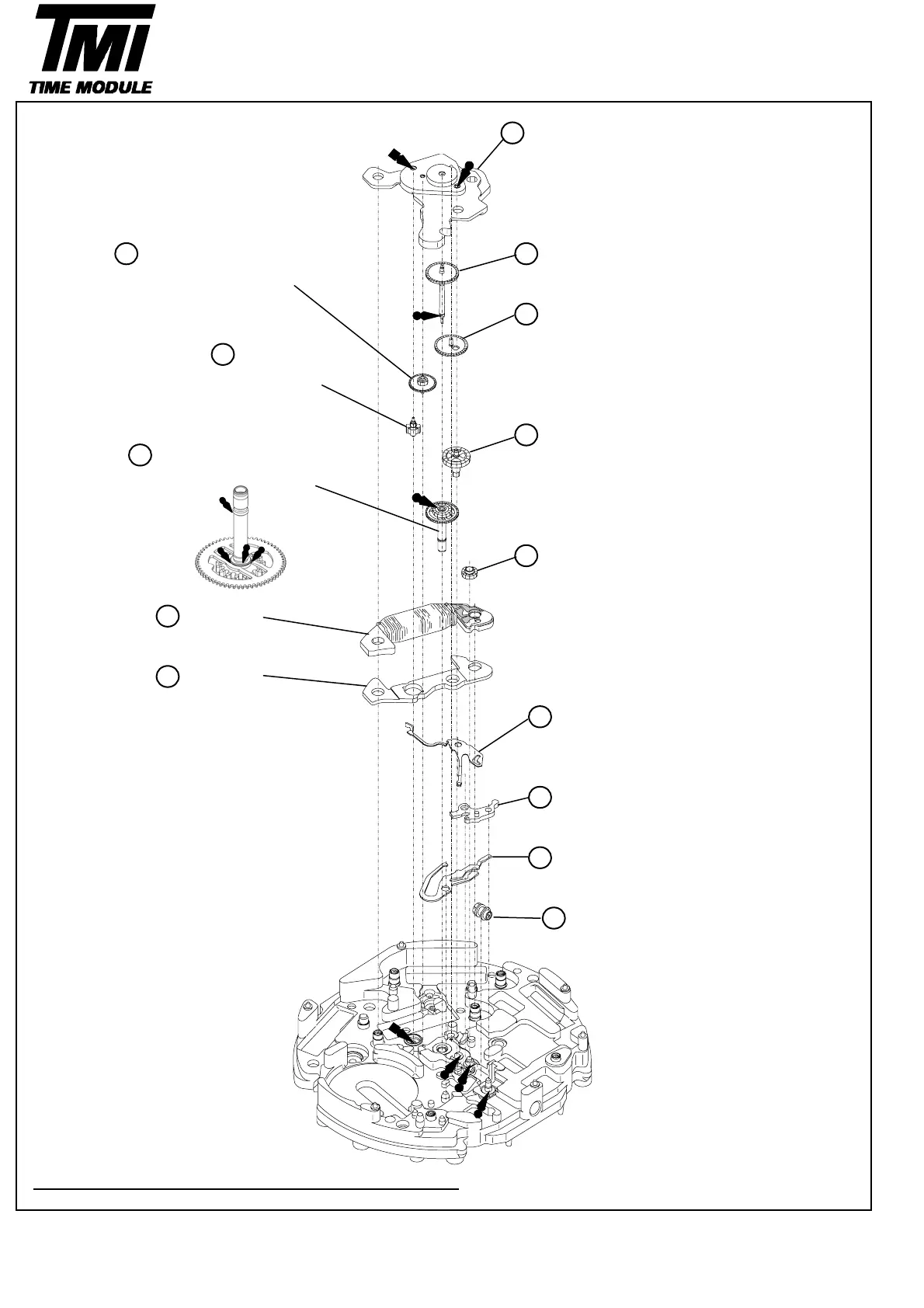

Train wheel bridge (A)
0701 904 0241 177
Fifth wheel and pinion (A) Fourth wheel and pinion
0231 904
Third wheel and
p
inion
4146 890
Step rotor (A)
0261 034
0221 156 Minute wheel and pinion
Center wheel and
p
inion
0281 904
Settin
g
wheel
4002 904
Coil block (A)
4239 357
Rotor stator
(
A
)
0391 357
Train wheel settin
g
lever
0383 470
Setting lever
0384 470
Yoke
0282 890
Clutch wheel
*All parts code are subject to change without notice.
29
30
39
31
32
33
34
35
36
37
26
4
