Time Module VD54B - Movement Specification - 2; OPERATION

Movement Specification - 2
OPERATION

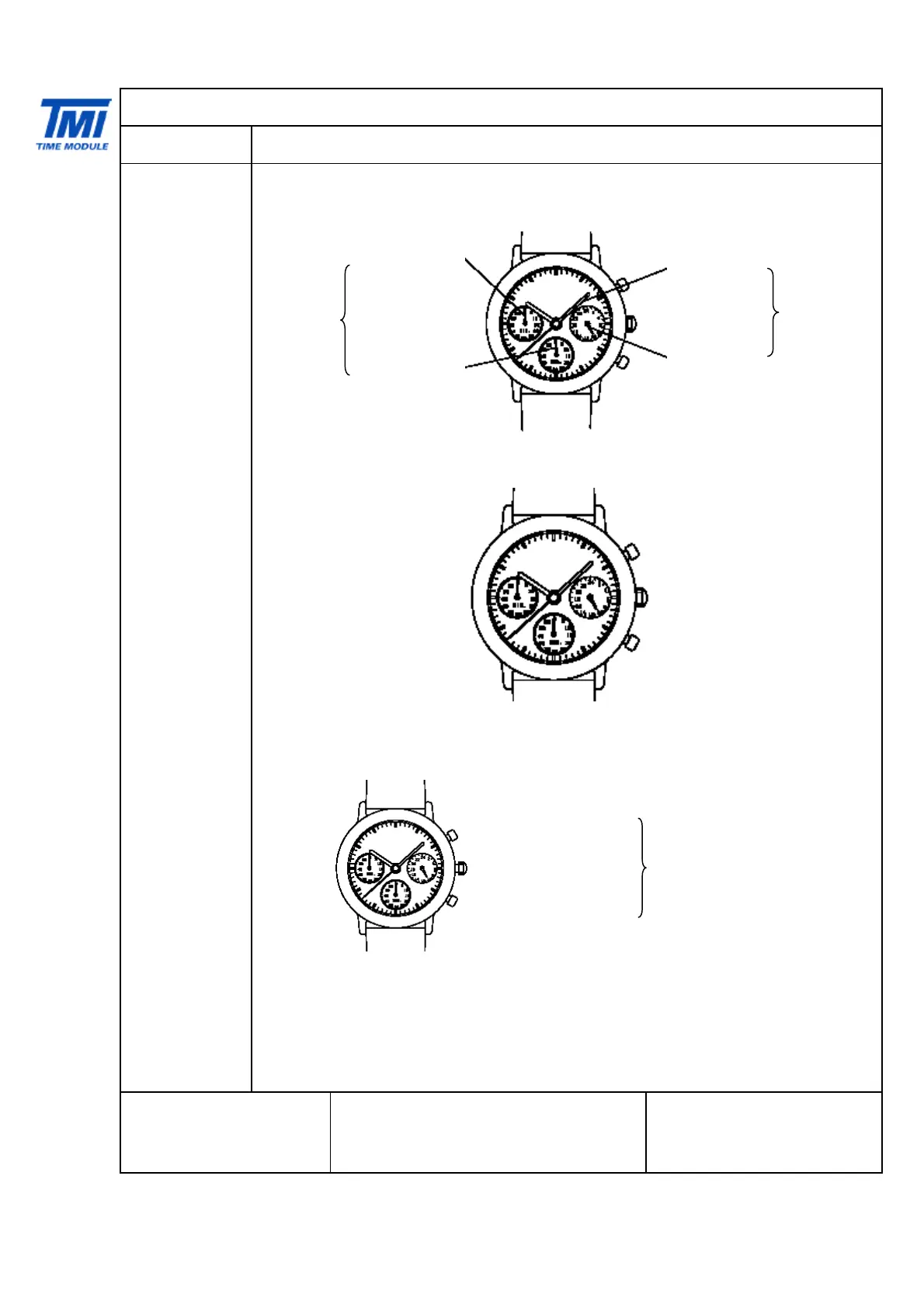

2 step motors ( 3 hands, 1 / 1 sec. chrono. maximum to 60 minutes )
1st click
adjusting minute, hour & chrono. hands
* Pull the crown to 1st click to adjust the stopwatch hand position.
* AC functions is available if stopwatch hand position is disorderly.
* When using AC functions, stopwatch hand moves back and returned to where it was
( second hand moves 1/2 circle counterclockwise and 1/2 circle clockwise )
Version 1
SII Products
CAL. VD54B
stopwatch
second hand
stopwatch
minute hand
3 hands
N
ormal position
AC FUNCTIONS
( KEEP BUTTONS
"A" AND "B"
PRESSED AT THE
SAME TIME FOR 2
SECONDS, AND
THEN, RELEASE
THE BUTTONS )
START
STOP
FREE
24h hands
linkage
linkage
SPLIT
RESET
ADJUSTING THE
STOPWATCH SEC.& MIN.
HAND POSITION
(CLOCKWISE )
TIMING SETTING
RESET SWITCH
SECOND SETTING DEVIC
E
ADJUSTING THE
STOPWATCH SEC. & MIN.
HAND POSITION
(COUNTERCLOCKWISE )
