The TIME 3200/3202 Surface Roughness Gauge is a cost-effective and portable instrument designed for measuring surface roughness in various industrial applications. It is suitable for on-site testing in production lines, workshops, and laboratories.

Function Description

The device measures and analyzes surface roughness parameters, providing a comprehensive assessment of surface texture. It supports over a dozen measurement parameters, making it versatile for different mechanical manufacturing processes. The gauge utilizes an inductive pickup to capture surface profiles, and the data can be displayed on a large LCD with backlight. For advanced analysis and data management, the device can be connected to a PC via RS232 and used with the TIMESurf software. This software allows for managing, analyzing, printing, and searching measured data and graphs, including MR and RK curves. The device also has on-site printing capabilities, enabling immediate documentation of results.

Important Technical Specifications

Models: TIME® 3200 and TIME® 3202

Roughness Parameters:

TIME® 3200: Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, Rmr.
TIME® 3202: Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, Rmr, Rpc, Rk, Rpk, Rvk, Mr1, Mr2.

Assessed Profiles: Roughness profile (R), Primary profile (P).

Measuring System: Metric, imperial.

Display Resolution: 0.001 µm.

Data Output: RS232.

Pickup Measuring Range: ±20 µm, ±40 µm, ±80 µm.

Cutoff Length (L): 0.25mm / 0.8mm / 2.5mm / Auto.

Evaluation Length: 1~5L (selectable).

Tracing Length: 3-7L (selectable).

Digital Filter: RC, PC-RC, Gauss, D-P.

Max. Tracing Length: 17.5mm / 0.71inch.

Min. Tracing Length: 1.3mm / 0.052inch.

Pick-up: Standard pickup TS100, inductive, diamond stylus radius 5µm, angle of stylus 90°.

Accuracy: <±10%.

Repeatability: <6%.

Power: Li-ion battery rechargeable.

Dimensions (mm): 140 × 52 × 48.

Weight (g): 440.

Usage Features

The TIME 3200/3202 is designed for ease of use with its simple operation manual and clear LCD display. Key usage features include:

Portability: Small and light, making it ideal for on-site testing.
Parameter Versatility: Supports a wide range of roughness parameters for diverse applications.
Stylus Position Indicator: Helps in precise positioning of the pickup stylus.
Data Storage: Can store and review up to 15 data groups and graphs directly on the device.
Rk Data and Graphics: Provides Rk data and graphical representations for detailed analysis.
Digital Filters: Offers various digital filters (RC, PC-RC, Gauss, D-P) for signal processing.
Standard Compliance: Conforms to ISO, DIN, ANSI, and JIS standards, ensuring reliable and comparable results.
Optional Accessories: A range of optional accessories enhances its functionality and accuracy:
- Measuring Platform TA 620: Provides a stable base for precise measurements.
- Levelling Table TA630 / TA631: Allows for precise leveling of the workpiece.
- Magnetic Stand: Offers flexible positioning for the gauge.
- Steel Adaptor (L-attachment): For connecting to the platform.
- Printer TA230: A micro printer for immediate hard copies of results.
- Various Pickups:
  - TS110 pickup: For curved surfaces (min curvature radius 3mm), working with TA620.
  - TS120 pickup: For small holes (min 2mm diameter, max depth 9mm).
  - TS130/131 pickup: For deep grooves (TS130: min width 2mm, max depth 3mm; TS131: min width 3mm, max depth 10mm), working with TA620.
  - TS140 right-angled pickup: For grooves and cranks (min width 7.5mm-20mm) and steps (max height 2.5mm), working with TA620.
Software Integration: The TIMESurf software provides advanced capabilities for data analysis, management, and reporting on a PC.

Maintenance Features

Rechargeable Battery: Equipped with a top-quality Li-ion rechargeable battery for extended use.
Robust Design: Built to withstand typical industrial environments.
Calibration Certificate: Comes with a calibration certificate to ensure accuracy and traceability.
Warranty Card: Includes a warranty card for after-sales support.
Instruction Manual: A comprehensive instruction manual is provided for proper operation and basic troubleshooting.

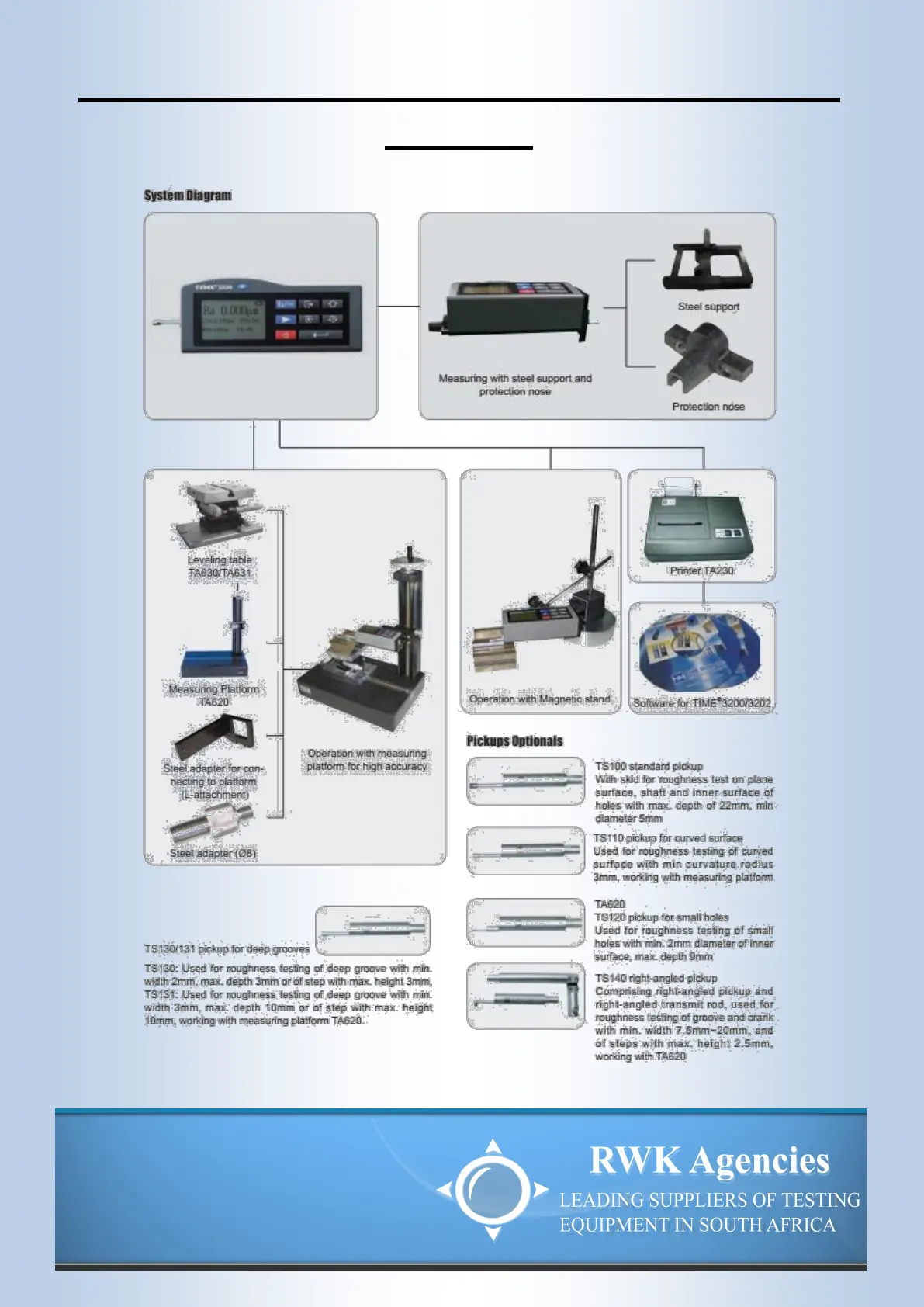

Time 3200 - System Diagram and Pickups; System Components Overview; Optional Pickups Details
