Tinget STE-A - Page 3

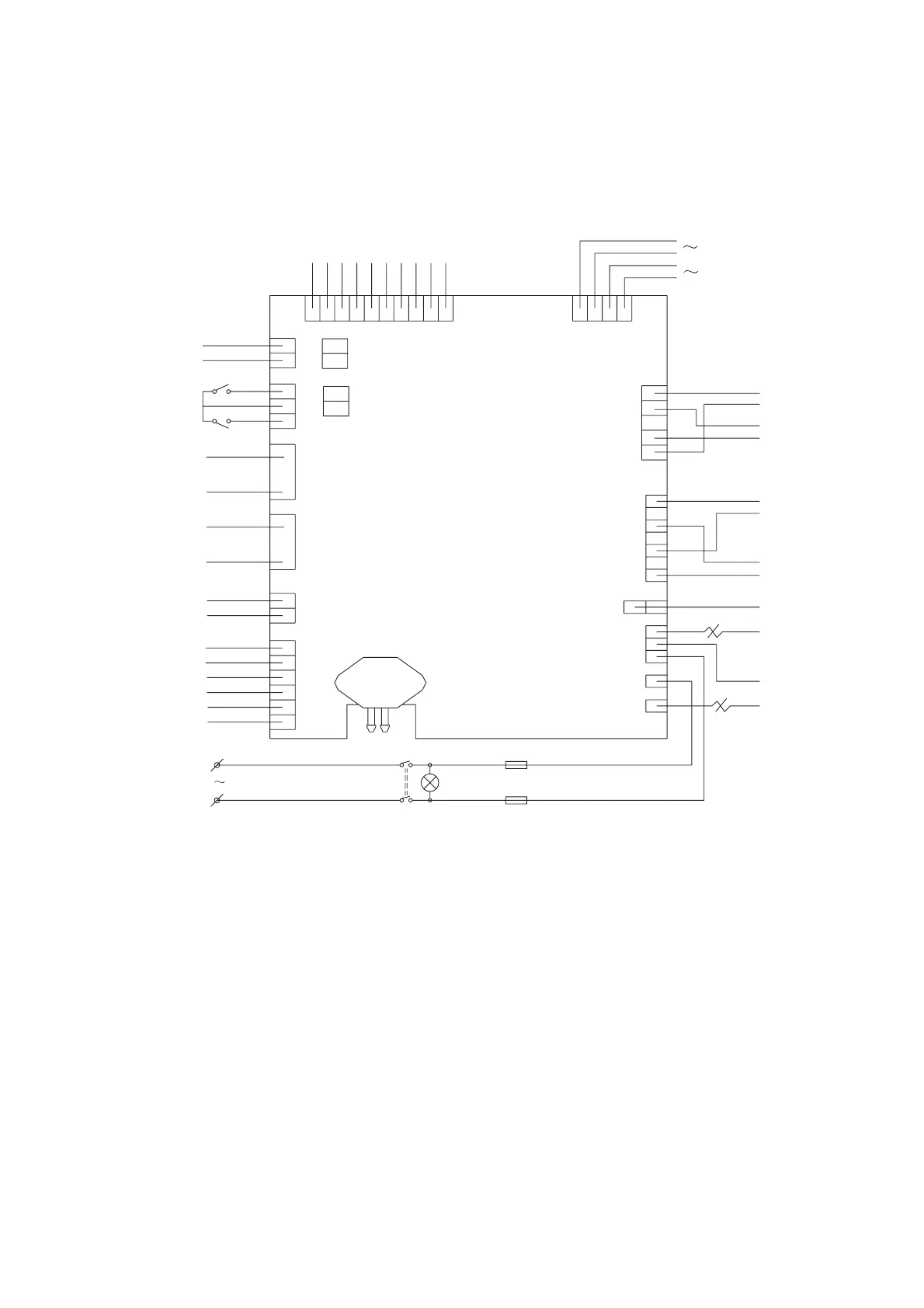

2.ELECTRICAL DRAWING
2
DOOR SWITCH
DISPLAY
DATA LINE
T12A
21V
9V
220V
FAN
OUTPUT
STEAM
HEATER
CHAMBER
HEATER
PRINTER
OUTPUT
PRESSURE SENSOR
T12A
THERMAL
PROTECTOR
THERMAL
PROTECTOR
V1
V4
KEYBOARD
DATA LINE
VACUUM
PUMP
WATER
PUMP
V2
V3 V5
TP 1
TP 3
TP 2
TANK MAX. LEVEL
TANK MIN. LEVEL
PUBLIC
USED WATER TANK
MAX. LEVEL
(~110V)
(T20A for 110V)
(T20A for 110V)
AC220V
(AC110V)
18/23-A
TP1: Steam generator temperature sensor
TP2: Inner temperature sensor of chamber
TP3: Temperature sensor of chamber wall
V1: Air release valve
V2: Air filter valve
V3: Water pump valve
V4: Water release valve
V5: Vacuum pump valve
