manual LAN Controller V3.0 – LANKON-008
www.tinycontrol.eu

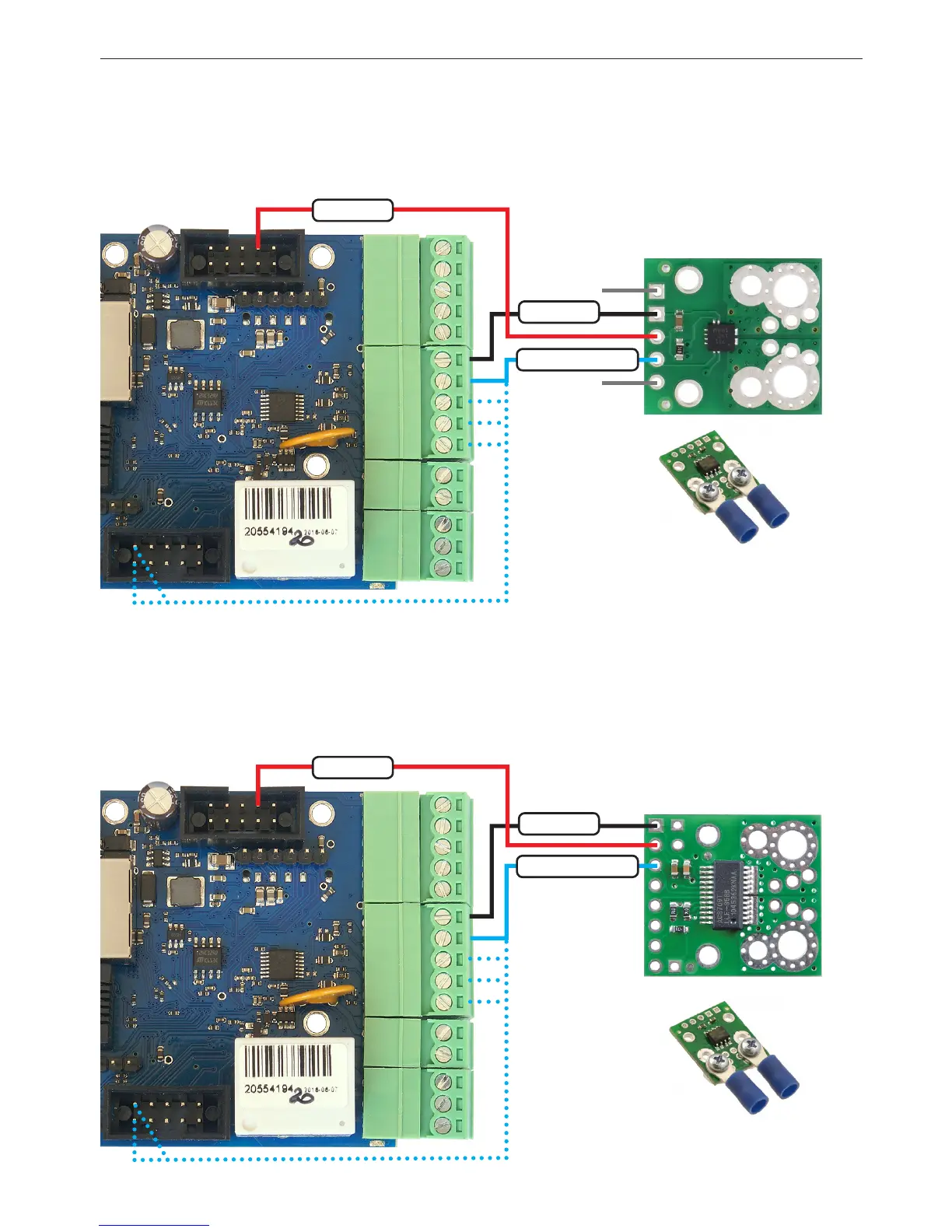

4. Connection the current sensor ACS709
GND
FAULT
Recommended
installation of cables
Recommended
installation of cables
3. Connection the current sensor ACS711ex
IP+
IP+
IP–
IP–
The sensor can measure DC currents to 15A or 30A (depending on the version of the sensor).
It can be connected to all analog inputs: INPA1÷INPA6.
Power supply: + 3.3V (pin 3 of the output IDC10-1).
The sensor can measure DC currents to 75A.
It can be connected to all analog inputs: INPA1÷INPA6.
Power supply: + 3.3V (pin 3 of the output IDC10-1).
GND
GND
Pin3
Pin3
INPA1÷INPA6
INPA1÷INPA6
+3,3V
+3,3V
