setup
operation time
delay setting after which
the loss of movement
can actuated output again
PIR
sensor
Detected
motion
Jumper
setting
Output
low state 0~0,8V high
state 0,8V~20V

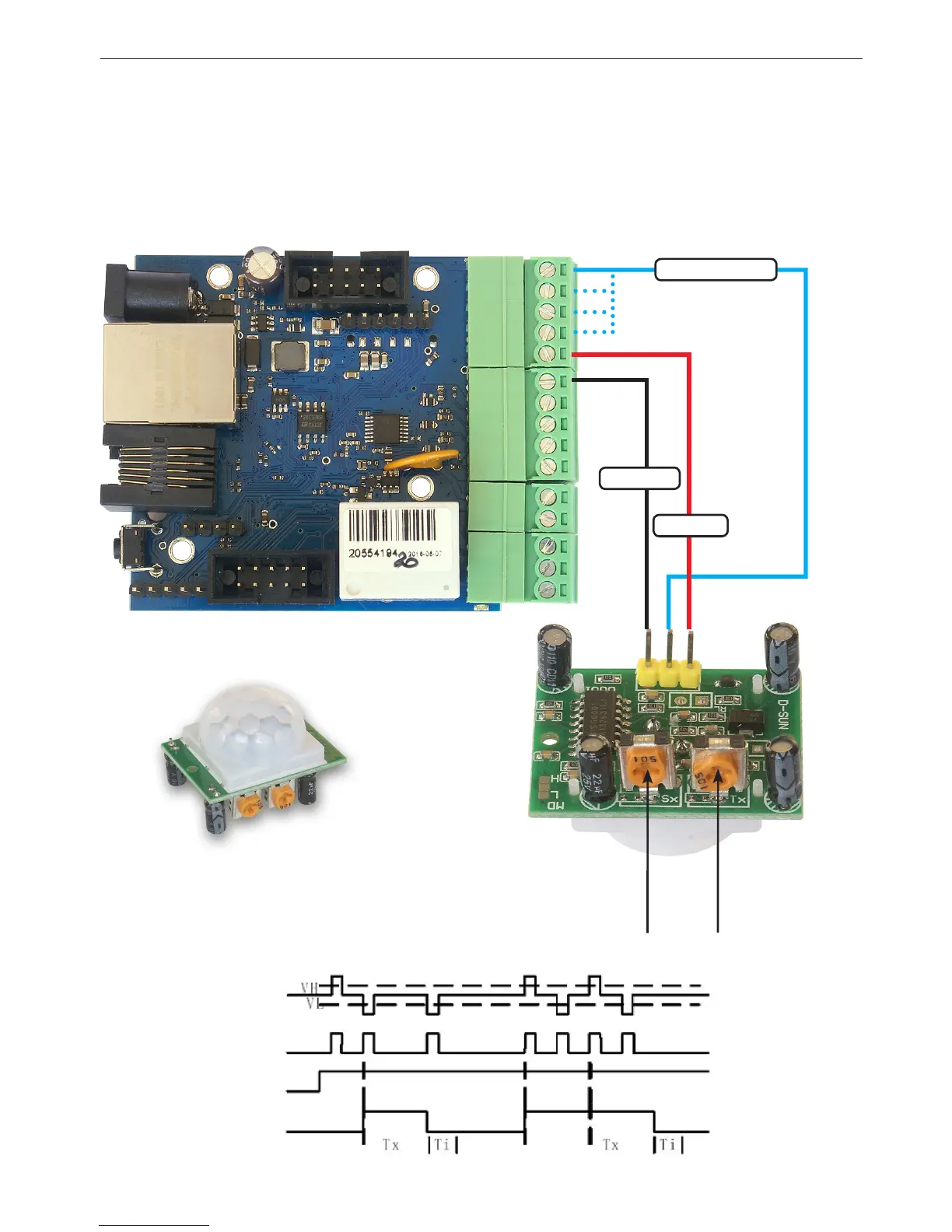

11. Connection of PIR motion/presence sensor
INP1D÷INP4D
+5V
GND
The sensor uses a analysis of the infrared radiation. Low state logic output is a state of rest,
a state indicating the activity is high.
The detector can be adequately linked to + 5V, GND, and one of the digital inputs
INP1D÷ INP4D, and then set its negation.
